ABRACON AWSCR400CRLAC15T3 Ceramic Resonator

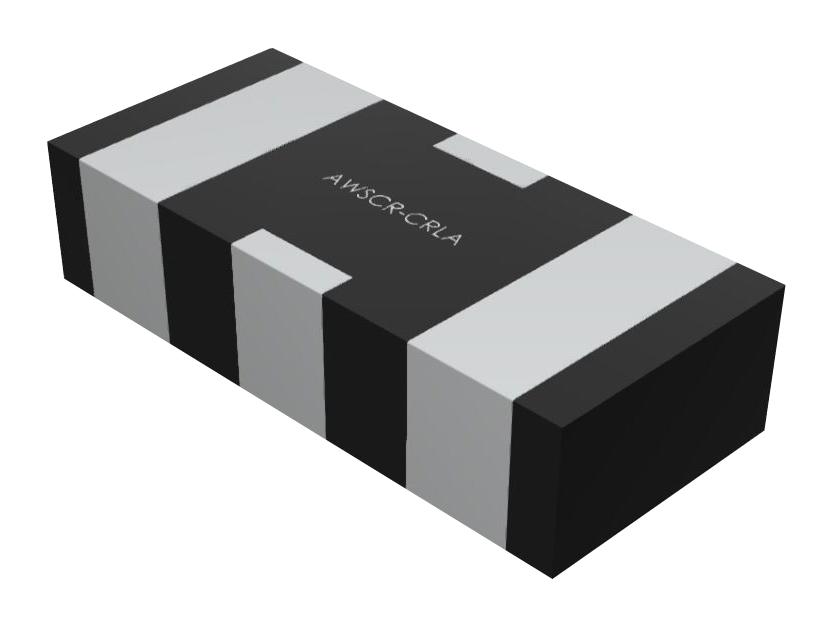

The AWSCR400CRLAC15T3 is a miniature ceramic resonator designed for reliable operation in industrial environments. Featuring a compact size of 4.5 x 2.0 x 1.0 mm and RoHS compliance, it offers stable oscillation frequencies between 4.00 and 12.00 MHz with options for various capacitance values like 15 pF, 22 pF, and 30 pF. Suitable for metering systems, remote control, and microprocessor applications, it has a temperature range from -40°C to +85°C and withstands voltages up to 15 V DC. Its low resonance impedance and built-in capacitance options ensure consistent performance in industrial control and electric appliances, with RoHS compliance and RoHS I certification ensuring environmentally friendly manufacturing.
ABRACON AWSCR400CRLAC15T3 Ceramic Resonator Specifications:
- Size: 4.5 x 2.0 x 1.0 mm
- Frequency Range: 4.00 – 12.00 MHz
- Capacitance Options: 15, 22, 30, 33, 39, 47 pF
- RoHS/RoHS I Compliant
- Lead-free ceramic with exemption (7c)
- Temperature Range: -40°C to +85°C
- Voltage Rating: 15 V DC, up to 50 V peak
- Resonant Impedance: 40 Ω
- Aging Rate: Max 0.2% over 10 years
- Insulation Resistance: 50 MΩ at DC voltage
- Moisture Sensitivity: Not Moisture Sensitive (MSL=1)
- Storage Temperature: -40°C to +85°C
Buy the Abracon AWSCR400CRLAC15T3 – Reliable Ceramic Resonator for Industrial Applications
Purchase the Abracon Ceramic Resonator AWSCR400CRLAC15T3 online today and experience dependable oscillation for industrial control, metering, remote control, and microprocessor applications. Its compact size, stable frequency range from 4 to 12 MHz, and low resonance impedance make it ideal for demanding environments. With RoHS compliance, RoHS I certification, and options for different capacitance values, this resonator ensures performance and environmental safety. Streamline your project procurement by ordering online and get reliable parts with fast delivery and support.
Order your Abracon Series AWSCR400CRLAC15T3 today and ensure stable, reliable oscillation in your industrial control, metering, and microprocessor projects.
