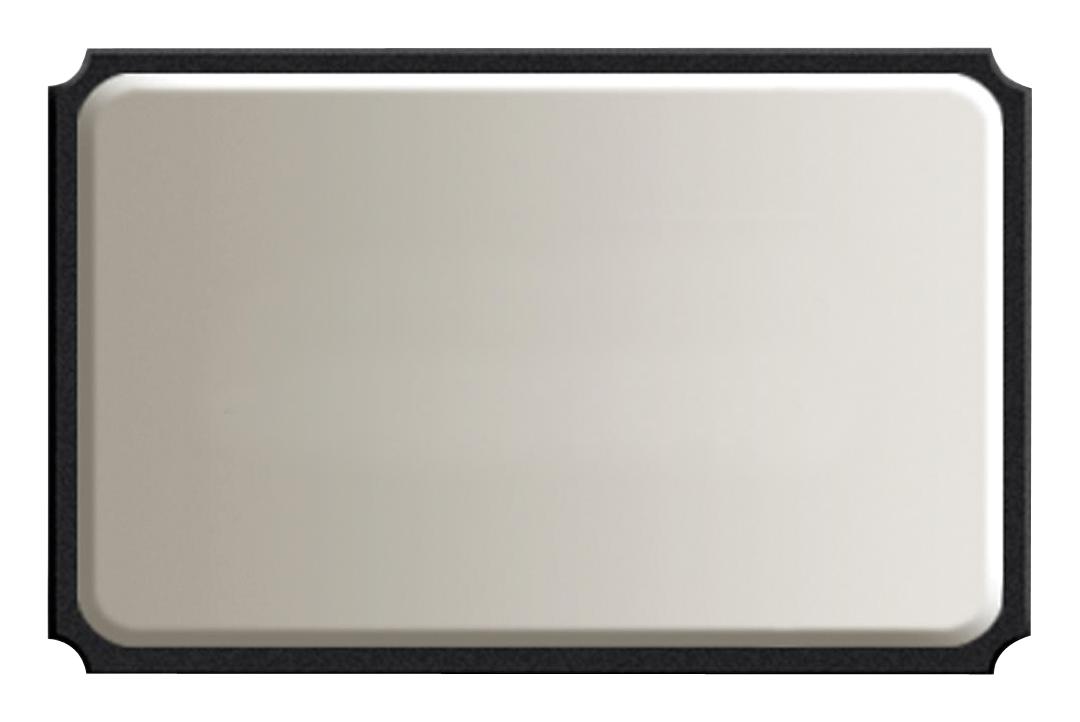

ABRACON ABM3B27120MHZ10D1GT Ceramic SMD Crystal
The ABRACON ABM3B series crystal oscillators are ceramic SMD components designed for precision timing applications. Featuring a compact form factor and robust construction, these crystals are suitable for cellular telephones, communication equipment, and high-density applications. They offer fundamental and 3rd overtone operation with tight stability and are designed for reliable performance in various environments. The crystal's ceramic package and metal lid contribute to its high precision and reliability, making it a versatile choice for demanding electronic designs.
ABRACON ABM3B27120MHZ10D1GT Ceramic SMD Crystal Specifications:
- Frequency Range: 8.0MHz - 50.0MHz (Fundamental) / 50.1MHz - 125MHz (3rd overtone)
- Operation Mode: Fundamental or 3rd overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Frequency Tolerance @ 25°C: ±50 ppm max.
- Frequency Stability: ±50 ppm max. over operating temperature
- Equivalent Series Resistance: See table 1
- Shunt Capacitance (C0): 7 pF max.
- Load Capacitance (CL): 18 pF
- Drive Level: 100 µW max, 10 µW typical
- Aging (First Year): ±3°C ± 5ppm max. @ 25°C
- Insulation Resistance: 500 MΩ min at 100Vdc ± 15 V
- ESR (8.000 - 9.999 MHz): 200 Ω max
- ESR (10.000 - 11.999 MHz): 100 Ω max
- ESR (12.000 - 15.999 MHz): 70 Ω max
- ESR (16.000 - 50.000 MHz): 50 Ω max
- ESR (50.001 - 80.000 MHz): 60 Ω max
- ESR (80.001 - 125.000 MHz): 80 Ω max
- Dimensions: 5.0 x 3.2 x 1.1mm
