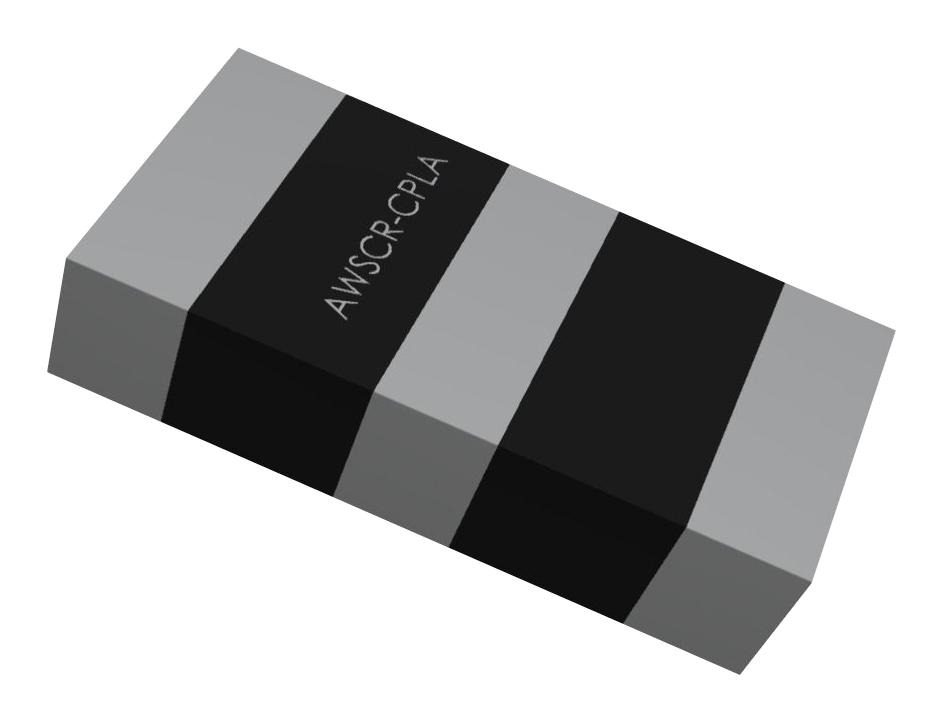

ABRACON AWSCR1000CPLAC30T4 Miniature Ceramic Resonator
The ABRACON AWSCR-10.00CPLA-C30-T4 is a miniature ceramic resonator offering a compact and reliable solution for frequency control in a wide range of applications. Its low resonance impedance and extended operating temperature range make it suitable for demanding industrial environments. The resonator is RoHS compliant, ensuring environmental responsibility. Typical applications include metering systems, remote control devices, microprocessor circuits, and industrial control systems. Proper handling and soldering techniques are recommended to ensure optimal performance and longevity.
ABRACON AWSCR1000CPLAC30T4 Miniature Ceramic Resonator Specifications:
- Frequency Range: 1.84 - 12.00 MHz
- Resonant Impedance (Ro): 100 Ω (1.84 MHz – 2.99 MHz), 50 Ω (3.00 MHz – 3.49 MHz), 30 Ω (3.50 MHz – 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 30 pF (1.84 MHz – 8.00 MHz, ±20%), Other options: 10, 15, 22, 33, 39, 47 pF, 15 pF (8.01 MHz – 12.00 MHz, ±20%), Other options: 10, 22, 30, 33, 39, 47 pF
- Frequency Tolerance: -0.5% to +0.5%
- Frequency Stability: -0.3% (2.00-8.00 MHz), -0.2% (8.01-12.00 MHz)
- Withstanding Voltage: 100 V DC, 5 s max
- Voltage Rating: (1) 6 V D.C., (2) 15 Vp-p A.C.
- Insulation Resistance (Ri): 500 MΩ (10V, 1 min)
- Operation Temperature: -40 ºC to +85 ºC
- Storage Temperature: -55 ºC to +85 ºC
- Aging Rate (Fosc): -0.1% to +0.1% (From Initial value)
- Dimensions: 6.0 x 3.0 x 1.8 mm
- Packaging: 4000 pcs/reel
