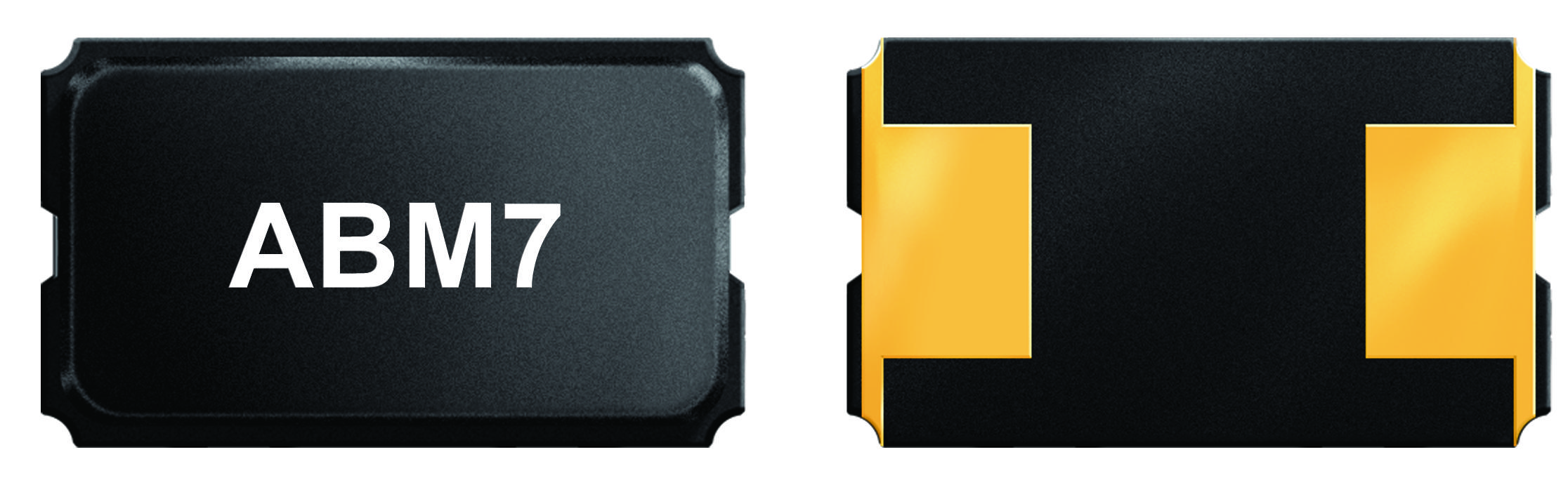

ABRACON ABM7221184MHZD2YT Crystal Oscillator
This compact ceramic SMD micro miniature crystal oscillator ensures high reliability and precise timing for electronic circuits in industrial, communication, and computer equipment. Its small size (1.4 mm max. height) and wide temperature range (-40°C to +125°C, depending on model) make it ideal for high-density applications. Designed with superior heat-resistant glass sealing, it offers excellent stability at 85-90 words. Suitable for demanding environments, it guarantees consistent oscillation frequency, low equivalent series resistance, and RoHS compliance, making it perfect for modern electronic systems requiring precise and stable clock signals.
ABRACON ABM7221184MHZD2YT Crystal Oscillator Specifications:
- Package Type: Ceramics SMD Micro Miniature
- Dimensions: Length 6.0±0.2 mm, Width 3.5±0.2 mm, Height 1.4 mm max.
- Material: Ceramic with heat-resistant glass sealing
- Frequency Range: 8.000 MHz to 80.000 MHz, fundamental and overtone modes
- Frequency Stability: ±50 to ±70 ppm over -40°C to +125°C, depending on model
- Operation Temperature Range: from -55°C to +125°C with specific models
- Equivalent Series Resistance (ESR): varies by frequency, max. 70 ohms
- Insulation Resistance: >500 MΩ at 100 V DC
- Frequency Tolerance: ±50 ppm (typical), consult for exact values
- RoHS Compliant: Yes
- Application: Computer, communication, industrial, high-density electronics
Buy the Ceramico SMD Micro Miniature oscillator – Reliable Timing for Industrial Applications
Order the ABRACON crystal oscillator online today for high-precision timing in industrial, communication, and computing applications. Its compact, 1.4 mm height design fits high-density PCB layouts and ensures stable performance across wide temperature ranges, from -55°C to +125°C. Manufactured with high-reliability ceramic packages and RoHS compliance, this oscillator offers excellent frequency stability and low ESR. Ideal for demanding environments, it guarantees consistent clock signals essential for modern electronic systems requiring superior synchronization and performance.
Get ABRACON micro miniature crystal oscillator today—designed for precise timing and high reliability in demanding electronic devices.
Frequently Asked Questions
Where can I buy ABRACON ABM7221184MHZD2YT?
You can click on the BUY or RFQ button to purchase ABM7221184MHZD2YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM7221184MHZD2YT?
You can download the ABM7221184MHZD2YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM7221184MHZD2YT?
ABRACON
