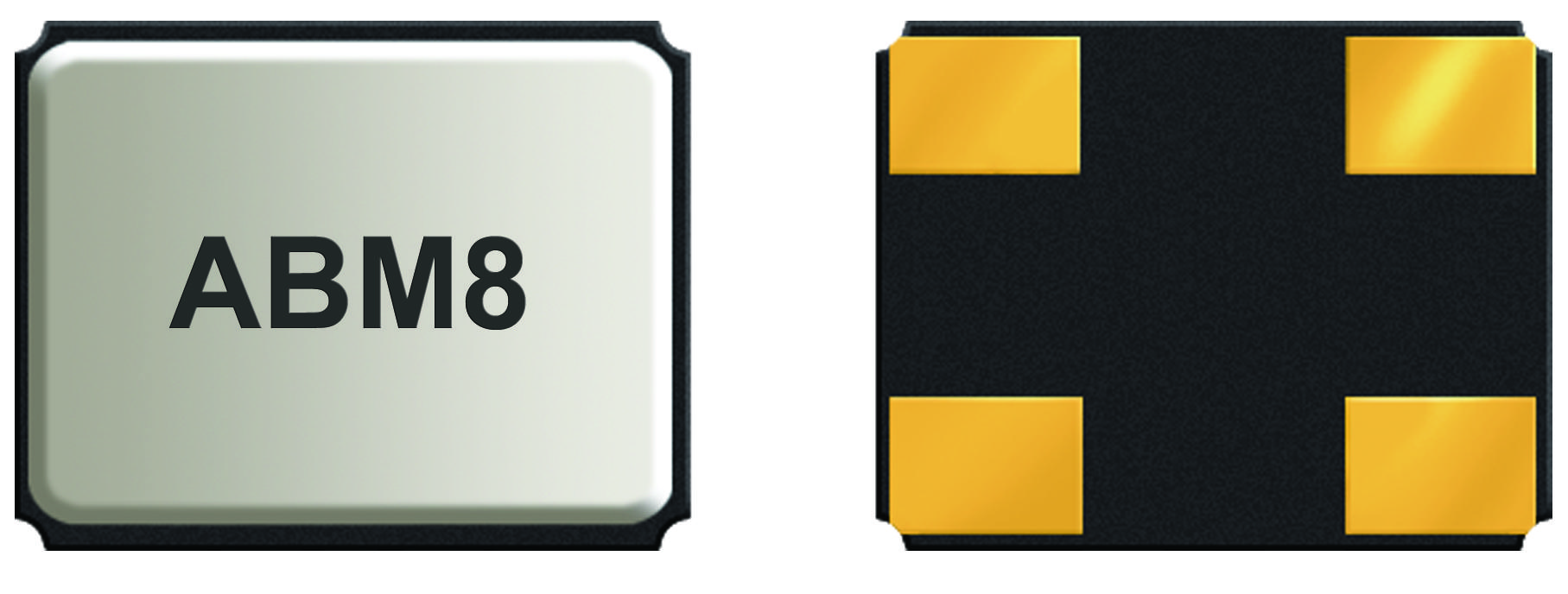

ABRACON ABM824000MHZ12B1UT Miniature Crystal Oscillator
This ultra miniature ceramic SMD crystal offers high reliability and stability, ideal for thin, high-density communication, test equipment, and modem applications. Sealed hermetically for moisture resistance, it operates over a frequency range of 10 to 125 MHz with tight tolerances and low ESR, ensuring precise timing signals. Its compact size 3.2x2.5x0.8mm makes it suitable for space-constrained designs, including wireless devices. Compliant with RoHS, it supports RoHS reflow, and is built for fundamental and overtone modes, providing versatile timing solutions for industrial electronics.
ABRACON ABM824000MHZ12B1UT Miniature Crystal Oscillator Specifications:
- Size: 3.2x2.5x0.8mm
- Frequency Range: 10.000 - 125.000 MHz; Standard frequencies include 64, 66, 66.6666, 75, 80, 98.304, 100, 125 MHz
- Operation Mode: Fundamental and 3rd overtone modes, with operation temperatures from -10°C to +60°C
- Frequency Tolerance: ±50 ppm at +25°C, with options up to ±50 ppm
- Frequency Stability: ±50 ppm over temperature range
- Equivalent Series Resistance (ESR): 30 - 80 ohms depending on frequency
- Shunt Capacitance: 7.0 pF, Load Capacitance: 18.0 pF
- Aging: 3 ppm first year
- Insulation Resistance: 500 MΩ at 100Vdc
- Storage Temperature: -55°C to +125°C
- Reflow Profile: Peak temperature 260°C, time 10 seconds maximum
- RoHS Compliant, Hermetically Sealed, Moisture Sensitive Level
- Material: Ceramic crystal with sealed package for moisture resistance
Buy the Abracon ABM824000MHZ12B1UT – Reliable Crystal for Industrial Applications
Enhance your electronic designs with this compact ceramic crystal oscillator, measuring 3.2x2.5x0.8mm, offering high stability, low ESR, and RoHS compliance. Perfect for space-constrained, high-density, and moisture-sensitive applications in communication, test equipment, and wireless tech. Its hermetically sealed package ensures consistent performance over wide temperature ranges, making it ideal for industrial and commercial use. Easily integrate this reliable component into your system for accurate, long-term timing solutions. Purchase online today for quick delivery and superior performance.
Buy Abracon ABM824000MHZ12B1UT now and experience unmatched reliability and precise timing for demanding industrial applications.
Frequently Asked Questions
Where can I buy ABRACON ABM824000MHZ12B1UT?
You can click on the BUY or RFQ button to purchase ABM824000MHZ12B1UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM824000MHZ12B1UT?
You can download the ABM824000MHZ12B1UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM824000MHZ12B1UT?
ABRACON
