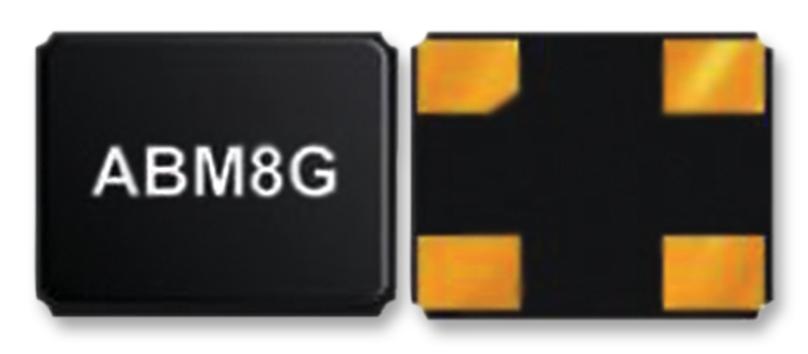

ABRACON ABM8G12000MHZ18D2YT Ceramic Crystal
The ABM8G12000MHZ18D2YT is an ultra mini ceramic crystal designed for high-density applications including modems, communication, and test equipment. It features a hermetically sealed glass package that ensures high reliability and high-temperature operation, making it suitable for thin, space-constrained devices. Operating in the fundamental mode with a frequency range of 12.000MHz, it is RoHS II compliant, providing exceptional stability and low power consumption. Its small size of 3.2x2.5x1.0mm and low profile allow versatile integration into compact electronic systems. Suitable for applications demanding precise frequency standards and reliable performance.
ABRACON ABM8G12000MHZ18D2YT Ceramic Crystal Specifications:
- Frequency Range: 12.000MHz, 12.001MHz ~ 20.000MHz, 20.001MHz ~ 28.000MHz, 28.001MHz ~ 50.000MHz
- Operating Temperature: -10°C to +70°C (option for tighter stability available)
- Frequency Tolerance @+25°C: ±15 ppm (standard), ±10 ppm (preferred options)
- Frequency Stability: ±15 ppm over -10°C to +70°C (custom options available)
- Equivalent Series Resistance: data varies with frequency and load, typically low
- Shunt Capacitance: not specified (consult datasheet for details)
- Load Capacitance: 7 pF minimum, specify in application
- Drive Level: specified per application, general recommendations given
- Insulation Resistance: >100 MΩ at 100Vdc
- Dimensions: 3.2 x 2.5 x 1.0 mm, hermetically sealed glass package
- RoHS II Compliant: Yes, with Pb in glass exemption 7(c)-I
- Reflow capable, suitable for leaded and lead-free processes
- Packaging: Tape & reel (1,000 or 3,000 pieces per reel)
Buy the Abracon Series ABM8G 12 MHz Ceramic Crystal: ABM8G12000MHZ18D2YT
Order the Abracon Ceramic Crystal ABM8G12000MHZ18D2YT online today to ensure your high-precision, space-efficient electronics perform reliably. This hermetically sealed crystal offers excellent stability, low ESR, and RoHS compliance, suitable for demanding applications like modems, communication devices, and test equipment. With its compact size of 3.2x2.5x1.0mm, ease of reflow soldering, and high-temperature tolerance, this crystal guarantees consistent frequency standards. Buy now to enhance your project's stability and reliability with this cost-effective, miniaturized solution.
Buy Abracon ABM8G12000MHZ18D2YT now and experience unmatched reliability and performance in high-density, space-saving electronic designs.
Frequently Asked Questions
Where can I buy ABRACON ABM8G12000MHZ18D2YT?
You can click on the BUY or RFQ button to purchase ABM8G12000MHZ18D2YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G12000MHZ18D2YT?
You can download the ABM8G12000MHZ18D2YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G12000MHZ18D2YT?
ABRACON
