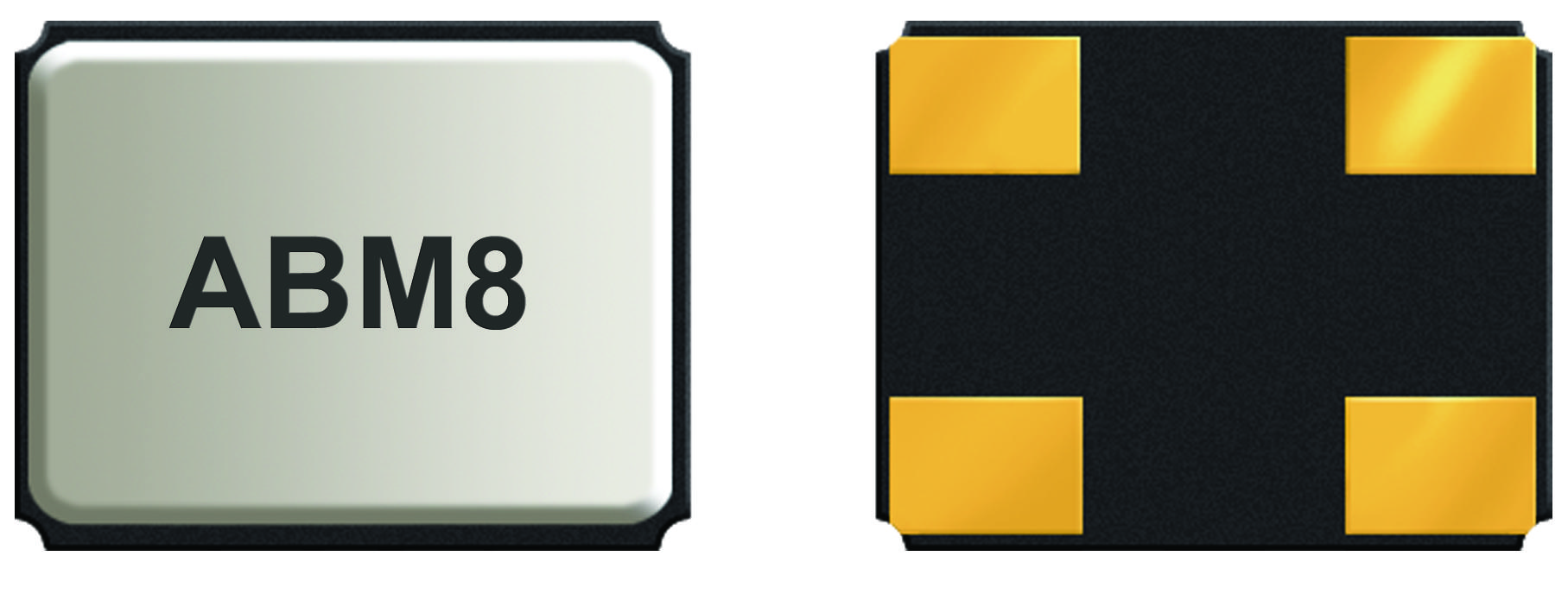

ABRACON ABM8G24000MHZ18D2YT Surface-mount Crystal Oscillator
The ABM8G-24.000MHZ-18-D2Y-T is a high-reliability, ultra-compact surface-mount crystal oscillator measuring 3.2 x 2.5 x 1 mm. It features a glass-sealed design with a frequency of 24 MHz, offering tight tolerance and stability with a maximum deviation of 20 to 30 ppm. Suitable for use in modems, communication equipment, test and measurement devices, PMCIA, wireless applications, and high-density electronic systems. It is capable of withstanding high temperatures and is IR reflow compatible. Key specifications include a maximum equivalent series resistance of 60Ω, shunt capacitance up to 5pF, maximum drive level of 100µW, and minimum insulation resistance of 500MΩ at 100VDC.
ABRACON ABM8G24000MHZ18D2YT Surface-mount Crystal Oscillator Specifications:
- Frequency Range: 12.000MHz - 50.000MHz
- Dimensions: 3.2 x 2.5 x 1.0 mm
- Sealed Glass Package for High Reliability
- Frequency Stability: ±20 to ±30 ppm from -55°C to +125°C
- Max ESR: 60Ω
- Shunt Capacitance: Up to 5pF
- Drive Level: 100µW max.
- Insulation Resistance: 500MΩ at 100VDC
- RoHS compliant, Pb in glass exemption 7(c)-I
- Reflow Capable with profiles matching industry standards
Buy the Buy Abacon Crystal Oscillator Part Number ABM8G24000MHZ18D2YT Online
Discover the convenience of purchasing the Abacon Series ABM8G crystal oscillator online. With a compact size of 3.2 x 2.5 x 1 mm, it provides high stability, quick reflow capability, and dependable performance in demanding electronic applications. Ideal for modems, wireless devices, and test equipment, it features a glass-sealed package ensuring durability and reliability. Order now to integrate this precise, RoHS-compliant oscillator into your designs with ease and confidence for high-performance projects.
Order your Abacon Series ABM8G24000MHZ18D2YT today and enhance your high-density electronic and communication systems with reliable, compact crystal oscillators.
Frequently Asked Questions
Where can I buy ABRACON ABM8G24000MHZ18D2YT?
You can click on the BUY or RFQ button to purchase ABM8G24000MHZ18D2YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G24000MHZ18D2YT?
You can download the ABM8G24000MHZ18D2YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G24000MHZ18D2YT?
ABRACON
