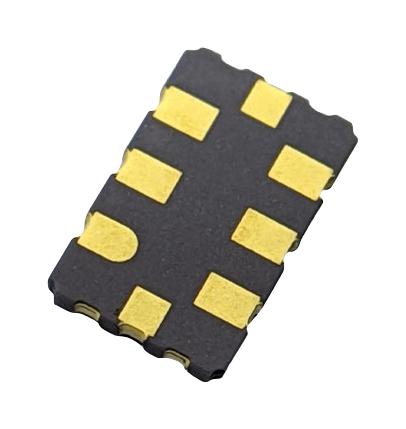

ABRACON ASGTX5DAF11562500 High-Precision TCXO
The Jitter Optimized Factory Programmable TCXO from the ASGTXS Series provides ultra-low RMS phase jitter as low as 211 femtoseconds at 1 GHz, with excellent frequency stability over temperature and long-term aging. Available in multiple output types including LVPECL, LVDS, HCSL, and CML, it covers a frequency range from 15 MHz up to 2100 MHz, with customizable options for stability and power consumption. Its compact 5.0 x 3.2 mm footprint makes it suitable for high-performance networking, datacenter, RF systems, and communication applications, ensuring precision timing and low phase noise.
ABRACON ASGTX5DAF11562500 High-Precision TCXO Specifications:
- Size: 5.0 x 3.2 x 1.5 mm
- Frequency Range: 15 MHz to 2100 MHz
- Jitter: RMS 211 - 332 femtoseconds depending on frequency
- Supply Voltage: 1.8V, 2.5V, 3.3V (option dependent)
- Output Types: LVPECL, LVDS, HCSL, CML
- Frequency Stability over Temperature: ±43 ppm to ±50 ppm
- Aging over 20 years: ±7 ppm
- Phase Noise: -225 to -350 dBc/Hz at 12kHz to 20MHz offset
- Operating Temperature Range: -40°C to +85°C
- Total Stability (All-Inclusive): ±1150 ppm over 20 years
- Power Consumption: approx. 75 mA at 3.3V supply
- Package: RoHS compliant, 5.0 x 3.2 mm footprint
- MSL: Level 1, suitable for automated assembly
- Additional features include programmable frequency, low power, and multiple output standards for versatile integration.
Buy the Abracon Series ASGTXS TCXO: ASGTX5DAF11562500
Order the Abracon ASGTX5 series high-precision TCXO today for exceptional frequency stability and ultra-low jitter in a compact package. Perfect for demanding applications like networking, datacenter, RF systems, and test & measurement equipment. With broad frequency options and multiple output standards, it ensures your systems run flawlessly with precise timing. Buy online now and benefit from fast delivery, reliable quality, and technical support to keep your projects on schedule and optimized for performance.
Buy Abracon ASGTX5DAF11562500 now and experience unmatched reliability, ultra-low jitter, and precise timing for your high-performance communication and data systems.
Frequently Asked Questions
Where can I buy ABRACON ASGTX5DAF11562500?
You can click on the BUY or RFQ button to purchase ASGTX5DAF11562500 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASGTX5DAF11562500?
You can download the ASGTX5DAF11562500 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASGTX5DAF11562500?
ABRACON
