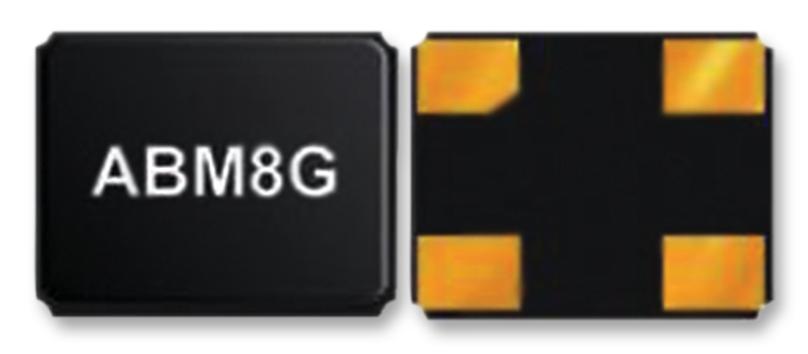

ABRACON ABM8G25000MHZ4YT3 Miniature SMD Crystal
The ABM8G series is a high-reliability ultra-miniature ceramic glass sealed SMD crystal designed for high-density applications. Measuring 3.2x2.5x1.0mm, it offers exceptional stability, low height, and RoHS compliance. Suitable for modems, communication, wireless, and test equipment, this crystal features a glass sealed package, tight frequency tolerance, and IR reflow capability. It operates reliably over -55°C to +125°C and maintains stable frequency with low series resistance. Ideal for space-constrained, high-performance electronic devices requiring precise timing and high temperature operation.
ABRACON ABM8G25000MHZ4YT3 Miniature SMD Crystal Specifications:
- Dimensions: 3.2x2.5x1.0mm
- Frequency Range: 12.000MHz - 50.000MHz
- RoHS Compliant, Pb in glass exemption 7 (c)-I
- Temperature Stability: -55°C to +125°C
- Series Resistance: varies with frequency, up to 120Ω
- Drive Level: 100nW max.
- Insulation Resistance: 500MΩ at 100V dc
- Frequency Stability at +25°C: ±3ppm max.
- Equivalent Series Resistance: varies with frequency
- Shunt Capacitance: 5.0pF max.
- Material: Glass sealed package, ceramic core
- Reflow capable with specified profiles
- Operating Voltage: Typical values around 3.3V
- Clock Output Stability: Maintains high reliability over wide temperature range
- Packaging: Tape and reel (1,000 or 3,000 pieces/reel)
Buy the ABRACON ABM8G – Reliable High-Precision Crystal for Industrial Applications
Enhance your electronic designs with the high-reliability ABRACON ABM8G crystal. Designed for space-constrained, high-performance applications, this ultra-miniature SMD crystal offers precise frequency stability, RoHS compliance, and reliable operation from -55°C to +125°C. Its glass sealed package ensures durability in harsh environments, making it ideal for modems, wireless, and communication equipment. Purchase online today to benefit from fast delivery, competitive pricing, and trusted quality for your industrial and consumer electronics.
Buy ABRACON ABM8G now and experience unmatched reliability and performance in your high-density electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABM8G25000MHZ4YT3?
You can click on the BUY or RFQ button to purchase ABM8G25000MHZ4YT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G25000MHZ4YT3?
You can download the ABM8G25000MHZ4YT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G25000MHZ4YT3?
ABRACON
