ABRACON ABM8G32000MHZB4YT SMD Crystal
The Ultra Miniature Ceramic Glass Sealed SMD Crystal is designed for high-density applications such as modems, communication equipment, and wireless devices. It measures 3.2x2.5x1.0mm, features a glass-sealed package for high reliability and high-temperature operation, and offers tight frequency stability with low power consumption. Suitable for reflow soldering, this RoHS-compliant crystal ensures precise performance in compact electronic assemblies. Its low height makes it optimal for thin devices, providing stability and reliability in critical electronic systems with frequencies ranging from 12MHz to 50MHz.
ABRACON ABM8G32000MHZB4YT SMD Crystal Specifications:
- Dimensions: 3.2x2.5x1.0mm
- Frequency Range: 12.000MHz - 50.000MHz
- Package: Glass sealed SMD
- RoHS compliant, Pb in glass exemption 7 (c)-I
- Reflow capable with characterized profiles
- Frequency stability over -10°C to +60°C (see options for other temp ranges)
- Load Capacitance: 10pF (see options)
- Tolerance at +25°C: ±50ppm to ±100ppm
- Insulation Resistance: 500MΩ at 100V
- Shunt Capacitance: 5.0pF max.
- Drive Level: 100nW max.
- Temperature Range: -55°C to +125°C
- Standard tape and reel packaging available with 1,000 or 3,000 units per reel
- Application: High-density, reliable, and compact electronic circuits

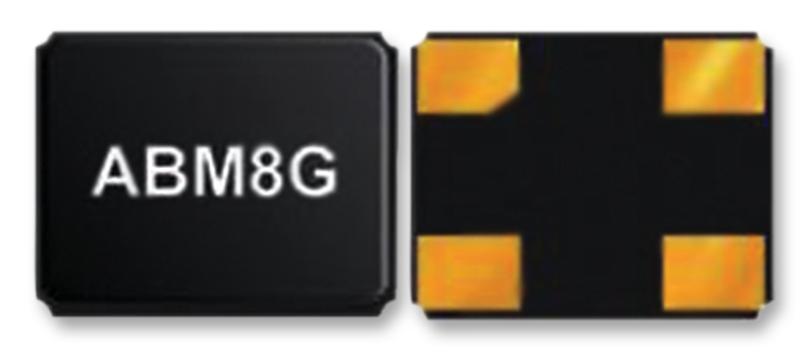

Buy the Buy Abrecón Ultra Miniature Ceramic Glass Sealed SMD Crystal Part Number ABM8G32000MHZB4YT Online
Experience reliable, high-precision timing with the Abrecón Ultra Miniature Ceramic Glass Sealed SMD Crystal. Measuring only 3.2x2.5x1.0mm, it offers excellent stability, temperature tolerance, and vibration resistance, making it ideal for compact wireless, communication, and test equipment. Its glass-sealed package guarantees durability under high temperatures and demanding environments. This RoHS-compliant crystal is reflow-compatible, suitable for automated assembly, and available in convenient tape and reel packaging. Upgrade your electronic designs now with this compact, dependable frequency control solution designed for high-density applications.
Order your Abrecón Series ABM8G32000MHZB4YT SMD crystal today and ensure reliable, high-performance operation in your compact electronic devices.
Frequently Asked Questions
Where can I buy ABRACON ABM8G32000MHZB4YT?
You can click on the BUY or RFQ button to purchase ABM8G32000MHZB4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G32000MHZB4YT?
You can download the ABM8G32000MHZB4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G32000MHZB4YT?
ABRACON
