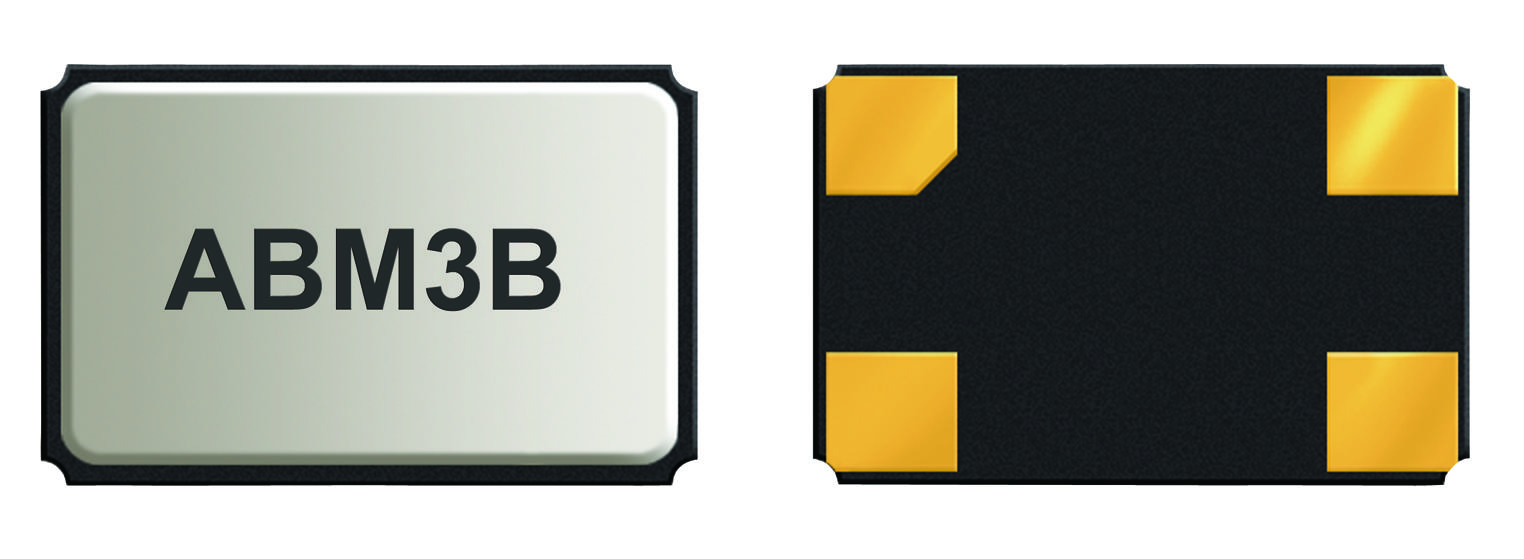

ABRACON ABM3B18432MHZB2T Ceramic SMD Crystal
The ABRACON ABM3B-18.432MHZ-B2-T is a high-performance ceramic SMD crystal designed for a wide range of applications including cellular telephones, communication equipment, and high-density wireless devices. Its ceramic package and metal lid ensure high precision and reliability. The crystal operates in fundamental mode and is suitable for reflow processes, offering tight stability and excellent performance in demanding environments. It is RoHS compliant and available in various options for frequency tolerance, stability, and operating temperature.
ABRACON ABM3B18432MHZB2T Ceramic SMD Crystal Specifications:
- Frequency Range: 8.0MHz - 50.0MHz (Fundamental), 50.1MHz - 125MHz (3rd overtone)
- Operation Mode: Fundamental or 3rd overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Frequency Tolerance @ 25°C: ±50 ppm max.
- Frequency Stability: ±50 ppm max. over operating temperature
- Equivalent Series Resistance: See table 1
- Shunt Capacitance (C0): 7 pF max.
- Load Capacitance (CL): 18 pF
- Drive Level: 100 µW max., 10 µW typical
- Aging (First Year): ±3°C ± 5ppm max. @ 25°C
- Insulation Resistance: 500 MΩ min at 100Vdc ± 15 V
- Dimensions: 5.0 x 3.2 x 1.1mm
- ESR (max): 200Ω (8.000 - 9.999 MHz), 100Ω (10.000 - 11.999 MHz), 70Ω (12.000 - 15.999 MHz), 50Ω (16.000 - 50.000 MHz), 60Ω (50.001 - 80.000 MHz), 80Ω (80.001 - 125.000 MHz)
Buy the ABM3B-18.432MHZ-B2-T ABRACON Ceramic SMD Crystal | myMectronic
Securely purchase the ABRACON ABM3B-18.432MHZ-B2-T online for reliable crystal oscillator solutions.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM3B18432MHZB2T?
You can click on the BUY or RFQ button to purchase ABM3B18432MHZB2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM3B18432MHZB2T?
You can download the ABM3B18432MHZB2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM3B18432MHZB2T?
ABRACON
