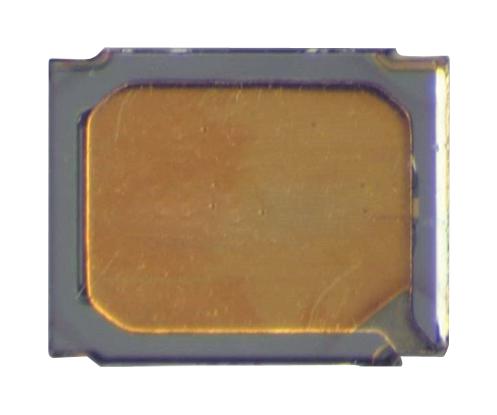

ABRACON ABS04W32768KHZ4D2T5 IoT Crystal
This 32.768kHz IoT optimized SMD crystal offers an industry’s smallest tuning fork package measuring 1.20x 1.00 x 0.35 mm. It is ideal for space-constrained IoT, wearables, wireless modules, Bluetooth, M2M, and NFC applications. The crystal features low ESR, high stability over temperature (-40°C to +85°C), and a low profile to fit height-constrained designs. It provides ±10 ppm tolerance, excellent start-up performance, and energy efficiency, making it suitable for ultra-low power microcontrollers, SoCs, and transceivers.
ABRACON ABS04W32768KHZ4D2T5 IoT Crystal Specifications:
- Frequency: 32.768 kHz
- Operating Mode: Flexural Mode (Tuning Fork)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance @ +25°C: ±10 ppm
- Reflow Temperature: Up to 260°C
- Load Capacitance: 40 pF (options 12.5pF, 6pF, 9pF, 4pF, etc.)
- Equivalent Series Resistance (ESR): <75 kΩ to <130 kΩ (based on load)
- Shunt Capacitance: 15 pF
- Motional Capacitance: 6.50 fF
- Motional Inductance: 3,800,000 μH
- Drive Level: 0.1 μW
- Q Value: 8,000 to 10,000
- Aging (First Year): ±3 ppm
- Aging (Over 10 years): ±15 ppm
- Insulation Resistance: 500 MΩ @ 100 V
- Size: 1.20 x 1.00 x 0.35 mm
- RoHS Compliant: Yes
- Packaging: Tape and Reel (5,000 pcs/reel)
Buy the Abracon Series 32.768kHz IoT Optimized SMD Crystal: ABS04W32768KHZ4D2T5
Purchase the Abracon ABS04W32768KHZ4D2T5 crystal today to ensure reliable timing performance in your IoT, wearable, and wireless projects. Designed for space-constrained designs, it features a compact 1.20 x 1.00 x 0.35 mm package, low ESR, high stability, and ±10 ppm tolerance. Ideal for ultra-low power microcontrollers and Bluetooth modules, this crystal offers excellent start-up performance and energy efficiency. Buy online now for quality, precision, and reliability in your electronic timing needs.
Get Abracon ABS04W32768KHZ4D2T5 today—built for precision, low power, and space-saving performance in IoT and wearable applications.
Frequently Asked Questions
Where can I buy ABRACON ABS04W32768KHZ4D2T5?
You can click on the BUY or RFQ button to purchase ABS04W32768KHZ4D2T5 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABS04W32768KHZ4D2T5?
You can download the ABS04W32768KHZ4D2T5 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABS04W32768KHZ4D2T5?
ABRACON
