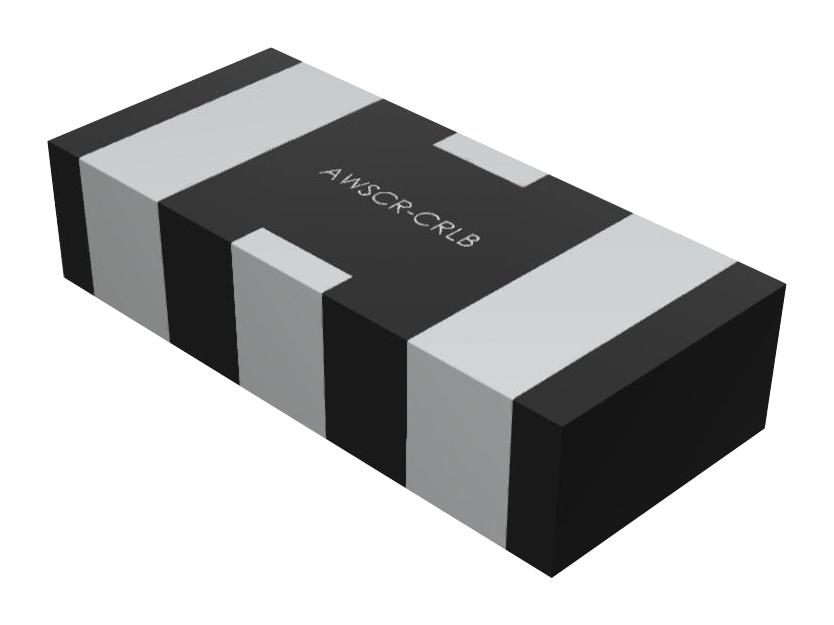

ABRACON AWSCR400CRLBC15T3 Oscillator Crystal
The AWSCR400CRLBC15T3 is a high-performance crystal resonator designed for oscillator circuits, with a frequency range of 4.00 to 12.00 MHz. Measuring 4.5 x 2.0 x 1.0 mm, it features RoHS compliance, a standard built-in capacitance of 15 pF, and options for 10, 22, 30, 33, 39, and 47 pF. It operates reliably within -40°C to +125°C, offers low resonance impedance, and can withstand voltages up to 50 V DC. Suitable for metering systems, microprocessor, and industrial control applications, it has a long aging rate and stable frequency drift over ten years.
ABRACON AWSCR400CRLBC15T3 Oscillator Crystal Specifications:
- Dimensions: 4.5 x 2.0 x 1.0 mm
- Frequency Range: 4.00 - 12.00 MHz
- Standard Built-in Capacitance: 15 pF
- Other Capacitance Options: 10, 22, 30, 33, 39, 47 pF
- RoHS/RoHS I Compliant
- Pb in ceramic, exemption 7c
- Not moisture sensitive - MSL=1
- Operating temperature range: -40°C to +125°C
- Oscillator Frequency Tolerance: ±0.5%
- Frequency Stability: ±0.2% over -40°C to +125°C
- Insulation Resistance: 100 MΩ at +125°C
- Voltage Rating: 50 V DC
- Aging Rate: max 0.2% over 10 years
- Test conditions: 20°C ±15°C, humidity 65% ±20% R.H., test voltage: 5Vpp
Buy the Abracon Series Oscillator Crystal: AWSCR400CRLBC15T3
Purchase the Abracon oscillator crystal AWSCR400CRLBC15T3 online today to secure high-quality, ultra-stable frequency components essential for microprocessor circuitry, industrial controls, and metering systems. With a compact 4.5 x 2.0 x 1.0 mm size, it offers broad frequency options from 4.00 to 12.00 MHz, RoHS compliance, and reliable operation over a wide temperature range. Perfect for demanding electronic applications requiring long-term frequency stability, low resonance impedance, and durable construction. Order now for fast delivery and dependable performance.
Order your Abracon Series oscillator crystal AWSCR400CRLBC15T3 today and ensure precise timing for your electronic control and metering systems.
Frequently Asked Questions
Where can I buy ABRACON AWSCR400CRLBC15T3?
You can click on the BUY or RFQ button to purchase AWSCR400CRLBC15T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR400CRLBC15T3?
You can download the AWSCR400CRLBC15T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR400CRLBC15T3?
ABRACON
