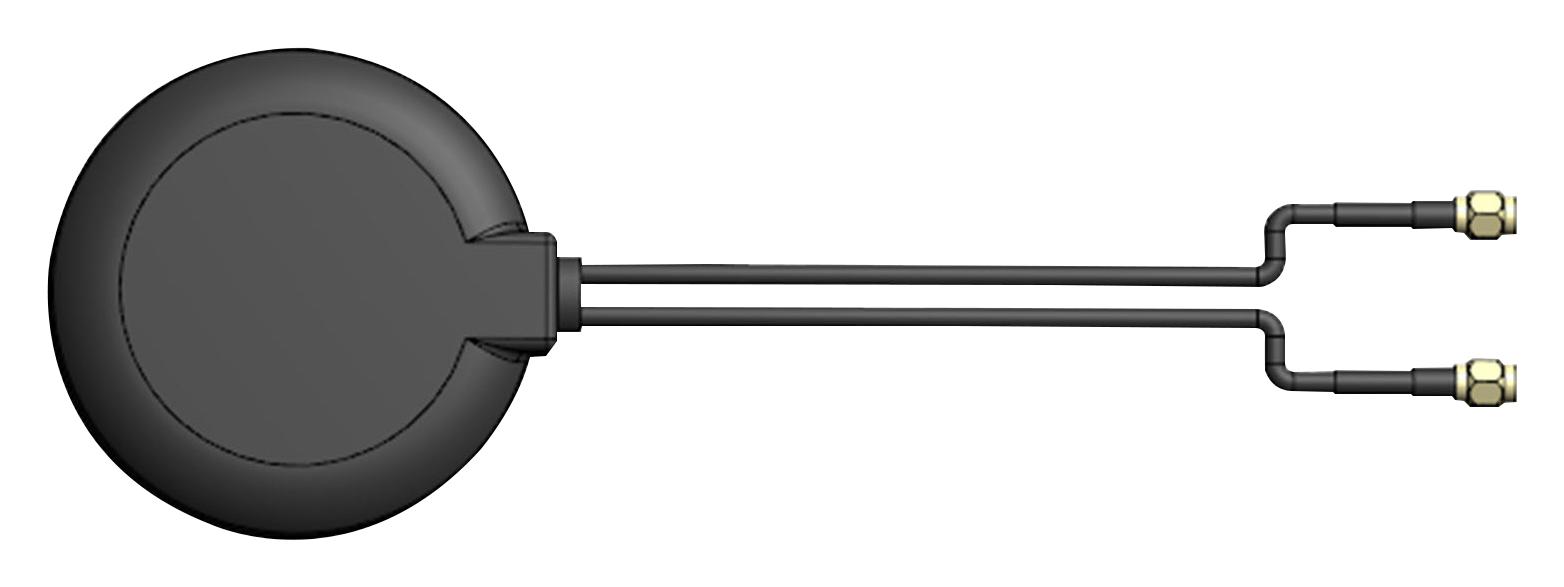

ABRACON AEACBA081014M698 4G LTE MIMO Antenna
This 2x2 4G/LTE MIMO antenna is designed for seamless integration in telematics, fleet monitoring, IoT, video surveillance, and femtocell applications. Operating within 698-2700 MHz, it features IP67-rated durability, linear polarization, and a gain of 3.0 dBi. Its compact dimensions of 81.6x14.5 mm, adhesive mounting, and SMA male connectors make installation straightforward. Suitable for outdoor environments with operating temperature range -40°C to +85°C, it offers reliable performance in harsh conditions, making it ideal for modern wireless communication systems.
ABRACON AEACBA081014M698 4G LTE MIMO Antenna Specifications:
- Dimensions: 81.6x14.5 mm
- Frequency Range: 698-2700 MHz
- Gain: 3.0 dBi
- Polarization: Linear
- Connector: 2x SMA Male
- Cable: 2x RG174, 2M
- Material: ABS
- Environmental Ratings: IP67, operates from -40°C to +85°C, humidity up to 95%
- Vibration Resistance: 10 to 55Hz with 1.5mm amplitude for 2 hours
- RoHS/RoHS II Compliant
- MSL Level: N/A
Buy the Abracon Series LTE Antenna: AEACBA081014M698
Purchase the Abracon 4G LTE MIMO antenna online today and enhance your wireless communication systems. With IP67 durability, linear polarization, and wide frequency coverage from 698 MHz to 2700 MHz, this antenna ensures reliable outdoor performance for telematics, IoT, and surveillance applications. Its compact size of 81.6x14.5 mm and adhesive mounting make installation easy. Trusted for outdoor durability and robust design, this antenna is perfect for reliable, high-performance 4G and LTE connectivity in challenging environments.
Buy Abracon AEACBA081014M698 now and experience unmatched reliability and flexible outdoor wireless performance.
Frequently Asked Questions
Where can I buy ABRACON AEACBA081014M698?
You can click on the BUY or RFQ button to purchase AEACBA081014M698 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AEACBA081014M698?
You can download the AEACBA081014M698 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AEACBA081014M698?
ABRACON
