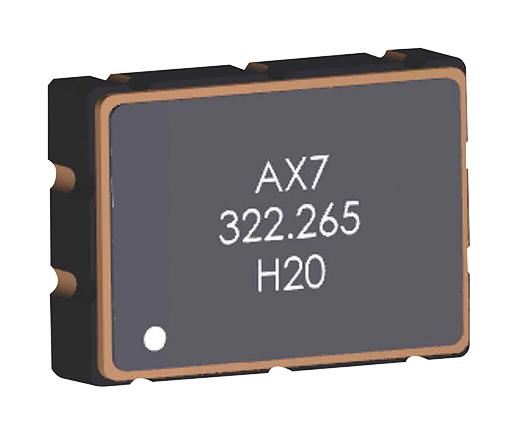

ABRACON AX7DAF11000000C Crystal Oscillator
The Power Optimized 0.12ps 5x7mm XO is a high-performance crystal oscillator designed for industrial and communication applications. Supporting frequencies up to 2100MHz with excellent phase noise and jitter performance, it operates over wide temperature ranges from -40°C to 85°C and features industry-standard 5x7mm footprint. It offers low power consumption, multiple output options like LVPECL, LVDS, and HCSL, and RoHS compliance. Ideal for networking, RF systems, test measurement, and cloud infrastructure, this oscillator ensures precise timing with stability over environmental variation and long-term aging.
ABRACON AX7DAF11000000C Crystal Oscillator Specifications:
- Footprint: 5x7mm
- Package height: 1.8 mm
- Frequency Range: 50 to 2100 MHz
- Frequency Stability: ±25ppm to ±50ppm over -40°C to 85°C
- Power Supply Voltage: 1.8V or 3.3V (varies by option)
- Current Consumption: up to 70mA
- Output Types: LVPECL, LVDS, HCSL, CML
- Rise/Fall Time: <20% to 80% waveform
- Duty Cycle: 50%
- ESD Sensitivity: ESD Sensitive, MSL=1
- RoHS Compliance: Yes
- Operating Temperature: -40°C to 85°C or -20°C to 70°C
- Storage Temperature: -55°C to 125°C
- Phase Noise and Jitter: RMS jitter of 0.12ps (typ), jitter at 150fs max at >200MHz
- Reflow Soldering: 217°C for 60-150 sec, peak at 260°C for 20-40 sec
- Packaging: Cut Tape (50 units), Tape & Reel (250 units)
Buy the Abracon AX7DAF11000000C – Reliable Crystal Oscillator for Industrial Applications
Purchase the Abracon AX7DAF11000000C crystal oscillator online and experience industry-leading frequency stability, low jitter, and robust performance. Ideal for telecommunication networks, RF systems, and measurement equipment, this oscillator ensures reliable timing over wide temperature ranges. With support for multiple output interfaces such as LVPECL, LVDS, and HCSL, the product offers flexibility for diverse applications. Easy to order with fast shipping, ensure your projects stay precise and dependable with this high-quality oscillator that boasts RoHS compliance and proven durability.
Get Abracon AX7DAF11000000C today—built for precision, low jitter, and long-lasting durability in industrial and communication systems.
Frequently Asked Questions
Where can I buy ABRACON AX7DAF11000000C?
You can click on the BUY or RFQ button to purchase AX7DAF11000000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX7DAF11000000C?
You can download the AX7DAF11000000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX7DAF11000000C?
ABRACON
