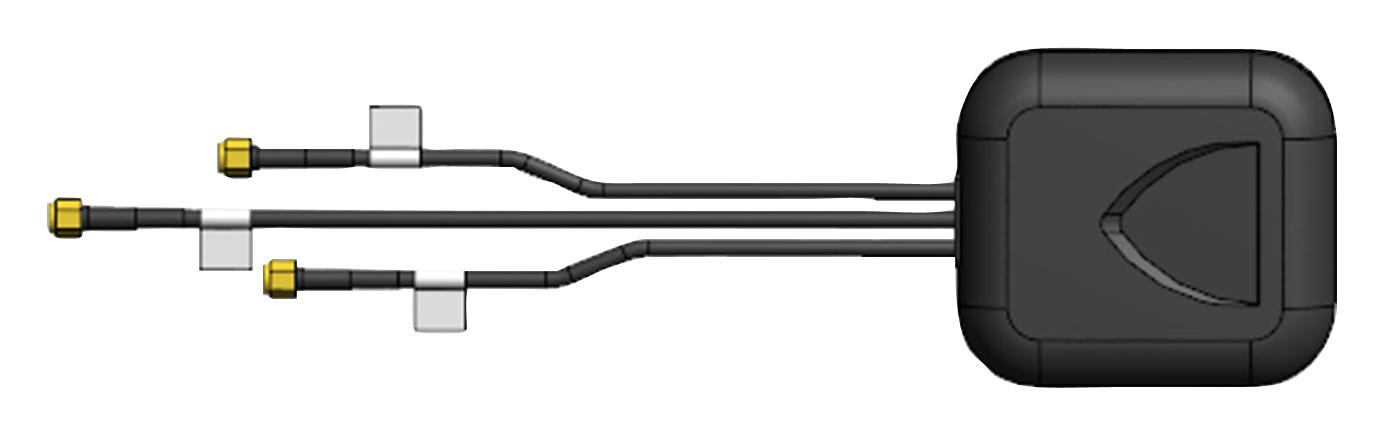

ABRACON AEACBD059015C3GSW Multiband Communicational Antenna
The GPS/GSM/WiFi combinational antenna offers versatile 52x59x15 mm dimensions, supporting active GPS with integrated LNA, 2G/3G bands, and 2.4 GHz WiFi. It features circular polarization, magnetic mounting, and RoHS compliance. Suitable for telematics, smart meters, transportation, and IoT applications, it includes a GPS center frequency of 1575.42 MHz, gain of 2.0 dBi, and a GSM frequency range of 824-960 MHz and 1710-2170 MHz. The antenna's rugged, weatherproof design ensures reliable performance in harsh environments, with low VSWR, compact size, and IP65/IP67 ingress protection.
ABRACON AEACBD059015C3GSW Multiband Communicational Antenna Specifications:
- Dimensions: 52x59x15 mm
- RoHS/RoHS II Compliant
- MSL Level: 1
- GPS Center Frequency: 1575.42 MHz ±1 MHz
- GPS Bandwidth: CF+5 MHz
- GPS VSWR: 1.5
- GPS Polarization: RHCP
- GPS Impedance: 50 Ω
- GPS Gain: 2.0 dBic
- GPS LNA Gain: 2842 dB
- GSM Frequency Range: 824~960 MHz / 1710~2170 MHz
- GSM VSWR: 2.0
- GSM Gain: 2.0 dBi
- GSM Polarization: Linear
- Connector: SMA Male
- Cable Type: RG174
- Material: ABS
- Operating Temperature: -40°C to +85°C
- Relative Humidity: Up to 95%
- Ingress Protection: IP65 to IP67 (excluding cable outlet)
- Vibration: 10 to 55Hz with 1.5mm amplitude for 2 hours
- Size: 52x59x15 mm
- Weight: Approximate total weight per carton: 12 kg for 50 pcs
Buy the Buy Abracon GPS GSM WiFi Part Number AEACBD059015C3GSW Online
Purchase the Abracon multiband GPS, GSM, and WiFi antenna online today to enhance your telematics, IoT, and transportation projects. This compact, weatherproof antenna features integrated active GPS with low noise figure, circular polarization for optimal signal reception, and dual-band GSM support, making it ideal for rugged environments. Its magnetic mounting and RoHS compliance ensure easy installation and eco-friendly operation. Order now to benefit from fast shipping, excellent performance, and a versatile solution for wireless communication needs.
Buy Abracon AEACBD059015C3GSW now and experience unmatched reliability and performance in GPS, GSM, and WiFi communication technology.
Frequently Asked Questions
Where can I buy ABRACON AEACBD059015C3GSW?
You can click on the BUY or RFQ button to purchase AEACBD059015C3GSW from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AEACBD059015C3GSW?
You can download the AEACBD059015C3GSW datasheet or visit the ABRACON website for support.
Who is the manufacturer of AEACBD059015C3GSW?
ABRACON
