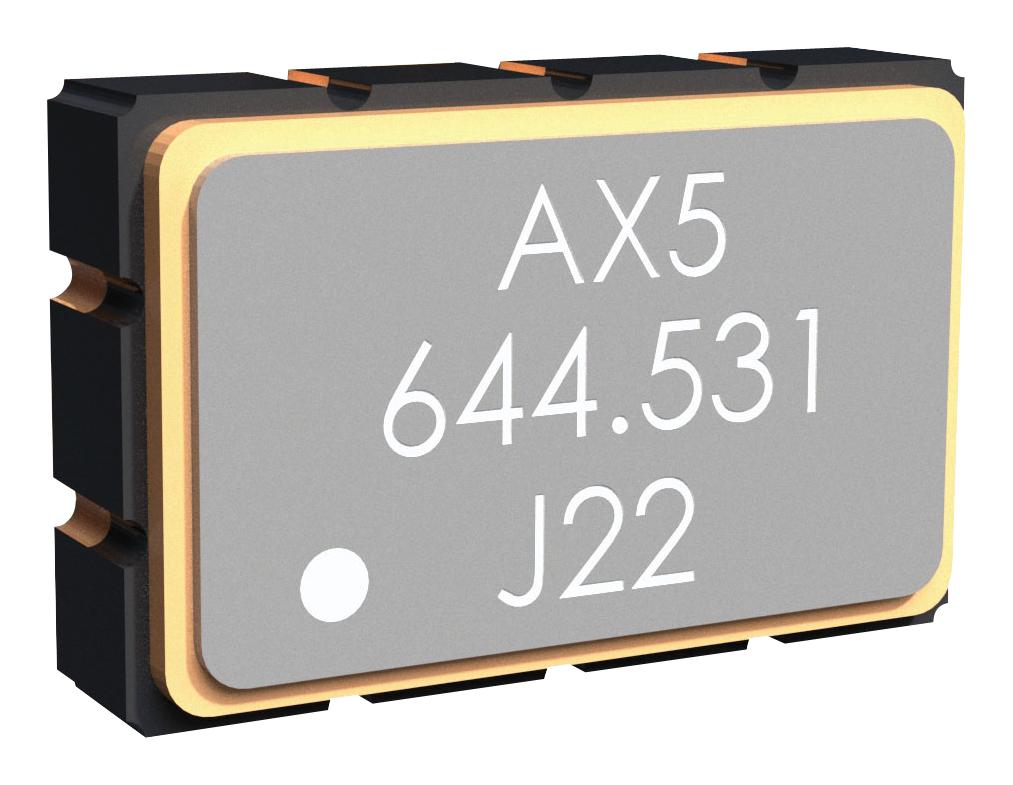

ABRACON AX5DAF12000000C Crystal Oscillator
The ClearClock ultra-low jitter crystal oscillator offers excellent performance for high-speed digital communication, networking, and measurement applications. Featuring RMS phase jitter as low as 132 fs and a stable frequency range from 50 MHz to 2100 MHz, it supports various differential output formats including LVPECL, LVDS, HCSL, and CML. Manufactured in a compact 5.0 x 3.2 mm footprint, it is RoHS compliant, with a low profile of 1.4 mm and an operating temperature stability up to ±15 ppm over a -20°C to +70°C range and ±420 ppm over -40°C to +85°C. Its power consumption is optimized at 60 mA typical for LVDS output, making it suitable for networking, data centers, RF systems, and test measurement equipment.
ABRACON AX5DAF12000000C Crystal Oscillator Specifications:
- Frequency Range: 50MHz to 2100MHz
- RMS Phase Jitter: 132 fs (at 156.25 MHz), 118 fs (at 644.53125 MHz), 127 fs (at 312.5 MHz), 144 fs (at 2100 MHz)
- Output Formats: LVPECL, LVDS, HCSL, CML
- Supply Voltage: 3.3V, 2.5V, 1.8V options
- Supply Current: 60mA (typical, LVDS output)
- Temperature Stability: ±15 ppm from -20°C to +70°C; ±420 ppm from -40°C to +85°C
- Profile: 5.0 x 3.2 mm, 1.4 mm height
- RoHS/RoHS II Compliant, MSL=1, RoHS compliant packaging
- Condition for operation: ESD sensitive, RoHS compliant, ideal for high-speed, low jitter clock generation
- Application areas include networking, optical Ethernet, RF systems, data centers, test and measurement equipment
Buy the Buy Abracon ClearClock Ultra-Low Jitter Crystal Oscillator Part Number AX5DAF12000000C Online
Purchase the Abracon ClearClock ultra-low jitter crystal oscillator online to ensure high-performance clock signals in networking, data centers, RF systems, and measurement applications. This compact, RoHS-compliant module supports frequencies from 50 MHz to 2100 MHz with RMS jitter as low as 118 fs, ensuring precise, stable, and reliable timing. Its low power consumption and multiple differential output options make it suitable for demanding high-speed digital systems. Enjoy fast delivery and excellent customer support when ordering the AX5DAF12000000C online today.
Get Abracon ClearClock AX5DAF12000000C today—built for ultra-low jitter, high stability, and power efficiency in high-speed digital systems.
Frequently Asked Questions
Where can I buy ABRACON AX5DAF12000000C?
You can click on the BUY or RFQ button to purchase AX5DAF12000000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX5DAF12000000C?
You can download the AX5DAF12000000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX5DAF12000000C?
ABRACON
