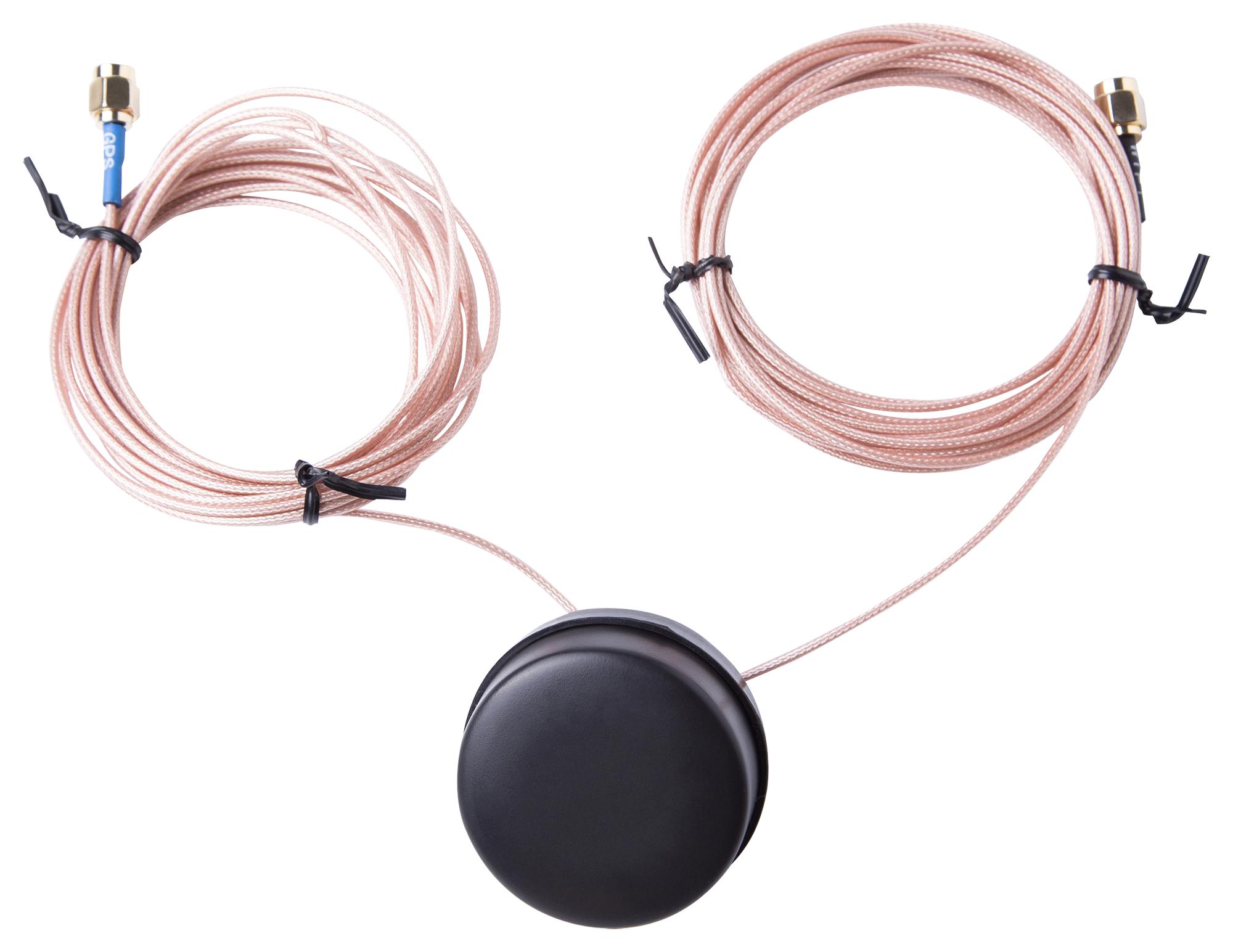

ABRACON AEACBK046014C2WG Wi-Fi GPS Antenna
This combined external antenna supports Wi-Fi and GPS signals, operating at 1574.42 MHz, 2450 MHz, and 5500 MHz. It is IP67 dust and waterproof, ideal for outdoor and indoor use in industrial, telematics, and fleet management applications. The compact size of approximately 46.6 x 14.5 mm, with a durable ABS radome, ensures robust performance in harsh environments. Featuring a 3-meter RG178 RF cable with SMA connector, it offers high efficiency, low VSWR, and RHCP/Linear polarization, making it suitable for M2M, remote tech, and commercial vehicle monitoring.
ABRACON AEACBK046014C2WG Wi-Fi GPS Antenna Specifications:
- Dimensions: 46.6 x 14.5 mm
- Frequency Range: 1574.42 MHz, 2450 MHz, 5500 MHz
- Material: ABS radome
- Cable: RG178, length 3 meters
- Connector: SMA and others
- Waterproof Rating: IP67 dust and waterproof
- Polarization: RHCP/Linear
- Gain: Up to 20dBi+/-2dB for GPS/WiFi
- VSWR: < 1.5/2.5 for GPS/WiFi
- Operating Temperature: Not specified, suitable for outdoor use
- Certification: RoHS/RoHS II compliant
- Electrostatic Discharge Sensitive: Yes
- Mounting: Includes mounting screws
- Radome Material: ABS
- Dimensions Tolerance: ±0.2 mm
- Cable Specification: RF Cable RG178
- Usage: Suitable for M2M, telemetry, commercial vehicles, remote monitoring
Buy the Abracon Series GPS WiFi Antenna: AEACBK046014C2WG
Enhance your wireless connectivity with the Abracon Series GPS WiFi Antenna. Designed for outdoor durability, it covers frequencies at 1574.42 MHz, 2450 MHz, and 5500 MHz. The compact size of 46.6 x 14.5 mm, combined with an IP67 waterproof rating and durable ABS radome, makes it ideal for industrial applications, telematics, and fleet management systems. Equipped with a 3-meter RG178 RF cable and SMA connector, it ensures high efficiency, low VSWR, and polarized signals for optimal performance in challenging environments.
Order your Abracon Series GPS WiFi Antenna AEACBK046014C2WG today and ensure reliable connectivity in outdoor industrial and telemetry applications.
Frequently Asked Questions
Where can I buy ABRACON AEACBK046014C2WG?
You can click on the BUY or RFQ button to purchase AEACBK046014C2WG from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AEACBK046014C2WG?
You can download the AEACBK046014C2WG datasheet or visit the ABRACON website for support.
Who is the manufacturer of AEACBK046014C2WG?
ABRACON
