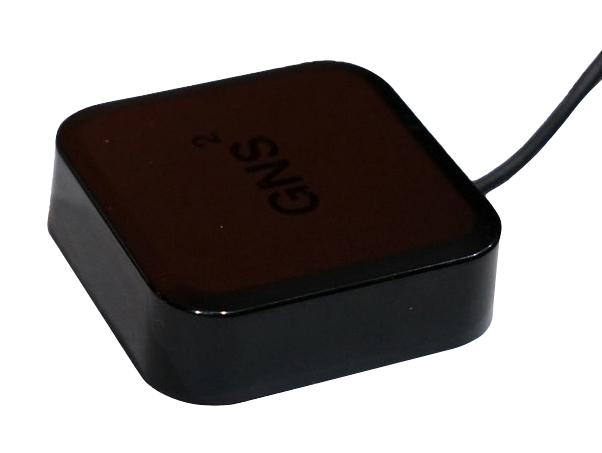

ABRACON AEARBA048014SG3 Multiband GNSS Antenna
The external multiband GNSS antenna supports GPS, GLONASS, and BeiDou signals with an active design featuring an integrated low-noise amplifier (LNA) for enhanced signal reception. Compact size of 48.5 x 47.0 x 14.0 mm and adhesive mounting make it suitable for IoT, M2M, fleet management, autonomous driving, and telematics applications. It features SMA connector, low VSWR across bands, and operates in temperatures from -40°C to +85°C. Designed for reliable performance in various environmental conditions, it offers high gain and broad frequency support for precise positioning and tracking.
ABRACON AEARBA048014SG3 Multiband GNSS Antenna Specifications:
- Dimensions: 48.5 x 47.0 x 14.0 mm
- Supports GPS at 1575.42 MHz, GLONASS at 1602 MHz, BeiDou at 1561 MHz
- Peak Gain: 5.78 dBi (GLONASS), 4.18 dBi (GPS), 5.65 dBi (BeiDou)
- VSWR: Max. 2.0 at all bands
- Input Voltage (DC): 3.0 to 5.5 V
- Environmental: Operating temperature -40°C to +85°C, Storage -40°C to +105°C
- Cable: Low-loss RG-174 coaxial, 5+0.05 meters, SMA-M connector
- Mounting: Adhesive tape (3M 5952F)
- Impedance: 50Ω
- RoHS compliant, MSL= N/A
Buy the Abracon Series Multiband GNSS Antenna: AEARBA048014SG3
Upgrade your positioning systems with the Abracon Series Multiband GNSS Antenna, supporting GPS, GLONASS, and BeiDou signals with an integrated LNA for high sensitivity. Its compact size of 48.5 x 47.0 x 14.0 mm, adhesive mounting, and SMA connector make installation easy and versatile for various applications like IoT, fleet management, and autonomous vehicles. Designed to operate across a wide temperature range, it offers excellent gain and low VSWR for consistent, accurate location data in demanding environments. Buy online now for dependable global positioning performance.
Order your Abracon Series Multiband GNSS Antenna today and enhance your GPS, GLONASS, and BeiDou applications with reliable, high-performance positioning.
Frequently Asked Questions
Where can I buy ABRACON AEARBA048014SG3?
You can click on the BUY or RFQ button to purchase AEARBA048014SG3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AEARBA048014SG3?
You can download the AEARBA048014SG3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AEARBA048014SG3?
ABRACON
