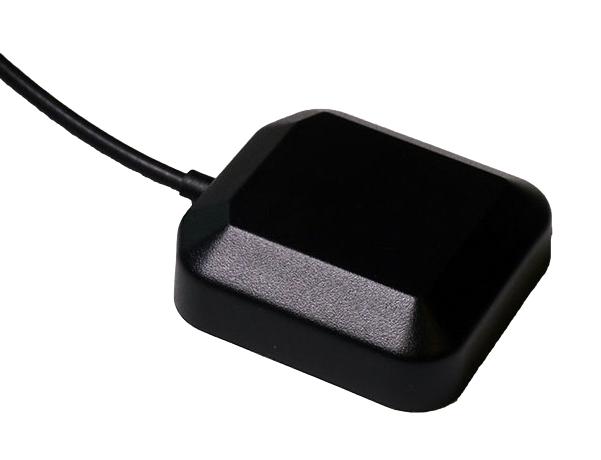

ABRACON AEARBD040038S1621 Satellite Antenna
This antenna is designed for Iridium satellite communication applications, featuring RHCP polarization, low VSWR of 1.5, and magnetic mounting for easy installation. It operates within the 1616 to 1626.5 MHz frequency range, with a gain of 50 dBi, and is constructed with RG174 cable and SMA connector. The compact dimensions are 40.5 x 38.0 x 12.3 mm, and it is RoHS compliant, suitable for satellite telephony, handheld devices, and tracking systems in harsh environments with operating temperatures from -40°C to +105°C. The antenna offers reliable performance in industrial and satellite communication setups.
ABRACON AEARBD040038S1621 Satellite Antenna Specifications:
- Frequency Range: 1616 to 1626.5 MHz
- Center Frequency: 1621.25 ± 5.25 MHz
- Bandwidth: 1621 MHz
- VSWR: 1.5
- Polarization: RHCP (Right Hand Circular Polarization)
- Gain: 50 dBi
- Cable and Connector: RG174 / 1.2M / SMA
- Dimensions: 40.5 x 38.0 x 12.3 mm
- Operating Temperature: -40°C to +105°C
- Material: RoHS compliant
- Connectors: SMA feed pin
- Impedance: 62.122 - j 9.0754 ohm
- Return Loss: -21.349 dB
- Environmental Resistance: Humidity 40-95%, Thermal shocks, Vibration tests
Buy the Abracon AEARBD040038-S1621 – Reliable Iridium Satellite Antenna for Industrial Applications
Enhance your satellite communication system with this high-performance, reliable Iridium antenna featuring RHCP polarization, low VSWR, and magnetic mounting. Designed for industrial and outdoor environments, it operates from 1616 to 1626.5 MHz with a gain of 50 dBi, ensuring clear signal transmission. Its compact size of 40.5 x 38.0 x 12.3 mm makes installation easy. RoHS compliant and resistant to humidity, temperature changes, and vibration, this antenna is ideal for satellite telephony, tracking, and handheld devices in demanding conditions.
Buy Abracon AEARBD040038-S1621 now and experience unmatched reliability and performance in satellite telephony and tracking systems.
