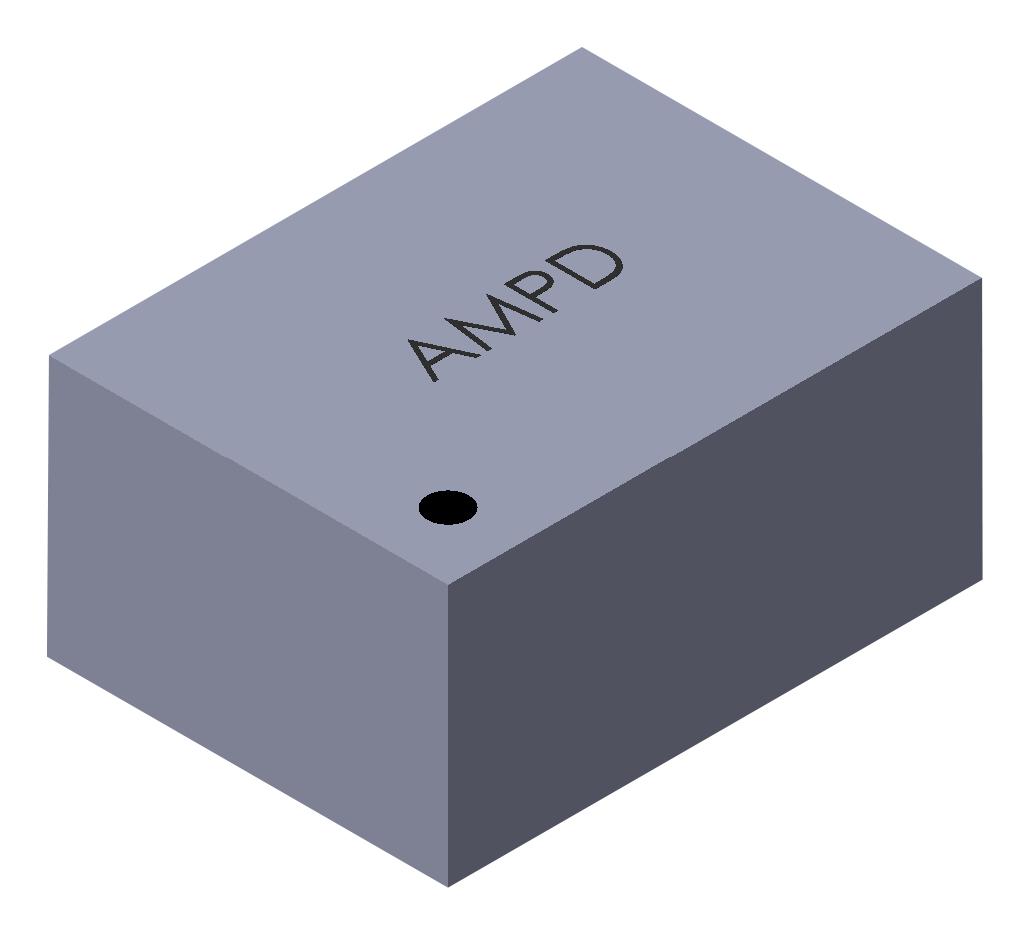

ABRACON AMPDGFHA01 MEMS Oscillator
The AMPD Series frequency selectable MEMS oscillators offer compact size, low power consumption, and wide temperature operation suitable for industrial IoT, wearables, drones, and robotics. With output frequencies from 1 MHz to 80 MHz and selectable dual frequencies, they ensure precise timing with stability of around 50 ppm. Available in various small packages including 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, they feature RoHS compliance, low drive options, and fast settling time for versatile embedded applications.
ABRACON AMPDGFHA01 MEMS Oscillator Specifications:
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Frequency Range: 1 MHz to 80 MHz
- Operating Voltage: 1.71V to 3.63V
- Frequency Stability: ~50 ppm
- Temperature Range: -40°C to +85°C
- Low Operating Current: 1.3mA (typ)
- Rise/Fall Time: 1.2 to 2.0 ns
- Jitter: 20 to 180 ps RMS
- RoHS and RoHS II compliant
- MSL=MSL1 class
- Mechanical Dimensions: as per package sizes; 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Max Soldering Temperature: 260°C for 40 sec
- Storage Temperature: -55°C to +150°C
- Electrical Characteristics: Vp=1.8V ±5% to 3.3V +10%, various drive levels
- Output: CMOS, selectable dual frequencies, with enable features
- Durability: RoHS compliance, MSL=MSL1.
Buy the Abracon Series Frequency Selectable MEMS Oscillator: AMPDGFHA01
Order the Abracon AMPDGFHA01 MEMS oscillator online today to benefit from its compact design, wide frequency range, and low power consumption. Perfect for IoT, wearables, drones, and robotics, this oscillator ensures reliable timing with stability of around 50 ppm across a broad temperature range. Available in multiple small packages including 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, it features RoHS compliance, low drive options, fast settling time, and robust performance suitable for demanding embedded applications. Enhance your product's reliability today!
Get Abracon AMPDGFHA01 today—built for precision, low power operation, and versatile sizes for modern electronics.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA01?
You can click on the BUY or RFQ button to purchase AMPDGFHA01 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA01?
You can download the AMPDGFHA01 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA01?
ABRACON
