ABRACON AFS14A34158866T3 RF Filter
The AFS14A34-1588.66-T3 is a surface-mount SAW filter operating at 1588.66 MHz, designed for wireless communication and cellular applications. It features a compact 14x11x0.7mm packaging, low insertion loss between 1.25 to 2.5 dB, and a wide bandwidth of 34 MHz. The device exhibits excellent selectivity, high out-of-band rejection, and stable performance across temperature ranges from -30°C to +85°C. Its RoHS compliance, small size, and low power handling make it ideal for modern RF communication systems.
ABRACON AFS14A34158866T3 RF Filter Specifications:
- Center Frequency: 1588.66 MHz
- Frequency Response (Narrowband): 1573.42–1577.42 MHz
- Frequency Response (Wideband): 1571.42–1605.89 MHz
- Insertion Loss: 1.25–2.5 dB
- Bandwidth: 34 MHz
- Amplitude Ripple: 0.25–0.7 dB
- Return Loss: 20.8 dB
- Operating Temperature Range: -30°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Supply Voltage: 3.0V DC max
- Input Power Level: +10 dBm max
- Source and Load Impedance: 50 Ohms
- RoHS Compliant

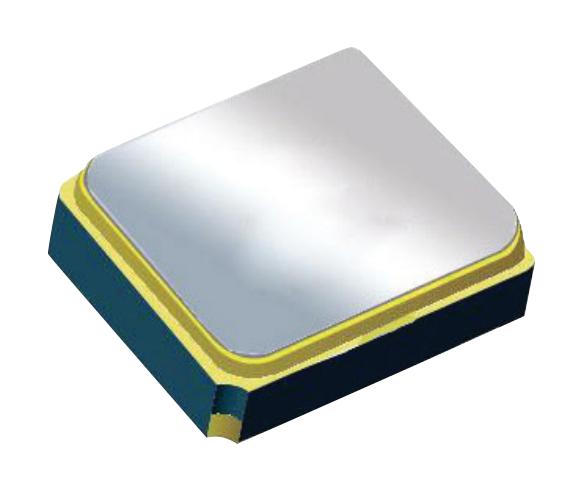

Buy the Buy Abracon 1588.66 MHz SAW Filter Part Number AFS14A34-1588.66-T3 Online
Purchase the Abracon SeriesA14 1588.66 MHz SAW Filter AFS14A34-1588.66-T3 online today. This high-performance RF filter offers low insertion loss, excellent selectivity, and a compact design, making it ideal for wireless communication, cellular devices, and RF systems. Its RoHS compliance ensures environmentally friendly manufacturing, while its small form factor supports space-constrained applications. Reliable and stable across a temperature range of -30°C to +85°C, this filter ensures optimal signal quality and durability for your projects.
Order your Abracon SeriesA14 SAW Filter AFS14A34-1588.66-T3 today and enhance your wireless communication systems with reliable, compact RF filtering solutions.
Frequently Asked Questions
Where can I buy ABRACON AFS14A34158866T3?
You can click on the BUY or RFQ button to purchase AFS14A34158866T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AFS14A34158866T3?
You can download the AFS14A34158866T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AFS14A34158866T3?
ABRACON
