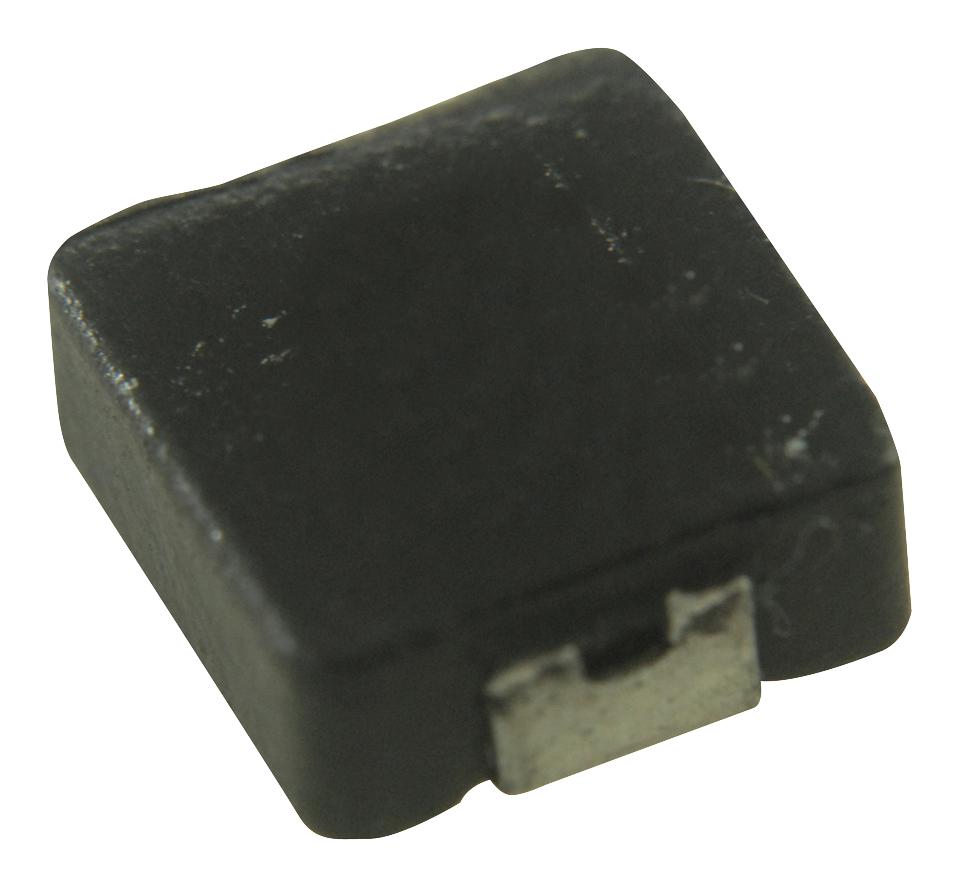

ABRACON AMDLA3010S1R5MT Molded Inductor
The AMDLA3010S molded inductor offers shielded construction, soft saturation, and low DCR per cubic mm. Designed for switching frequencies between 100KHz and 5MHz, it features a range of inductance values from 0.22µH to 10.0µH, with operating temperatures from -55°C to +125°C. Suitable for automotive and electronic applications, it includes robust lead frame construction, tin-plated terminals, and is packaged in tape and reel with a maximum temperature of +125°C. The inductor provides high current handling, low core loss, and reliable performance in compact designs.
ABRACON AMDLA3010S1R5MT Molded Inductor Specifications:
- Inductance: 0.22µH to 10.0µH
- Operating Temperature: -55°C to +125°C
- Maximum Part Temperature: +125°C
- Core Material: Metal Alloy
- Wire Material: Copper
- Terminal: Tin Plated
- Packaging: Tape and Reel (4,000 pcs/reel)
- Lead Frame Current: Up to 93 A depending on model
- Humidity Range: 65% RH
- Storage Temperature: -55°C to +125°C
- Weight per Unit: 0.32g
- Dimensions: Approximate length 12 mm, width 12 mm, height 4.5 mm
Buy the Abracon Series Molded Inductor: AMDLA3010S
Purchase the Abracon AMDLA3010S molded inductor online today and enjoy dependable performance for your electronic projects. This shielded inductor features low DCR, high current capacity, and operates reliably from -55°C to +125°C. Ideal for switching power supplies and automotive electronics, it offers robust construction with tin-plated terminals and efficient tape and reel packaging. Ensure your applications achieve optimal efficiency, durability, and stability with this high-quality inductor designed to meet demanding industry standards and provide long-term operational confidence.
Buy Abracon AMDLA3010S molded inductor now and experience unmatched reliability and performance in switching power applications.
Frequently Asked Questions
Where can I buy ABRACON AMDLA3010S1R5MT?
You can click on the BUY or RFQ button to purchase AMDLA3010S1R5MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMDLA3010S1R5MT?
You can download the AMDLA3010S1R5MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMDLA3010S1R5MT?
ABRACON
