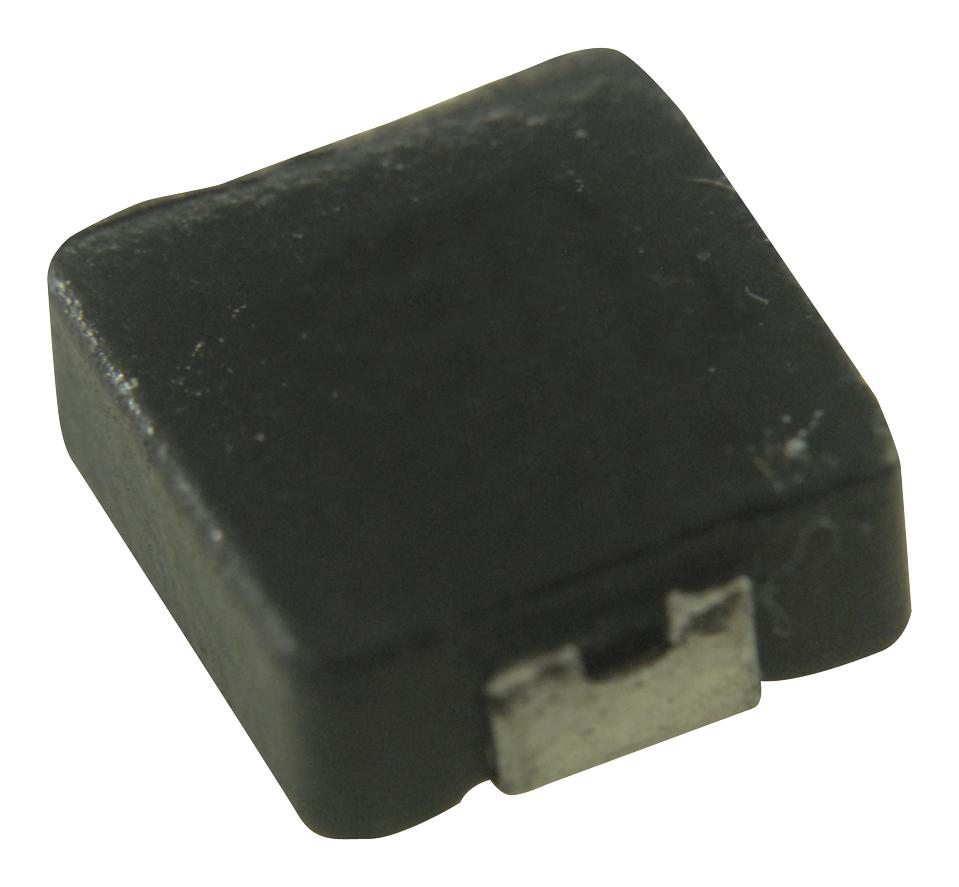

ABRACON AMDLA4020Q4R7MT Molded Inductor
The AMDLA4020Q Series molded inductors are shielded, high-frequency components designed for switching applications between 100 kHz and 5 MHz. Their low DCR and soft saturation characteristics ensure efficient power management in compact designs. Qualified under AEC-Q200, these inductors feature a metal alloy core, copper wire, and tin-plated terminals, with a temperature range of -55°C to +125°C. Available in tape and reel packaging, they are suitable for automotive, industrial, and consumer electronics, offering reliable performance at high currents and temperatures, ensuring durability and stability in demanding circuits.
ABRACON AMDLA4020Q4R7MT Molded Inductor Specifications:
- Core Material: Metal Alloy
- Wire Material: Copper
- Terminal Plating: Tin
- Inductance Range: 0.22 µH to 15.0 µH
- Inductance Tolerance: ±20%
- Temperature Range: -55°C to +125°C
- Max Temperature: +125°C
- Packaging: Tape and Reel (3,000 pcs/reel)
- Dimensions: Refer to datasheet for exact sizes
- Operating Frequency: 100 kHz to 5 MHz
- DCR: Low, varies by model
- Saturation Current: Up to 90A
- Storage Temperature: -55°C to +125°C
- MSL Level: 1
- Test Conditions: Inductance measured at 1 MHz, 1V, 0 Adc
- Humidity Range: 65% RH
- Compliance: AEC-Q200 Qualified
Buy the Buy Abracon Molded Inductor Part Number AMDLA4020Q4R7MT Online
Secure your Abracon molded inductor AMDLA4020Q4R7MT online now to benefit from high-quality, low DCR, shielded design, and excellent thermal stability. Perfect for switching power supplies, industrial electronics, and automotive systems, this component ensures reliable operation in demanding environments. With tape and reel packaging for easy assembly, fast delivery, and ISO-certified manufacturing standards, investing in this inductor guarantees optimal circuit efficiency, durability, and performance for your projects. Purchase today for seamless integration and peace of mind in your electronic designs.
Order your Abracon Series AMDLA4020Q4R7MT molded inductor today and enhance your circuit performance with high-frequency, high-current, reliable inductors.
Frequently Asked Questions
Where can I buy ABRACON AMDLA4020Q4R7MT?
You can click on the BUY or RFQ button to purchase AMDLA4020Q4R7MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMDLA4020Q4R7MT?
You can download the AMDLA4020Q4R7MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMDLA4020Q4R7MT?
ABRACON
