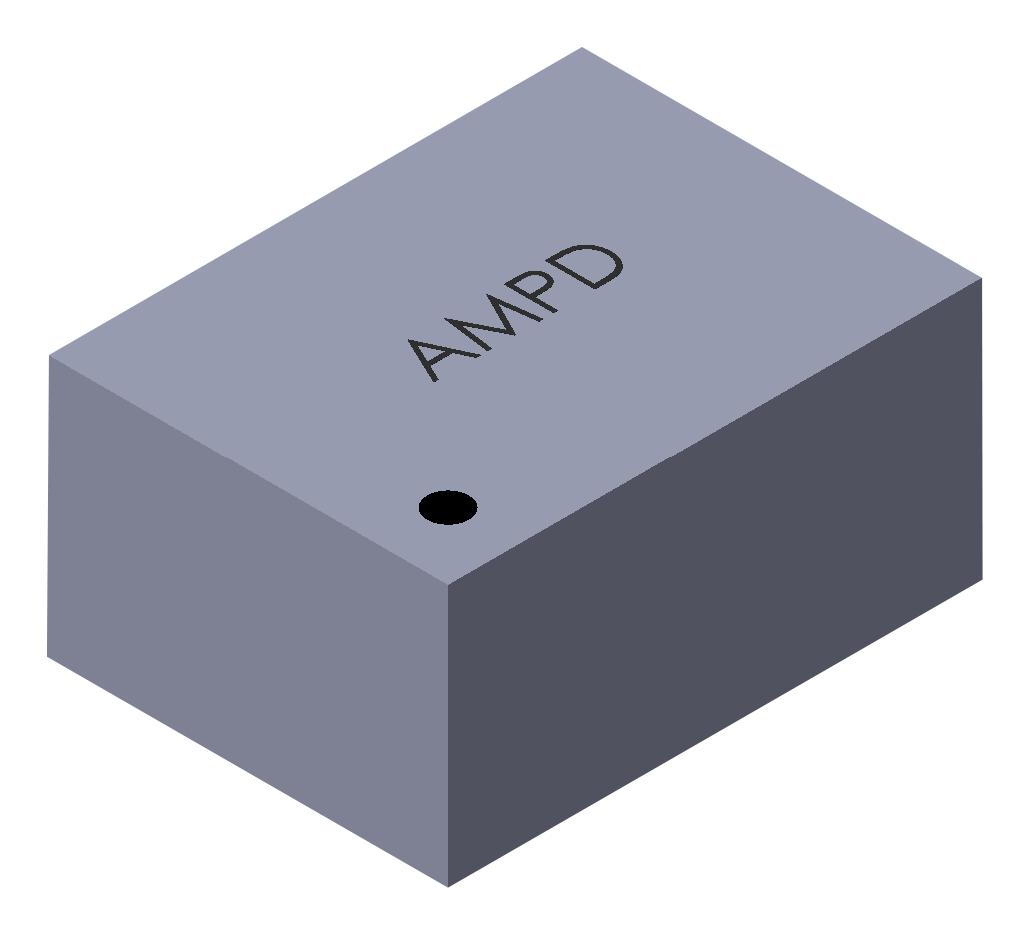

ABRACON AMPDGFHA02 MEMS Oscillator
The AMPDGFHA02 is a frequency selectable MEMS oscillator with a compact design, operating within a frequency range of 1 MHz to 80 MHz. It features low power consumption, wide temperature operation from -40°C to +85°C, and selectable frequencies for versatile applications including wearables, IoT devices, and industrial environments. The device offers low jitter, stable frequency stability, and RoHS compliance, making it suitable for advanced electronics requiring precise timing signals in a small form factor. It is ideal for applications demanding reliable, low-noise clock sources with minimal power draw.
ABRACON AMPDGFHA02 MEMS Oscillator Specifications:
- Dimensions: 1.6 x 1.2 x 0.84 mm or 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- Frequency Range: 1 MHz to 80 MHz
- Supply Voltage: 1.71 to 3.63 V (nominal 1.8V to 3.3V)
- Current Consumption: 1.3 mA (typ) at no load, low drive options available
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ~50 ppm (Options +50 or +100 ppm)
- RoHS/RoHS II compliant, MSL=MSL1
- Output: Selectable between 2 frequencies with enable pin, low jitter
- Rise/Fall Time: 1.2 to 2.0 ns (depending on drive option)
- Additional features include short settling time of 40 hours and low phase jitter
- Mechanical package options include VFLGA, DFN, VLGA with terminal pitch of 1.65 mm
- Reflow temperature profile includes preheat, peak at 260°C, suitable for surface mounting
- Electromagnetic Compatibility: ESD protection up to 4kV HBM, 400V MM, 2kV CDM
Buy the Abracon Series MEMS Oscillator: AMPDGFHA02
Discover the reliability and precision of the Abracon Series MEMS Oscillator AMPDGFHA02. This compact device, with a frequency range of 1 MHz to 80 MHz, offers low power consumption and wide temperature operation from -40°C to +85°C. Ideal for IoT, wearables, and industrial applications, it supports RoHS compliance and provides features like low jitter and quick settling time. Buy online today to enhance your electronics with dependable, high-performance timing solutions that meet rigorous industry standards.
Order your Abracon Series MEMS oscillator AMPDGFHA02 today and give your projects the dependable quality they deserve, ensuring precise timing and low power operation.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA02?
You can click on the BUY or RFQ button to purchase AMPDGFHA02 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA02?
You can download the AMPDGFHA02 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA02?
ABRACON
