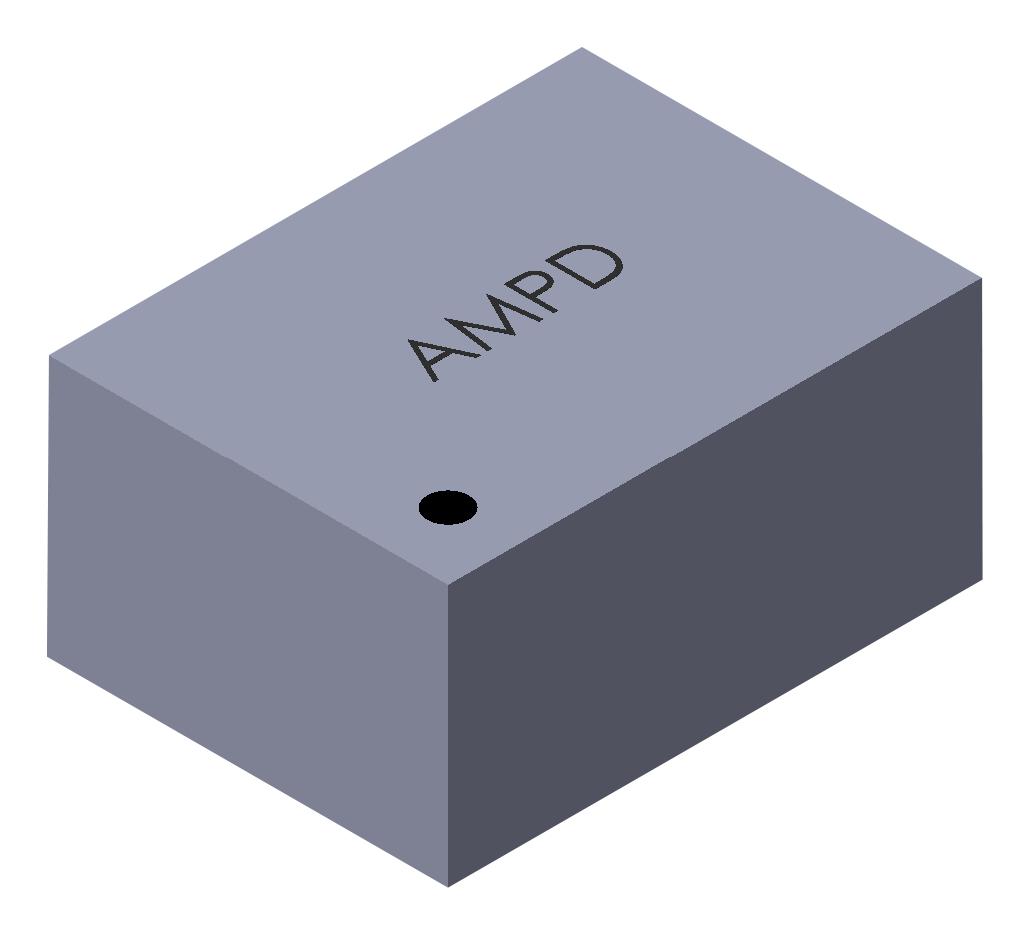

ABRACON AMPDGFHA13 MEMS Oscillator
The AMPD series frequency-selectable MEMS oscillators offer compact 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm packages. Designed for small form-factor applications, they feature low power consumption, wide operating temperature from -40°C to +85°C, and support output frequencies from 1MHz to 80MHz. These RoHS compliant devices include selectable dual frequencies, low drive options, and are suitable for IoT, wearable, industrial, audio, video, drones, and robotics applications, with quick turnaround and MSL=MSL1 rating.
ABRACON AMPDGFHA13 MEMS Oscillator Specifications:
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Dimensions: 1.6 x 1.2 x 0.84 mm, 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- Frequency Range: 1.0000 MHz to 80.0000 MHz
- Supply Voltage: 1.71 V to 3.63 V, typical 1.8 V at 24 MHz
- Current Consumption: 1.3 mA (typ) at no load
- Operating Temperature: -40°C to +85°C, storage -55°C to +150°C
- Frequency Stability: ±50 ppm (Option E/G), ±5 ppm (Option D/F) over 1 year
- Duty Cycle: 40-60%, 61-80% depending on operating frequency
- Output Logic Levels: Voh, Vol, with internal pull-up resistor (300 kΩ)
- Output Drive: Standard >3 mA, Low Drive >1 mA
- RoHS/RoHS II Compliant, MSL level 1
Buy the Abracon Series MEMS Oscillators: AMPDGFHA13
Purchase the Abracon Series AMPDGFHA13 MEMS oscillator online today and benefit from compact design, wide frequency range from 1MHz to 80MHz, low power consumption, and fast delivery. Perfect for IoT, wearables, industrial automation, audio-visual equipment, drones, and robotics applications. These RoHS compliant devices feature dual-frequency options, quick turnaround for custom frequencies, and robust performance across a wide temperature range. Trust Abracon for high-quality, reliable timing solutions that meet your project needs with ease and efficiency.
Order your Abracon Series AMPDGFHA13 MEMS oscillator today and enhance your IoT, wearable, or industrial project with reliable, low-power timing solutions.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA13?
You can click on the BUY or RFQ button to purchase AMPDGFHA13 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA13?
You can download the AMPDGFHA13 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA13?
ABRACON
