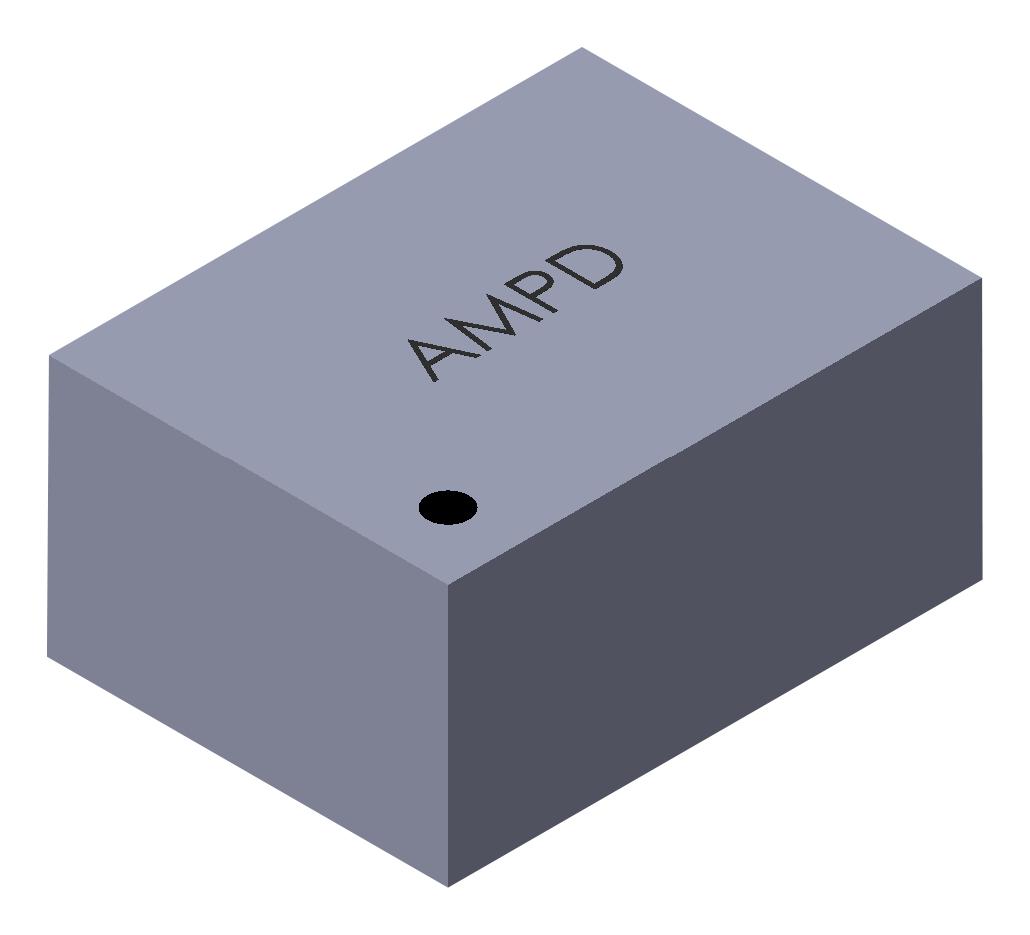

ABRACON AMPDGFIA02 Frequency Selectable MEMS Oscillator
The AMPD series frequency selectable MEMS oscillators provide a compact, low-power solution suitable for industrial, IoT, wearable, and audio/video applications. With frequency ranges from 1 MHz to 80 MHz, they feature low operating current, wide temperature tolerance from -40°C to +85°C, and multiple output drive options, delivering high stability with minimal jitter and fast settling times. Available in various small footprint packages like 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, these oscillators are RoHS compliant and suitable for space-constrained designs requiring reliable performance.
ABRACON AMPDGFIA02 Frequency Selectable MEMS Oscillator Specifications:
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Frequency Range: 1 MHz to 80 MHz
- Supply Voltage: 1.8V -5% to 3.3V +10%
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ~50 ppm typical
- Input/Output Logic Levels: Vv=0.8*V to 0.2*V
- Drive Strength: Standard >3 mA, Low >1 mA
- Fast settling time: 40 hours
- Current Consumption: 1.3 mA (typ)
- RoHS and RoHS II compliant
- Mechanical Dimensions: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Reflow Soldering Profile: Preheat 150°C-200°C, Peak 255°C-260°C
- Packaging: MOQ varies, tape and reel options, RoHS compliant
Buy the Abracon Series Frequency Selectable MEMS Oscillators: AMPDGFIA02
Buy the Abracon AMPDGFIA02 frequency selectable MEMS oscillator online today to enjoy high stability, low power consumption, and compact design ideal for IoT, wearables, and industrial use. These oscillators cover from 1 to 80 MHz, have fast settling times, and operate reliably across wide temperature ranges. Perfect for applications demanding space efficiency and dependable timing in harsh environments. Order now for quick delivery, competitive pricing, and the quality assurance that Abracon provides globally.
Get Abracon AMPDGFIA02 today—built for precision, low power, and reliable performance in space-constrained applications.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA02?
You can click on the BUY or RFQ button to purchase AMPDGFIA02 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA02?
You can download the AMPDGFIA02 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA02?
ABRACON
