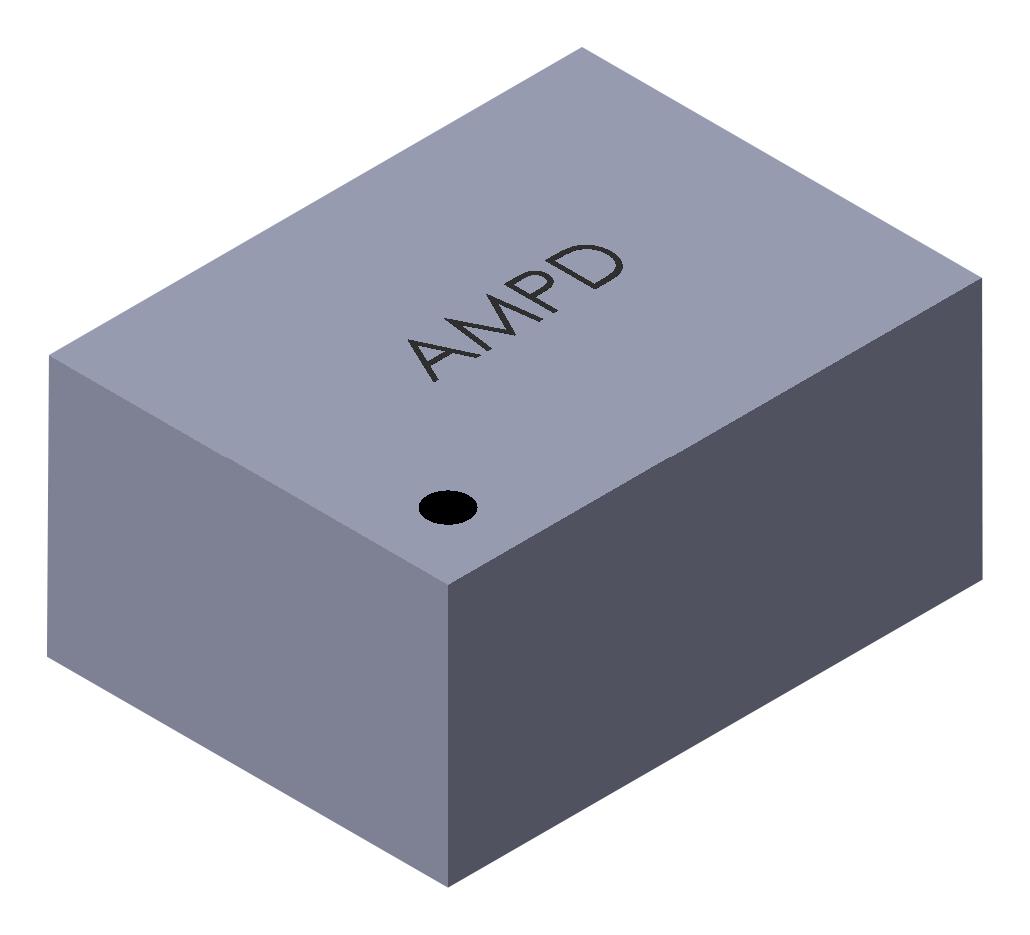

ABRACON AMPDGFHA04 MEMS Oscillator
The AMPDGFHA04 is a frequency selectable MEMS oscillator designed for precise timing in industrial and IoT applications. Featuring a compact footprint with options ranging from 1.6x1.2mm to 3.2x2.5mm, it offers low power consumption and a wide operating temperature range from -40°C to +85°C. It supports output frequencies between 1MHz and 80MHz, includes multiple output drive options, and complies with RoHS standards. Its robust design ensures minimal jitter and aging stability suitable for high-reliability industrial environments.
ABRACON AMPDGFHA04 MEMS Oscillator Specifications:
- Dimensions vary from 1.6x1.2mm to 3.2x2.5mm depending on model
- Frequency Range: 1.0000 MHz to 80.0000 MHz
- Supply Voltage: 1.71V to 3.63V
- Current Consumption: 1.3 mA out no load
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +150°C
- RoHS and RoHS II Compliant
- ESD sensitive, 4kV HBM, 400V MM, 2kV CDM
- Output drive options include standard (>3mA) and low drive (>1mA)
- Output logic: 0.2V at low, 0.8V at high (Vv reference)
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Terminal pitch: 1.65mm or 1.55mm depending on model
- Tape & reel packaging available for bulk orders
Buy the Abracon AMPDGFHA04 – Reliable MEMS Oscillator for Industrial Applications
Experience the high performance and reliability of the Abracon AMPDGFHA04 MEMS oscillator. With selectable frequencies ranging from 1MHz to 80MHz, low power consumption, and a wide operating temperature from -40°C to +85°C, it is ideal for industrial IoT, automation, and wearable devices. The compact size and RoHS compliance make it versatile for space-constrained applications. Order online now to ensure your projects benefit from precise timing, minimal jitter, and high stability, delivered promptly for your manufacturing needs.
Get Abracon AMPDGFHA04 today—built for precision and long-lasting durability in industrial and IoT environments.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA04?
You can click on the BUY or RFQ button to purchase AMPDGFHA04 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA04?
You can download the AMPDGFHA04 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA04?
ABRACON
