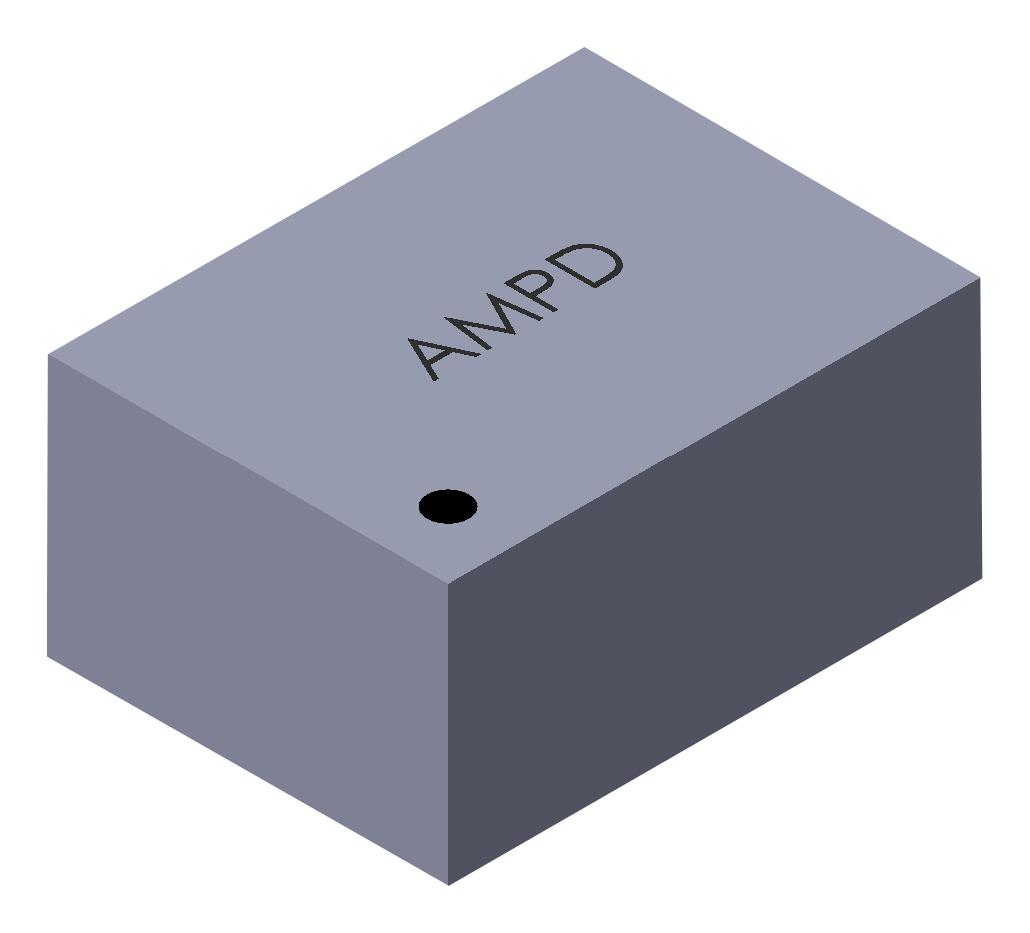

ABRACON AMPDGFIA02T Frequency Selectable MEMS Oscillator
The AMPDGFIA02T is a frequency selectable MEMS oscillator offering dual frequency outputs, low power consumption, and a compact 2.0 x 1.6 mm VFLGA package. It operates over -40°C to +85°C with a frequency range from 1 MHz to 80 MHz, making it suitable for IoT, wearable, industrial, and audio/video applications. RoHS compliant and MSL=MSL1, it features fast settling time, low drive options, and multiple package sizes for versatile integration. Designed for high stability, low jitter, and reliable performance in sensitive electronic systems.
ABRACON AMPDGFIA02T Frequency Selectable MEMS Oscillator Specifications:
- Package sizes: 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm
- Dimensions: 1.6 x 1.2 x 0.84 mm, 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- Frequency range: 1 MHz to 80 MHz
- Operating temperature: -40°C to +85°C
- Supply voltage: 1.8V to 3.3V, typical current consumption: 1.3 mA
- Output types: selectable dual frequency outputs, LVPECL, LVDS, or CMOS
- RoHS/RoHS II compliant, MSL=MSL1
- Settling time: 40 hours
- Output drive options: low drive (≤5mA) and standard drive (≥3mA)
- Jitter: RMS period jitter 23-30 ps, cycle-to-cycle jitter 120-170 ps
- Reflow profile: Preheat 150-200°C, peak reflow 255-260°C
- Compatibility: Suitable for audio/video, drones, robotics, IoT, industrial IoT
- Storage temp: -55°C to +150°C
- Soldering max temp: +260°C for 40 sec
- Packaging: bulk, tape and reel options available
- Certifications: RoHS, REACH, IEC 61000-4-2 ESD protection 4kV
Buy the Buy Abracon Frequency Selectable MEMS Oscillator Part Number AMPDGFIA02T Online
Experience the versatility and precision of the Abracon Frequency Selectable MEMS Oscillator, Part Number AMPDGFIA02T. This compact device offers dual frequency outputs in a small 2.0 x 1.6 mm VFLGA package, ideal for IoT, wearables, audio/video, and industrial applications. Operating from -40°C to +85°C with a wide 1 MHz to 80 MHz frequency range, it provides low power consumption, fast settling times, and high stability. Available with various package options, it ensures dependable performance and seamless integration into your electronic systems.
Order your Abracon Series AMPDGFIA02T high-performance MEMS oscillator today and enhance your IoT, wearable, and industrial projects with reliable, low jitter timing solutions.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA02T?
You can click on the BUY or RFQ button to purchase AMPDGFIA02T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA02T?
You can download the AMPDGFIA02T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA02T?
ABRACON
