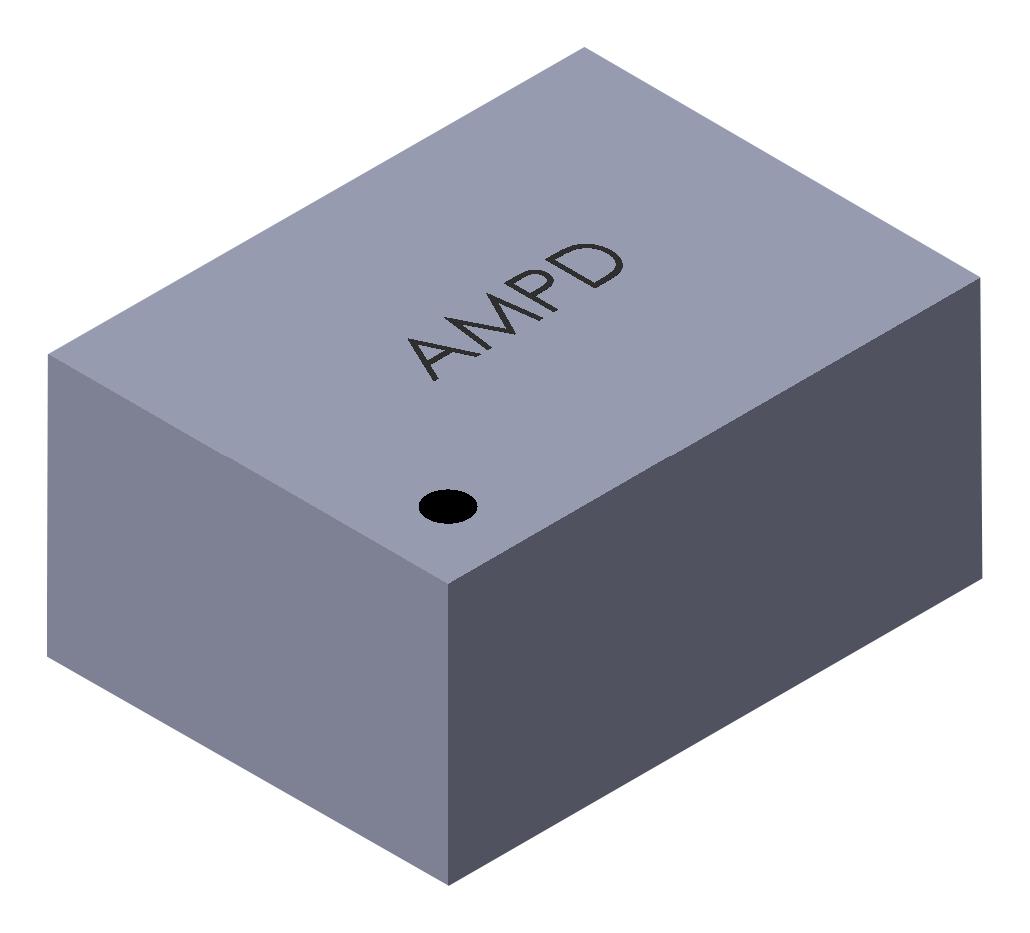

ABRACON AMPDGFHA09T Frequency Oscillator
The AMPDGFHA09T is a frequency selectable MEMS oscillator suitable for various applications including industrial, IoT, wearables, audio, video, drones, and robotics. It features a compact size available in multiple form factors, low power consumption at 1.3mA typical, and a wide operating temperature range of -40°C to +85°C. The oscillator provides output frequencies from 1MHz to 80MHz, with quick settling time of 40 hours, and is RoHS compliant with MSL=MSL1. Its electrical characteristics include low drive strength options and stable frequency over temperature and aging.
ABRACON AMPDGFHA09T Frequency Oscillator Specifications:
- Size options: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Frequency Range: 1.0000 to 80.0000 MHz
- Supply Voltage: 1.71 to 3.63 V
- Current Consumption: 1.3 mA at typical load
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ±50 ppm options available
- Output Frequencies: 1MHz to 80MHz
- Output Logic Levels: VoH and VoL specified, with 0.2V and 0.2*V Vcc thresholds
- Output Drive Options: Standard (>3mA), Low Power (>1mA)
- Reflow Profile: Preheat 150-200°C for 60-180s, peak 255-260°C for 20-40s
- Mechanical dimensions: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- RoHS compliant, MSL=MSL1
- Package outline: VFLGA, DFN, VLGA packages available
- Additional features: Wide temperature range, short startup time (13ms), minimal jitter
- Packaging: Bulk, tape & reel options, MOQ varies per size
Buy the Buy Abracon AMPDGFHA09T Part Number AMPDGFHA09T Online
Purchase the Abracon AMPDGFHA09T frequency oscillator online for seamless integration into your electronic and industrial projects. Designed for low power consumption, high stability, and quick startup, this oscillator offers reliable performance across a wide temperature range. Available in various compact form factors, it supports frequency selection from 1MHz to 80MHz, making it ideal for IoT devices, wearables, audio, video, drones, and robotics. Order now for fast delivery and ensure your project’s success with quality and precision from Abracon.
Get Abracon AMPDGFHA09T today—built for precision, low power, and long-lasting durability in IoT and industrial applications.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA09T?
You can click on the BUY or RFQ button to purchase AMPDGFHA09T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA09T?
You can download the AMPDGFHA09T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA09T?
ABRACON
