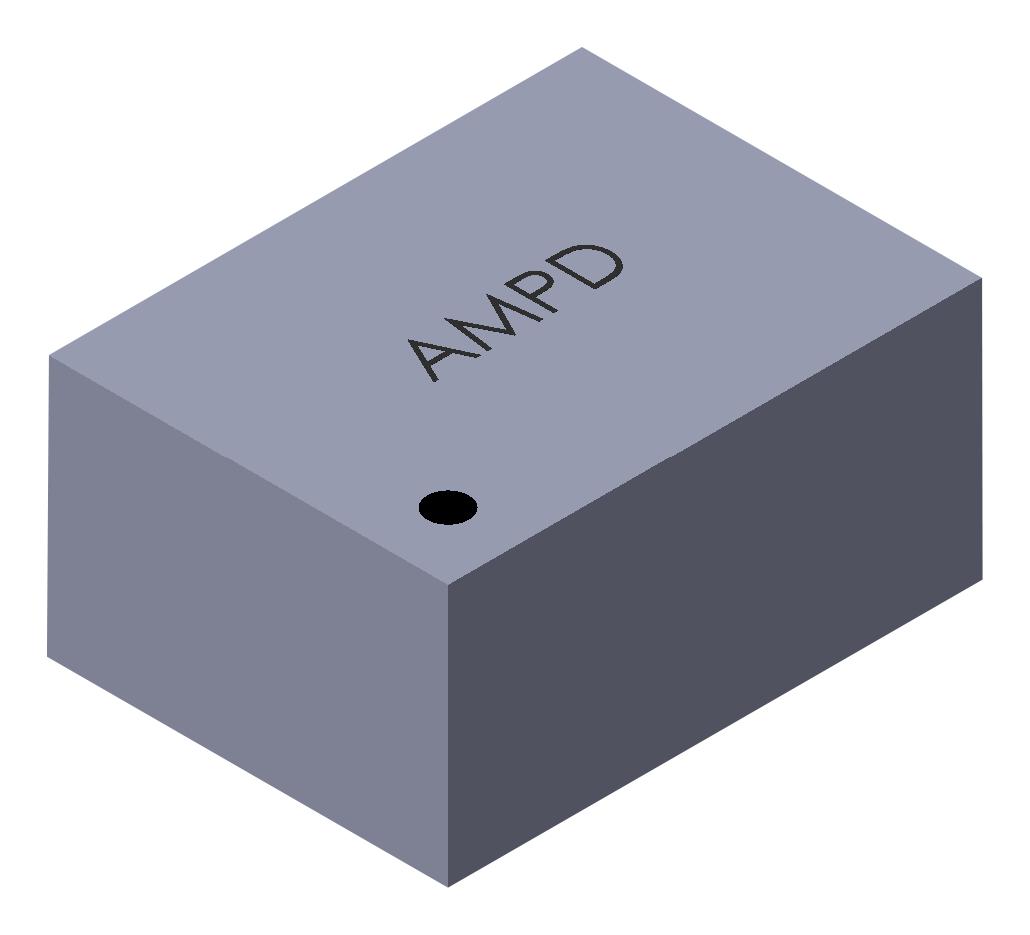

ABRACON AMPDGFIA04 Frequency Selectable MEMS Oscillator
The AMPDGFIA04 frequency selectable MEMS oscillator offers a compact design suitable for space-constrained applications such as IoT, wearables, drones, and industrial electronics. Operating over -40°C to +85°C, it features a wide frequency range from 1MHz to 80MHz, low power consumption, and two selectable frequencies for versatile use. Its RoHS compliance and MSL=MSL1 status ensure reliability and environmental safety. The oscillator's small footprint and fast settling time make it ideal for modern digital and communication systems requiring stable, precise clock signals.
ABRACON AMPDGFIA04 Frequency Selectable MEMS Oscillator Specifications:
- Dimensions: 1.6 x 1.2 x 0.84 mm, 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- Operating Temperature: -40°C to +85°C
- Frequency Range: 1.0000 to 80.0000 MHz
- Supply Voltage: 1.71 to 3.63 V
- Current Consumption: 1.3 mA out no load
- Frequency Stability: ±50 ppm (Option E or G)
- Output Frequency Settling Time: 40 hours
- Output Logic: CMOS, 50% duty cycle
- RoHS/RoHS II compliant, MSL=MSL1
- Reflow Soldering Profile: Preheat 150-200°C for 60-180 sec, Reflow 217°C for 60-150 sec, Peak 255-260°C for 20-40 sec
Buy the Abracon Series Frequency Selectable MEMS Oscillator: AMPDGFIA04
Discover the versatile and compact Frequency Selectable MEMS Oscillator, ideal for IoT devices, wearables, drones, and industrial applications. This high-performance oscillator features a wide frequency range from 1MHz to 80MHz, low current consumption of 1.3mA, and operates across -40°C to +85°C temperature range, ensuring stability and reliability. Its RoHS compliance, fast settling time, and multiple package options make it perfect for modern digital and communication systems. Purchase online today for fast delivery and trusted quality.
Order your Abracon Series Frequency Selectable MEMS Oscillator AMPDGFIA04 today and enhance your electronic designs with reliable, low-power timing solutions.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA04?
You can click on the BUY or RFQ button to purchase AMPDGFIA04 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA04?
You can download the AMPDGFIA04 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA04?
ABRACON
