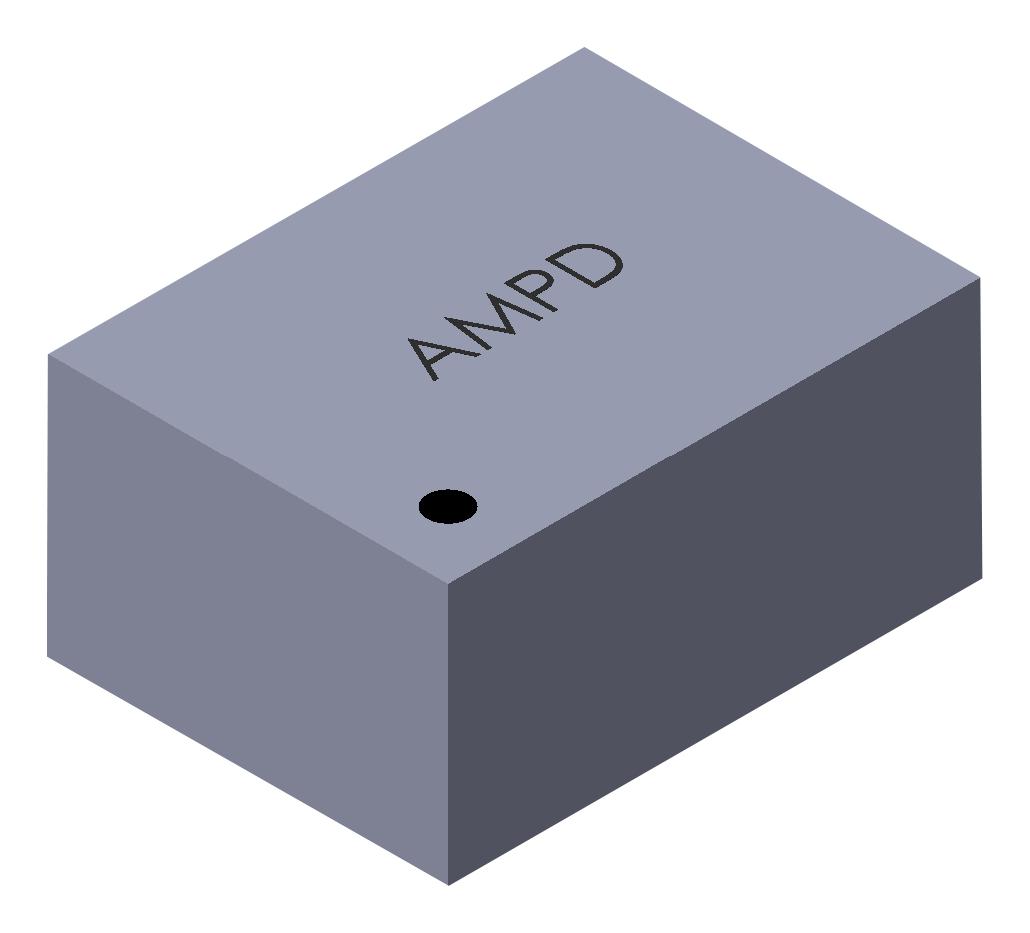

ABRACON AMPDGFIA04T Frequency oscillator
The AMPDGFIA04T is a frequency selectable MEMS oscillator offering a wide 1MHz to 80MHz output range with low power consumption and high stability. It features a compact 2.0 x 1.6 mm footprint, RoHS compliance, and operates over -40°C to +85°C, making it suitable for IoT, wearables, and industrial applications. The device provides dual frequency output with fast settling time, minimal jitter, and low operating current, ensuring reliable performance within industrial environments and demanding applications.
ABRACON AMPDGFIA04T Frequency oscillator Specifications:
- Dimensions: 2.0 x 1.6 x 0.84 mm
- Frequency Range: 1.0000 to 80.0000 MHz
- Supply Voltage: 1.71 to 3.63 V
- Current Consumption: 1.3 mA at no load
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ~50 ppm over -40°C to +85°C
- Output Logic Levels: VOH 0.2V*, VOL 0.2V* at VDD
- Rise/Fall Time: 1.2 to 2.0 ns
- Jitter (RMS): 20 to 30 ps
- Package: VFLGA, RoHS/RoHS II compliant, MSL=MSL1
- RoHS Compliance: Yes
Buy the Buy Abracon Frequency Selectable MEMS Oscillator Part Number AMPDGFIA04T Online
Discover the Abracon frequency selectable MEMS oscillator AMPDGFIA04T, offering a wide frequency range from 1 MHz to 80 MHz, ideal for IoT, wearables, and industrial systems. Its compact size of 2.0 x 1.6 mm and low power consumption make it perfect for space-constrained applications. The device operates reliably over -40°C to +85°C, features high stability with ±50 ppm, and provides quick start-up with minimal jitter. Easily purchase online to ensure seamless integration into your projects and ensure system stability.
Buy Abracon AMPDGFIA04T now and experience unmatched reliability and high stability for your IoT, industrial, and wearable applications.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA04T?
You can click on the BUY or RFQ button to purchase AMPDGFIA04T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA04T?
You can download the AMPDGFIA04T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA04T?
ABRACON
