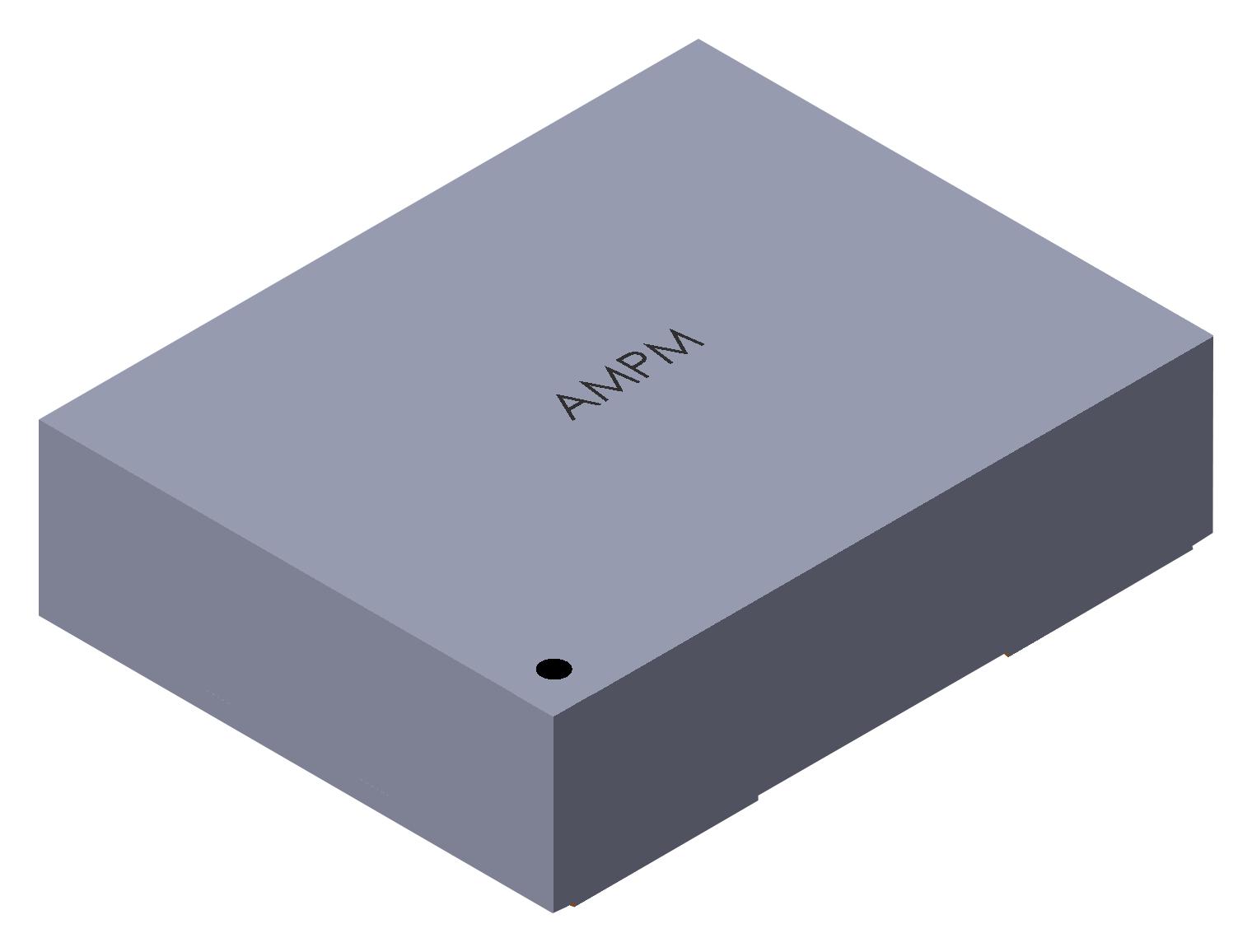

ABRACON AMPMEFB200000T MEMS Oscillator
The product is a power-optimized MEMS oscillator offering a compact footprint in sizes such as 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm. Designed for industrial, IoT, wearables, drones, and robotics, it provides output frequencies from 1MHz to 80MHz, with low power consumption, high stability, and wide temperature operating range. Features include RoHS compliance, MSL=MSL1 rating, and various output drive configurations to meet diverse application needs, ensuring reliability and precise timing performance.
ABRACON AMPMEFB200000T MEMS Oscillator Specifications:
- Size options: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Package types: VFLGA, VLGA, DFN
- Frequency range: 1MHz to 80MHz
- Operating temperature: -40°C to +85°C
- Supply voltage: 1.71V to 3.63V
- Low power standby current: 121A (typ)
- Operating current: 1.3mA (typ)
- RoHS and RoHS II compliant
- MSL=MSL1
- Output enable/disable with typical response in 1μs
- Rise/Fall time: approximately 12ns
- Jitter: RMS 23-30ps, cycle-to-cycle 90-190ps
- Soldering temperature: max 260°C for 40 sec
Buy the Abracon AMPMEFB200000T – Reliable MEMS Oscillator for Industrial Applications
Purchase the Abracon MEMS Oscillator AMPMEFB200000T online today for reliable, high-performance timing solutions. Ideal for industrial, IoT, wearables, drones, and robotics, this compact oscillator offers excellent stability, low power consumption, and a wide temperature range. With multiple package options like VFLGA and VLGA, it ensures easy integration into your designs. Experience fast delivery, competitive pricing, and guaranteed quality. Order now to enhance your electronic projects with precise, dependable timing components.
Get Abracon AMPMEFB200000T today—built for precision timing and long-lasting durability in industrial and IoT environments.
Frequently Asked Questions
Where can I buy ABRACON AMPMEFB200000T?
You can click on the BUY or RFQ button to purchase AMPMEFB200000T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPMEFB200000T?
You can download the AMPMEFB200000T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPMEFB200000T?
ABRACON
