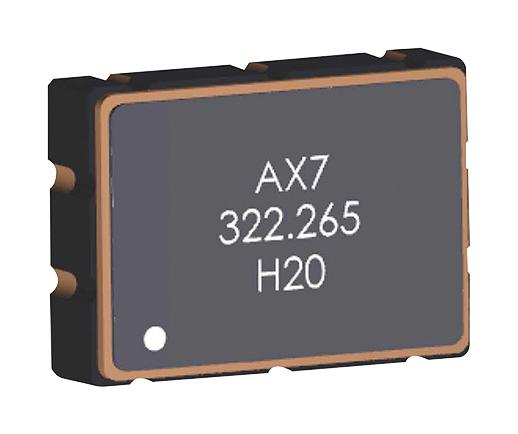

ABRACON AX7PBF11562500C Crystal Oscillator
The power-optimized crystal oscillator offers a 0.12ps typical jitter performance within a compact 5x7mm footprint, supporting high-frequency applications from 50 to 2100MHz. Designed for network and RF systems, it features excellent spurious suppression, low power consumption, and stability over temperature and aging. The device supports various output formats including LVPECL, LVDS, HCSL, and CML, with a supply voltage of 1.8V or 3.3V. It is RoHS compliant, MSL 1, and suitable for high-speed communication, data centers, and measurement systems, ensuring reliable performance in demanding environments.
ABRACON AX7PBF11562500C Crystal Oscillator Specifications:
- Dimensions: 7.0x5.0x1.8 mm
- Footprint: Industry standard 5x7mm
- Frequency Range: 50 to 2100MHz
- Jitter: 0.12ps typical
- Supply Voltage: 1.8V / 3.3V (options available)
- Operating Temperature: -40°C to 85°C or -20°C to 70°C
- Frequency Stability: ±50ppm, ±25ppm, ±50ppm, ±25ppm over specified temperature ranges
- Output formats: LVPECL, LVDS, HCSL, CML
- RoHS compliant, MSL 1, ESD sensitive
- Excellent spurious suppression, low power consumption, and high frequency support
- Suitable for RF systems, base stations, test & measurement, cloud, servers, storage, Ethernet, and RF applications.
- Reflow profile includes preheat at 150°C–200°C, peak at 260°C, with ramp rate max 3°C/sec.
Buy the Buy Abracon Crystal Oscillator Part Number AX7PBF11562500C Online
Elevate your electronic designs with the Abracon Crystal Oscillator. Featuring 0.12ps jitter, wide frequency support from 50 to 2100MHz, and multiple output formats, this oscillator ensures precise timing for RF and network systems. Its compact 5x7mm size and low power consumption make it ideal for high-speed applications, base stations, and data centers. RoHS compliant and robustly tested, this device guarantees reliability, making it a top choice for engineers seeking performance and stability in demanding environments.
Buy Abracon AX7PBF11562500C now and experience unmatched reliability and high-frequency stability for your RF and communication systems.
Frequently Asked Questions
Where can I buy ABRACON AX7PBF11562500C?
You can click on the BUY or RFQ button to purchase AX7PBF11562500C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX7PBF11562500C?
You can download the AX7PBF11562500C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX7PBF11562500C?
ABRACON
