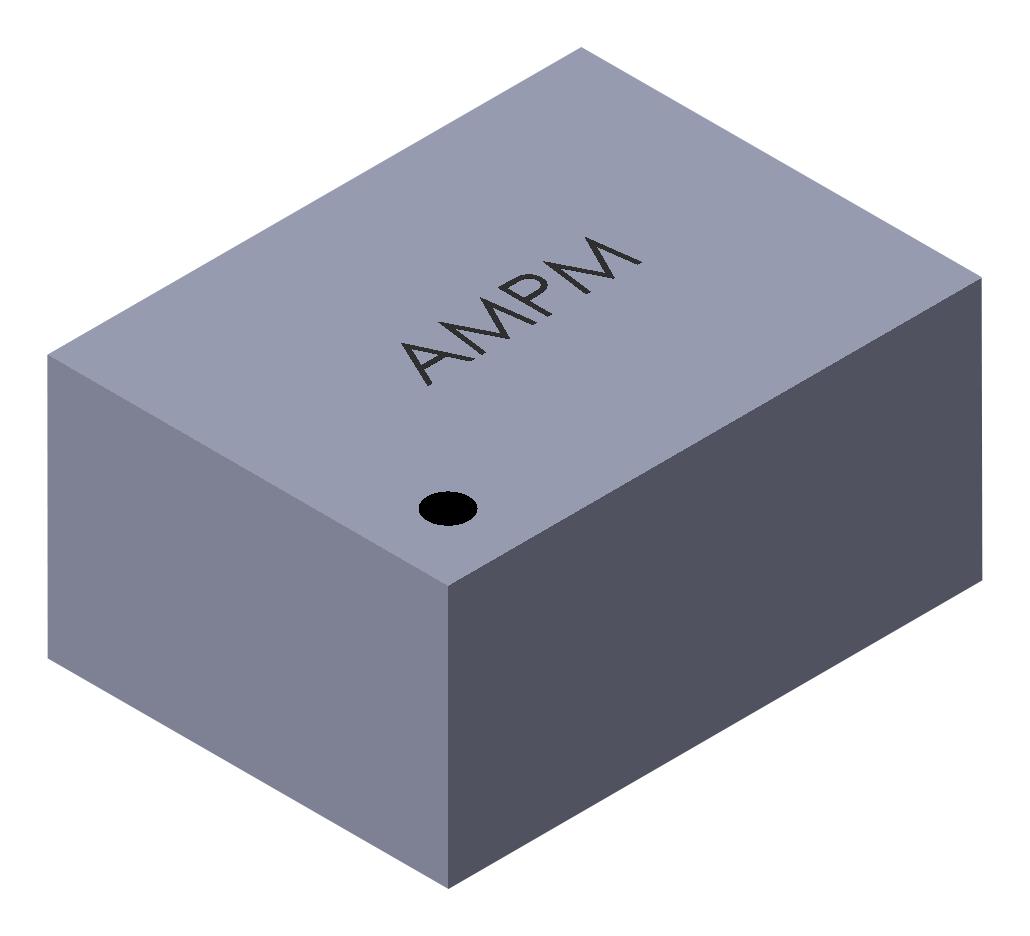

ABRACON AMPMGFB100000T MEMS Oscillator
The AMPM Series features compact MEMS oscillators with sizes as small as 1.6x1.2mm and 0.84mm profile, ideal for wearables, IoT, and industrial applications. They operate from 1MHz to 80MHz within a temperature range of -40°C to +85°C, consuming low power with high stability and low jitter. These RoHS-compliant, MSL1-rated devices offer fast startup, enable/standby modes, and come in various package sizes like VFLGA and VLGA, suitable for high-reliability electronics, drones, and audio/video electronics.
ABRACON AMPMGFB100000T MEMS Oscillator Specifications:
- Size options: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Height: 0.84mm, 0.85mm
- Frequency Range: 1MHz to 80MHz
- Supply Voltage: 1.7V to 3.6V
- Operating Temperature: -40°C to +85°C
- Current Consumption: as low as 1.3mA
- Package types: VFLGA, VLGA, DFN
- RoHS/RoHS II and MSL=MSL1 compliant
- Startup Time: approx. 1.3ms
- Jitter: RMS <30ps, Cycle-to-Cycle <190ps
- Enable/Standby: Low power modes, with internal pull-ups
- Output: Square wave, drive currents: >1mA (low drive), >3mA (standard drive)
- Package Dimensions: detailed per series with tolerances, terminal pitch 1.55mm
- Application: wearables, IoT, industrial electronics, drones, audio/video equipment.
- Reflow profile: Preheat 150–200°C, Peak 255–260°C, total 60–150 sec
Buy the Abracon Series MEMS Oscillator: 1.6x1.2mm Low Power Ultra-Low Jitter: AMPMGFB100000T
Enhance your electronic designs with the Abracon MEMS Oscillator series, featuring sizes as small as 1.6x1.2mm, operating up to 80MHz, consuming minimal power, and with high stability. Ideal for wearables, IoT devices, industrial automation, drones, and audio/video applications. These RoHS-compliant oscillators offer fast startup, low jitter, and multiple package options including VFLGA, VLGA, and DFN, ensuring high performance in demanding environments. Purchase online today for reliable, compact timing solutions.
Buy Abracon AMPMGFB100000T now and experience unmatched reliability and performance in compact MEMS oscillators for your advanced electronics.
