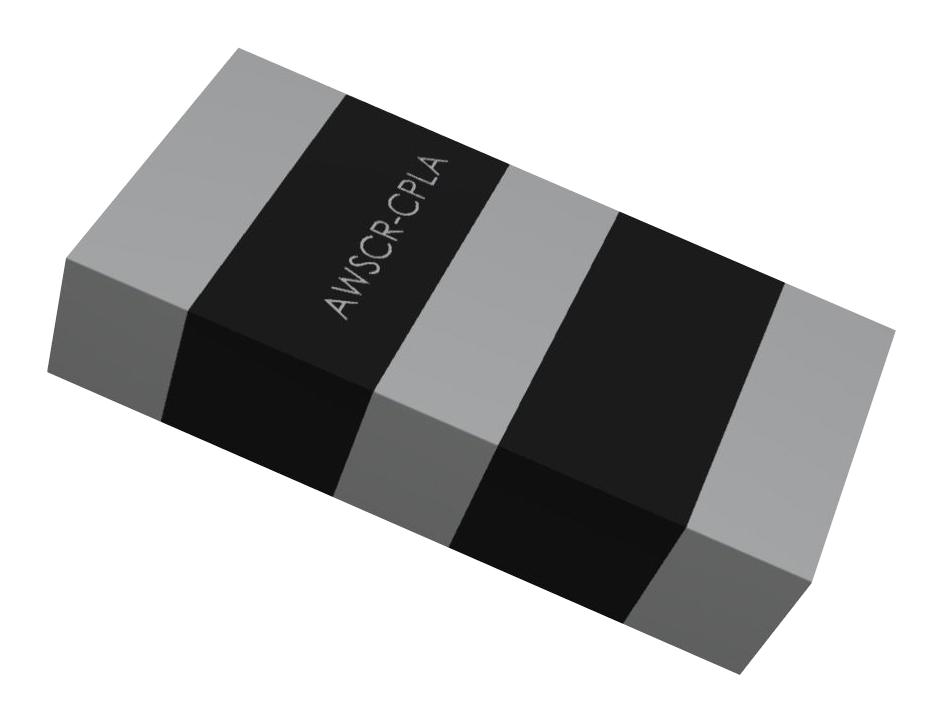

ABRACON AWSCR358CPLAC47T4 Miniature Ceramic Resonator
The ABRACON AWSCR-3.58CPLA-C47-T4 is a miniature ceramic resonator offering a compact and reliable solution for timing and frequency control in a wide range of applications. Its small form factor (6.0 x 3.0 x 1.8 mm) makes it ideal for space-constrained designs. The resonator exhibits low resonance impedance, ensuring efficient signal transfer, and operates across an extended temperature range, making it suitable for harsh industrial environments. It is RoHS compliant and designed for applications such as metering systems, remote control devices, microprocessor circuits, and industrial control systems. The component is not moisture sensitive (MSL = 1) and is packaged in tape and reel format for automated assembly.
ABRACON AWSCR358CPLAC47T4 Miniature Ceramic Resonator Specifications:
- Frequency Range: 1.84 - 12.00 MHz
- Resonant Impedance (Ro): 100 Ω (1.84 MHz – 2.99 MHz), 50 Ω (3.00 MHz – 3.49 MHz), 30 Ω (3.50 MHz – 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 30 pF (1.84 MHz – 8.00 MHz, ±20% tolerance), Other options: 10, 15, 22, 33, 39, 47 pF
- Frequency Tolerance: -0.5% to +0.5%
- Frequency Stability: -0.3% (2.00-8.00 MHz), -0.2% (8.01-12.00 MHz)
- Withstanding Voltage: 100 V DC (5 s max)
- Voltage Rating: (1) 6 V DC, (2) 15 Vp-p AC
- Insulation Resistance (Ri): 500 MΩ (10V, 1 min)
- Operation Temperature: -40 ºC to +85 ºC
- Storage Temperature: -55 ºC to +85 ºC
- Aging Rate (Fosc): -0.1% to +0.1% (from initial value)
- Dimensions: 6.0 x 3.0 x 1.8 mm
- Packaging: 4000 pcs/reel
