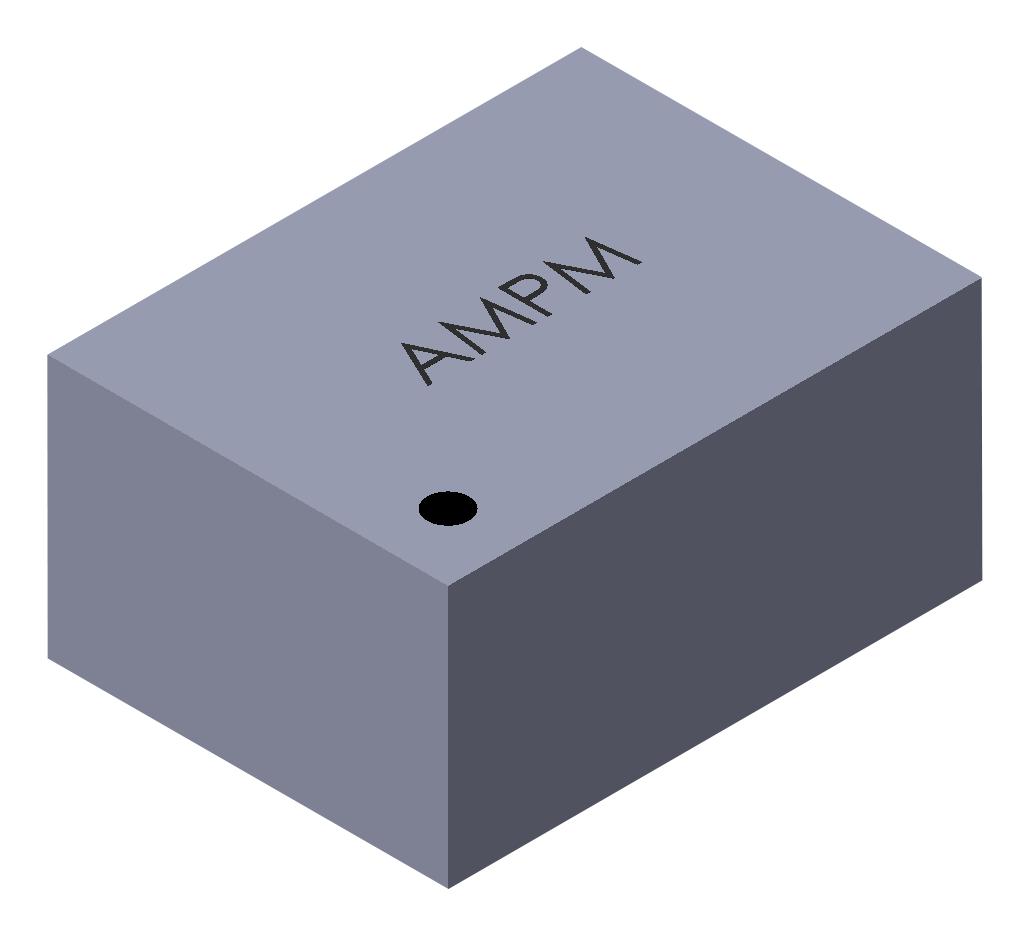

ABRACON AMPMGFB40000T MEMS Oscillator
The AMPMGFB40000T is a compact and power-efficient MEMS oscillator ideal for use in wearables, IoT devices, drones, and robotics. Featuring a small footprint of just 1.6x1.2mm or up to 2.5x2.0mm, and a low profile of 0.84mm, it delivers output frequencies ranging from 1MHz to 80MHz. Designed for low power consumption with typical currents of 1.3mA and standby currents as low as 121A, it operates reliably across -40°C to +85°C. Its RoHS compliance makes it suitable for environmentally conscious applications.
ABRACON AMPMGFB40000T MEMS Oscillator Specifications:
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Profile: 0.84mm (up to 0.85mm for larger sizes)
- Frequency Range: 1.0000 MHz to 80.0000 MHz
- Operating Temperature: -40°C to +85°C
- Supply Voltage: 1.71V to 3.63V, typically 1.8V or 3.3V
- Low Power Consumption: 1.3mA typical
- Standby Current: as low as 121A (typ)
- RoHS/RoHS II Compliant
- MSL: MSL1
- Electrical Timing: Output enable/disable in 1μs, rise/fall times ~2ns, jitter ~20-30ps
- Mechanical: Surface-mount with recommended placement and soldering profiles
- Durability: Reliable operation over wide temperature range and industrial environments
Buy the Buy Abracon MEMS Oscillator Part Number AMPMGFB40000T Online
Purchase the Abracon MEMS Oscillator AMPMGFB40000T online now to benefit from its compact size, ultra-low power consumption, and wide temperature range. Ideal for IoT devices, wearables, drones, and robotics, this oscillator ensures precise timing and reliable performance. With quick lead times and RoHS compliance, you can incorporate this advanced component into your projects effortlessly. Order today and enjoy seamless integration, high stability, and long-term durability in demanding industrial and consumer applications.
Get Abracon AMPMGFB40000T today—compact, low-power MEMS oscillator for high-precision applications in wearables, IoT, drones, and industrial environments.
Frequently Asked Questions
Where can I buy ABRACON AMPMGFB40000T?
You can click on the BUY or RFQ button to purchase AMPMGFB40000T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPMGFB40000T?
You can download the AMPMGFB40000T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPMGFB40000T?
ABRACON
