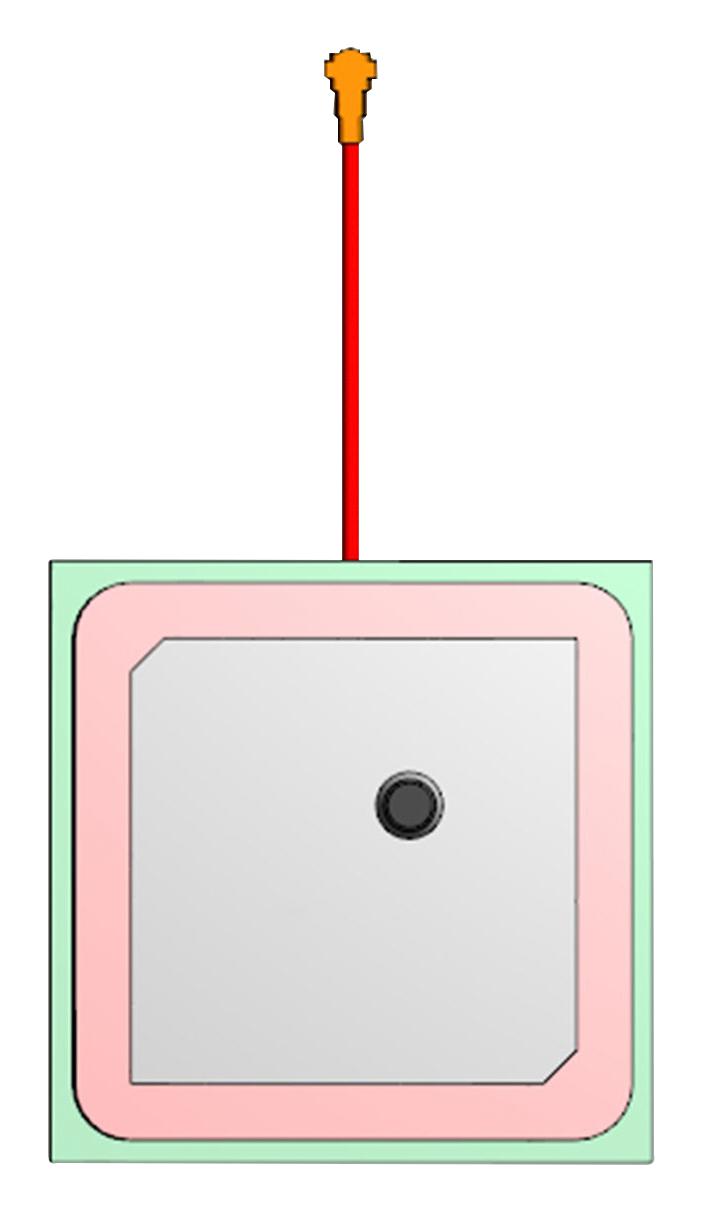

ABRACON APAGM2704AC2G GNSS Patch Antenna
The GNSS GPS GLONASS Active Patch Antenna is a compact, high-gain, circular polarization antenna measuring 27.0 x 27.0 x 9.6mm, designed for geolocation, navigation, IoT, and satellite synchronization. It features a robust RoHS compliance, low VSWR below 2, integrated high-gain LNA, and U.FL connector cable for easy integration. Operating within a frequency range around 1575.42 MHz for GPS and 1601.02 MHz for GLONASS, it offers excellent gain, radiation patterns, and efficiency suited for industrial, smart agriculture, and transportation applications.
ABRACON APAGM2704AC2G GNSS Patch Antenna Specifications:
- Dimensions: 27.0 x 27.0 x 9.6mm
- Frequency Range: 1575.42 MHz ±1.023 for GPS, 1601.02 MHz ±1.15 for GLONASS
- Gain: 4.5 dBic
- Polarization Model: Right Hand Circular Polarization (RHCP)
- VSWR: <2 at center frequency
- Impedance: 50 Ω
- Operating Temperature: -45°C to +85°C
- Material: Dielectric ceramics with FR4 PCB and tinplate shielding
- Connector: U.FL
- RF Cable Length: 40.1 mm
- Out-band Rejection: >30 dB at ±100 MHz
- Efficiency: 80.8% at 1575 MHz, 83.0% at 1602 MHz
- Radiation Patterns: Gain patterns in XZ and YZ planes
- Axial Ratio: 10.9 dB at 1602 MHz, 18.7 dB at 1575 MHz
- RoHS / RoHS II Compliant
- Electronics: Integrated high gain LNA, DC Voltage: 3.0-5.0V, Noise Figure: <1.5 dB
- Certification: RoHS compliant, MSL-N/A
Buy the Buy Abracon GNSS GPS GLONASS Active Patch Antenna Part Number APAGM2704AC2G Online
Purchase the Abracon GNSS Patch Antenna online today and experience superior GPS and GLONASS signal reception with high gain, circular polarization, and integrated low-noise amplifier. This compact, RoHS-compliant antenna is ideal for geolocation, IoT, and navigation applications across industrial, smart agriculture, and transportation sectors. Easy to install with U.FL connector and cable, it ensures accurate satellite synchronization, low VSWR, high efficiency, and excellent radiation patterns, making it the perfect choice for reliable global positioning and satellite communication needs.
Order your Abracon Series APAGM2704AC2G GNSS Active Patch Antenna today and enhance your geolocation and navigation projects with high reliability and performance.
Frequently Asked Questions
Where can I buy ABRACON APAGM2704AC2G?
You can click on the BUY or RFQ button to purchase APAGM2704AC2G from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAGM2704AC2G?
You can download the APAGM2704AC2G datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAGM2704AC2G?
ABRACON
