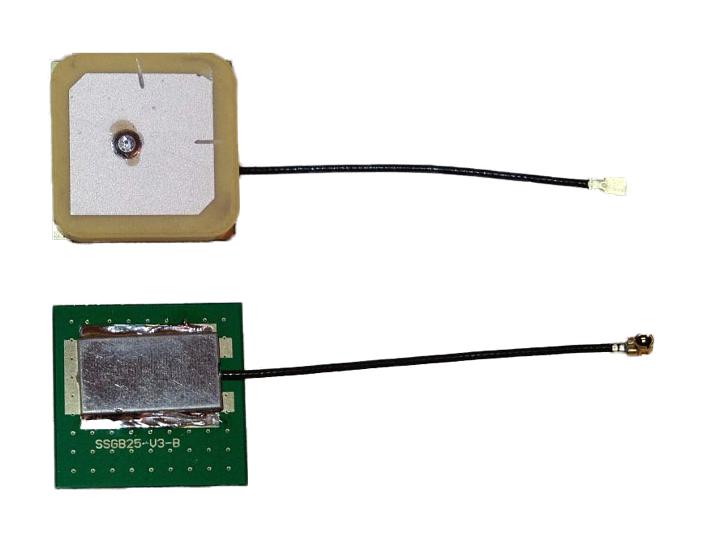

ABRACON APAKC2506ASG3 GNSS Patch Antenna
This compact multiband active GNSS patch antenna measures 25.0 by 25.0 by 6.9 mm and is suitable for GPS, GLONASS, Beidou, and Galileo applications. It features an integrated low noise amplifier with 32 dB gain, RHCP polarization, and a ceramic dielectric ground plane on FR4 PCB. The antenna operates within 1555 to 1615 MHz, has a VSWR of 1.5, and withstands temperatures from -40°C to +80°C. Suitable for IoT, surveying, and geofencing, it complies with RoHS standards for eco-friendliness.
ABRACON APAKC2506ASG3 GNSS Patch Antenna Specifications:
- Dimensions: 25.0 x 25.0 x 6.9 mm
- Frequency Range: 1555 ~ 1615 MHz
- LNA Gain: 32 dB
- VSWR: 1.5
- Polarization: RHCP
- Dielectric Material: Ceramics
- Ground Plane: PCB, FR4, 0.6 mm thick
- Cabling: 59 mm, RF OD 1.13 mm
- Connector: IPEX-II
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +85°C
- Frequency Temperature Coefficient: 20 ppm/°C
- Humidity Range: 10% to 95% RH
Buy the Abracon APAKC2506A-SG3 – Reliable Multiband GNSS Patch Antenna for Industrial Applications
Enhance your navigation and positioning systems with this high-quality multiband active GNSS patch antenna. Compact at 25x25 mm, it features integrated LNA with 32 dB gain, RHCP polarization, and ceramic dielectric ground plane on FR4 PCB. Operating from 1555 to 1615 MHz, it offers excellent performance with VSWR of 1.5 and withstands temperatures from -40°C to +80°C. Ideal for IoT, surveying, geofencing, and vehicle tracking, it complies with RoHS standards for safe, eco-friendly operation.
Buy Abracon APAKC2506A-SG3 now and experience unmatched reliability and performance for GPS, GLONASS, BeiDou, and Galileo positioning needs.
Frequently Asked Questions
Where can I buy ABRACON APAKC2506ASG3?
You can click on the BUY or RFQ button to purchase APAKC2506ASG3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAKC2506ASG3?
You can download the APAKC2506ASG3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAKC2506ASG3?
ABRACON
