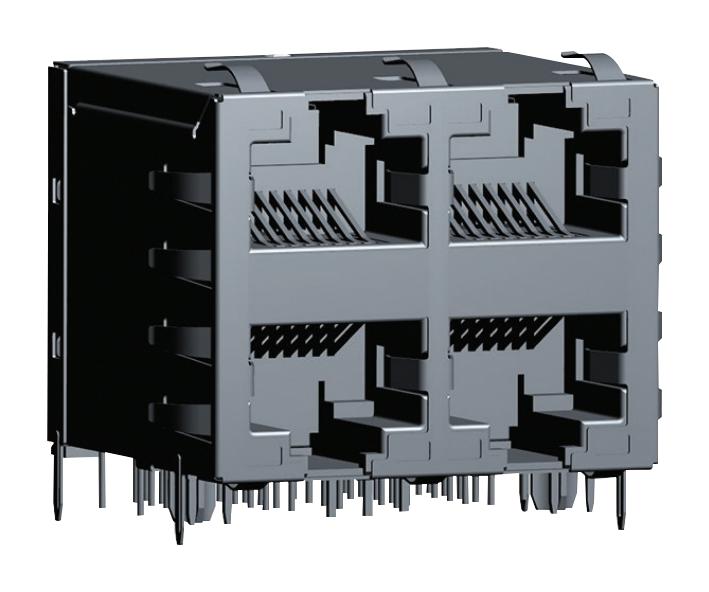

ABRACON ARJM22A1547ABEW2 Multiport Ethernet Module
The RJ45 2x2 Multiport Ethernet module supports 100/1000/2.5G/5G Base-T connectivity, making it ideal for high-speed network applications. Constructed with UL94V-0 PBT housing, gold-plated phosphor bronze contacts, and nickel-plated brass shields, it ensures durability and reliable connections. It features integrated magnetic components that comply with IEEE 802.3 standards for EMI suppression, making it suitable for servers, switches, routers, and structured cabling including CAT6 UTP. Its compact dimensions of 31.1 x 28.1 x 25.5 mm support versatile installation environments, with RoHS compliance and UL certification ensuring quality and safety.
ABRACON ARJM22A1547ABEW2 Multiport Ethernet Module Specifications:
- Dimensions: 31.1 x 28.1 x 25.5 mm
- Housing Material: PBT, UL94V-0
- Contact Material: Phosphor Bronze, Nickel and 100%Sn Plating
- Metal Shell: Brass, Nickel Plated
- Insert Material: PBT, UL94V-0
- LED Colors: Green (565nm), Yellow (585nm)
- LED Forward Voltage: Green 2.2V, Yellow 2.1V
- Wave Soldering Temperature: 265°C
- UL Certification Number: E503350
- RoHS/RoHS I Compliant
- Operating Temperature: -40°C to 85°C (optional)
- Inclusion of integrated magnetics for EMI suppression
- Supports 100Base-T, 1000Base-T, 2.5GBase-T, 5GBase-T Ethernet
- MSL Level: 1
- Housing made of UL94V-0 rated PBT with EMI fingers
- Contacts made from phosphor bronze for durability
- Gold Plated contacts for enhanced conductivity
- UL certification and RoHS compliant for safety and environmental standards
Buy the Buy Abracon RJ45 2x2 Multiport Ethernet Part Number ARJM22A1547ABEW2 Online
Order the Abracon Multiport Ethernet Module suitable for 100/1000/2.5G/5G applications. Designed with UL certified housing, gold-plated contacts, and integrated magnetic components for EMI suppression, ensuring high performance and durability. Its compact size of 31.1 x 28.1 x 25.5 mm allows versatile installation in servers, switches, and routers. With RoHS compliance and UL certification, it guarantees safety and environmental standards. Perfect for high-speed network infrastructure, this module supports various Ethernet standards for reliable, fast connectivity in demanding environments.
Get Abracon ARJM22A1547ABEW2 today—built for high-speed Ethernet, EMI suppression, and reliable network connections.
