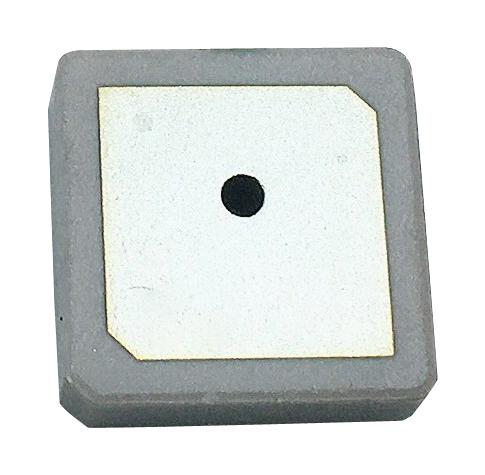

ABRACON APAKN1304C2GT GNSS Patch Antenna
This 1590 MHz GPS/Galileo + GLONASS ceramic patch antenna is ideal for wireless, IoT, and remote monitoring applications. With a compact size of 13mm by 13mm and a thickness of 4mm, it offers a gain of 2.6 dBi for GPS/Galileo and 2.4 dBi for GLONASS. The antenna features RHCP polarization and is RoHS compliant, suitable for use on a 70x70mm ground plane with optimized performance. It ensures reliable signal reception for modern GNSS-enabled devices in various environmental conditions.
ABRACON APAKN1304C2GT GNSS Patch Antenna Specifications:
- Frequency: GPS/Galileo 1575.42 MHz, GLONASS 1602 MHz
- Gain: GPS/Galileo 2.6 dBi, GLONASS 2.4 dBi
- Polarization: RHCP
- Dimensions: 13.0 x 13.0 x 4.0mm
- Material: Ceramic
- RoHS/RoHS II Compliant
- Application environment: on 70x70mm ground plane, performance affected by environment
- Return Loss: GPS/Galileo and GLONASS specific, approximately -25dB
- Operating Temperature: -20°C to +50°C
- Package: Vacuum sealed, 50 units per package base, total 2000 units per carton
- Reflow Soldering: Sn/Ag/Cu 96.5/3.0/0.5 with recommended profile
Buy the Abracon APAKN1304C2GT – Reliable GNSS Patch Antenna for Industrial Applications
Enhance your GNSS-enabled devices with Abracon's compact 1590 MHz GPS/Galileo and GLONASS ceramic patch antenna. Designed for IoT, remote monitoring, and M2M applications, this antenna offers a gain of 2.6 dBi for GPS/Galileo and 2.4 dBi for GLONASS, ensuring precise location tracking. Its small form factor of 13mm x 13mm x 4mm makes integration seamless into various equipment. RoHS compliant and reliable, it supports robust performance on 70x70mm ground planes, ideal for modern wireless systems.
Buy Abracon APAKN1304C2GT now and experience unmatched reliability and performance in GPS/Galileo and GLONASS applications.
Frequently Asked Questions
Where can I buy ABRACON APAKN1304C2GT?
You can click on the BUY or RFQ button to purchase APAKN1304C2GT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAKN1304C2GT?
You can download the APAKN1304C2GT datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAKN1304C2GT?
ABRACON
