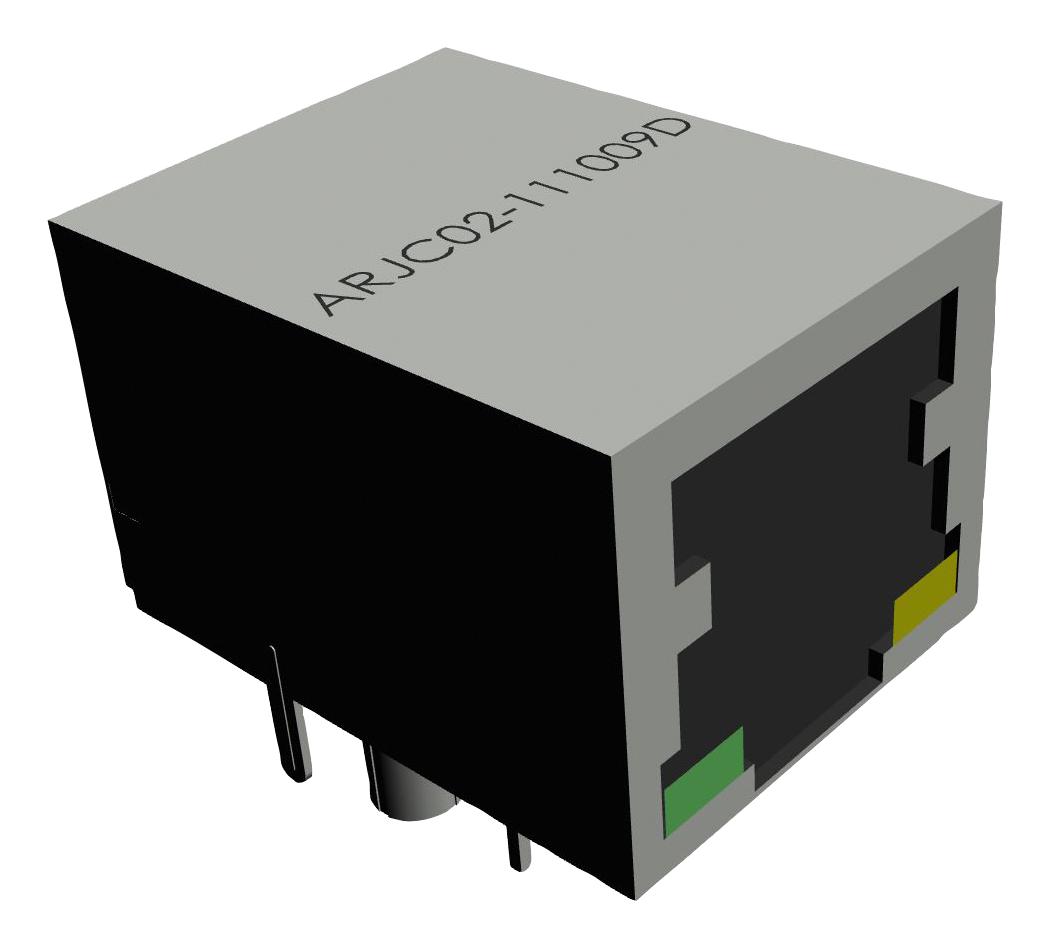

ABRACON ARJC02111009D Ethernet Tap Module
The 10/100 Base-Tx Tap Down RJ45 with LED is a high-performance network isolation component designed for 10/100Base-T applications. It provides signal conditioning, EMI suppression, and signal isolation, ensuring reliable data transmission in industrial and commercial networks. Compliant with IEEE802.3 standards, it features RoHS compliance, robust mechanical design, and high reliability, capable of withstanding up to 750 mating cycles. The device includes LED indicators for status monitoring and is optimized for maximum EMI suppression, making it suitable for professional Ethernet network installations.
ABRACON ARJC02111009D Ethernet Tap Module Specifications:
- RoHS/RoHS I Compliant
- Dimensions: 16.0 x 13.55 x 21.1mm
- Operating temperature range: 0°C to +70°C
- Storage temperature range: -25°C to +85°C
- Turn Ratio (+3%) Tx and Rx
- Inductance @ 100kHz/0.1V@8mA: 350uH minimum OCL
- Insertion Loss @ 1-100MHz: specified range
- Crosstalk @ 1-100MHz: minimized for EMI suppression
- Hipot voltage: 1500Vrms/1mA/1s
- Capacitor: 1000pF + 25% 2KV
- Resistance: 750Ω + 20%
- Coil Resistance: 1.80Ω max, 0.250Ω min
- LED indicators: Green/Left and Yellow/Right
- Mating cycles: 750
- Packaging: 100 pcs per tray
Buy the Abracon ARJC02-111009D – Reliable Ethernet Tap for Industrial Applications
Experience high reliability with the Ethernet Tap Module featuring LED indicators for seamless status monitoring. Designed to meet 10/100Base-T standards, it ensures optimal signal isolation, EMI suppression, and signal conditioning for industrial Ethernet setups. Compact and RoHS compliant, this device provides up to 750 mating cycles with robust mechanical durability. Ideal for professional networking environments where maintaining signal integrity is critical. Buy online today for dependable, high-performance network connections with easy installation and long-lasting operation.
Get Abracon ARJC02-111009D today—designed for maximum EMI suppression and signal integrity in industrial Ethernet networks.
