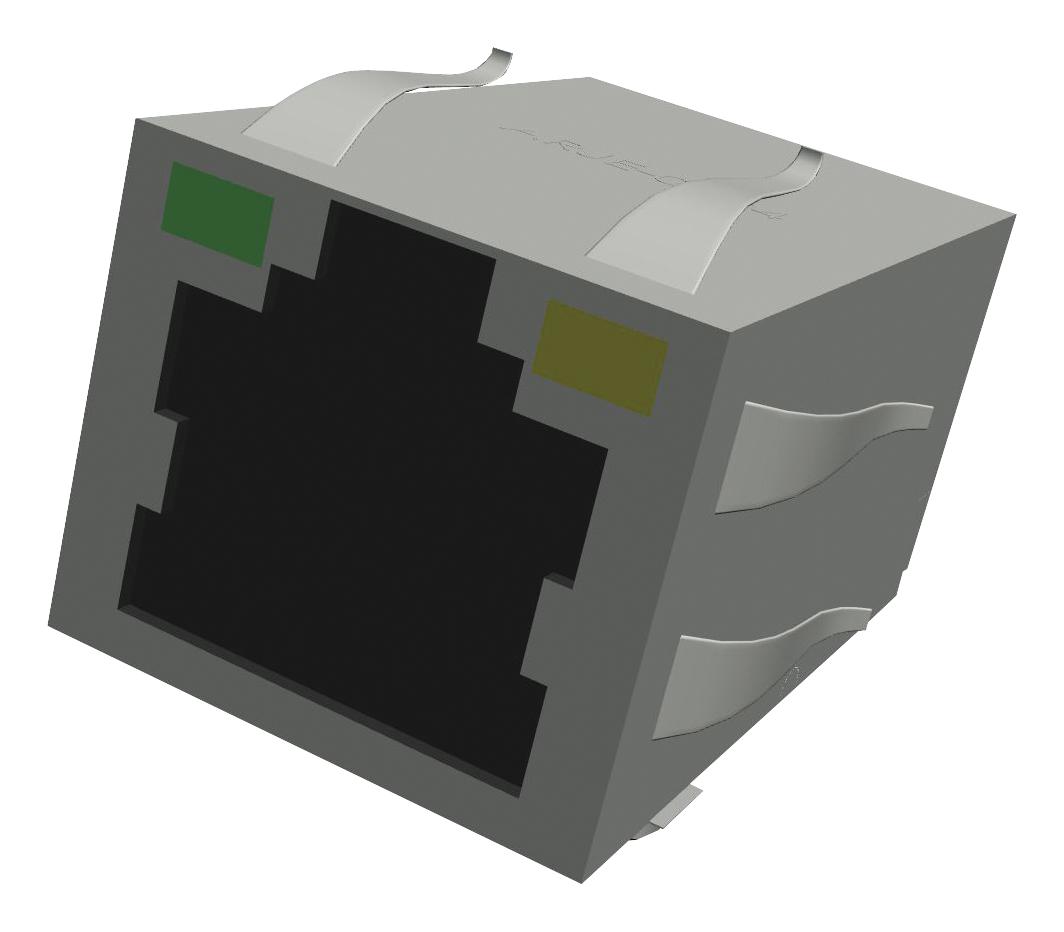

ABRACON ARJE0034 Ethernet Module
The RJ45 single port tap up SMD module supports 100 Base-T Ethernet applications, including set-top boxes and network interface cards. It features high EMI suppression, signal conditioning, and signal isolation, with a minimum inductance of 350uH at 100kHz, providing reliable network connectivity. Designed for durability, it withstands 750 mating cycles and has RoHS compliance. Its compact dimensions of 16.10 x 13.87 x 25.68mm make it suitable for space-constrained industrial and networking environments. It offers excellent electrical performance with low insertion and return loss, ensuring quality data transmission in demanding settings.
ABRACON ARJE0034 Ethernet Module Specifications:
- Dimensions: 16.10 x 13.87 x 25.68mm
- Moisture Sensitivity Level: 1
- RoHS/RoHS II Compliant
- Operating Temperature Range: 0°C to 70°C
- Storage Temperature Range: -40°C to 85°C
- Turn Ratio: 1CT:1CT (±3%)
- Inductance: 350uH at 100kHz, 0.1 Vrms, 8mA bias current
- Insertion Loss: 0.1-100MHz
- Return Loss: -13.5dB (60-80MHz)
- Crosstalk: -30.0dB (0.1-100MHz)
- CMRR: -30.0dB (0.1-100MHz)
- Maximum Voltage: 1500Vrms Pri to Sec
- Reflow Profile compatible
- Material: PET packaging, tin plated finish options
- Reel containing 110 pieces, MOQ 2750 pieces
Buy the Abracon ARJE-0034 – Reliable Ethernet Tap for Industrial Applications
Order the Abracon ARJE-0034 Ethernet module online for dependable 100 Base-T network performance in industrial settings. With high EMI suppression, signal conditioning, and robust construction, this compact SMD device ensures reliable data transfer. Its high cycle durability of 750 mating cycles and RoHS compliance make it suitable for demanding applications. Packed in sealed moisture barrier bags, it guarantees optimal performance from storage to deployment. Purchase now to enhance your networking infrastructure with proven reliability, quality, and ease of installation—available at leading distributors for quick delivery.
Get Abracon ARJE-0034 today—built for high durability and reliable network interfacing in industrial environments.
Frequently Asked Questions
Where can I buy ABRACON ARJE0034?
You can click on the BUY or RFQ button to purchase ARJE0034 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJE0034?
You can download the ARJE0034 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJE0034?
ABRACON
