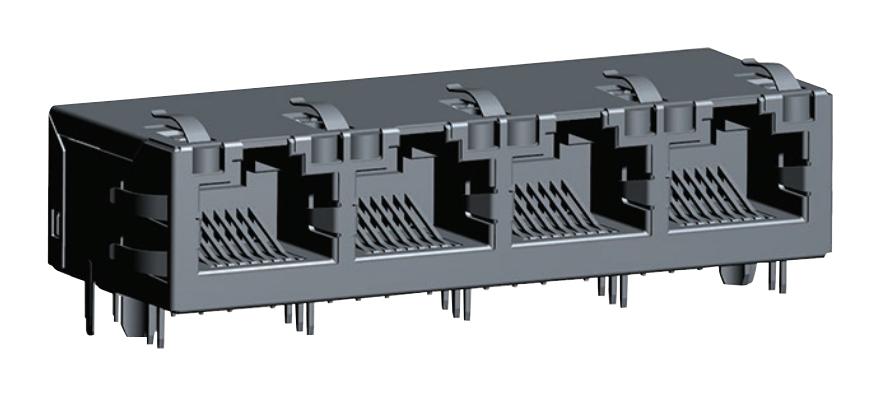

ABRACON ARJM14A1009NNEW2 Ethernet Multiport Module
The RJ45 1x4 Multiport Ethernet module offers versatile connectivity supporting 100/1000/2.5G and 5G Base-T standards. Encased in durable PBT housing with options for EMI fingers and LED indicators, it ensures reliable performance in industrial and networking environments. Certified for UL E503350 and RoHS compliance, the module features precise dimensions of 59.1 x 21.3 x 13.8 mm, suitable for server, switch, router, and surveillance applications. It includes high-performance integrated magnetics for EMI suppression and supports extended operating temperatures from -40°C to 85°C, ensuring durability in rigorous conditions.
ABRACON ARJM14A1009NNEW2 Ethernet Multiport Module Specifications:
- Dimensions: 59.1 x 21.3 x 13.8 mm
- Housing Material: PBT, UL94V-0
- Connector: RJ45 with optional LED indicators
- Supported Ethernet Standards: 100/1000/2.5G/5G Base-T
- Certification: UL E503350, RoHS/RoHS II Compliant
- Operating Temperature: -40°C to 85°C
- Magnetics: Integrated for EMI suppression
- Contact Material: Phosphor Bronze with Nickel and Sn Plating
- Metal Shell: Brass with Nickel Plating
- Front pin count options: 8, 10 Pins with or without LED
- Land Pattern: Compatible with surface-mount PCB design
- Wave Soldering Profile: 260°C for 4 seconds
- Material: Housing and insert made of PBT, UL94V-0, with precise mechanical dimensions
- Packaging: Suitable for automated assembly, MSL=1
Buy the Abracon Series RJ45 Ethernet Multiport: ARJM14A1009NNEW2
Secure your network expansion today by purchasing the Abracon Ethernet Multiport Module online. Designed for industrial and enterprise applications, it supports multiple Ethernet speeds including 2.5G and 5G with UL and RoHS certification. Its durable construction and integrated magnetics provide EMI suppression and reliable operation in temperature ranges from -40°C to 85°C. Easy to mount with surface-mount PCB compatible land pattern, this module ensures high-performance connectivity in servers, switches, routers, and surveillance systems. Get yours now for seamless network performance.
Buy Abracon ARJM14A1009NNEW2 now and experience unmatched reliability and high-speed connectivity for industrial networking.
Frequently Asked Questions
Where can I buy ABRACON ARJM14A1009NNEW2?
You can click on the BUY or RFQ button to purchase ARJM14A1009NNEW2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJM14A1009NNEW2?
You can download the ARJM14A1009NNEW2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJM14A1009NNEW2?
ABRACON
