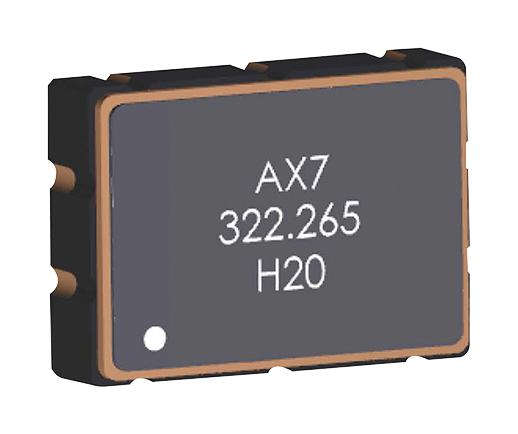

ABRACON AX7DAF13125000C Crystal Oscillator
The power-optimized crystal oscillator supports frequency stability of ±50ppm over -20°C to 70°C, operates on 3.3V power supply, and covers a frequency range from 50 to 2100MHz. It features industry-standard 5x7mm footprint, low jitter of 0.12ps, and compatibility with LVPECL, LVDS, HCSL, and CML interfaces. Suitable for networking, RF systems, base stations, and high-speed data transmission, it has RoHS compliance and is suitable for applications requiring reliable, low power consumption oscillators with stable frequency over temperature variations.
ABRACON AX7DAF13125000C Crystal Oscillator Specifications:
- Footprint: 5x7mm industry standard
- Size: 7.0x5.0x1.8mm
- Power Supply Voltage: 3.3V or 1.8V options
- Frequency Range: 50-2100MHz
- Frequency Stability: ±50ppm over -20°C to 70°C or -40°C to 85°C depending on option
- Jitter: 0.12ps typical
- Interfaces Supported: LVPECL, LVDS, HCSL, CML
- Rise/Fall Time: <20% to 80% waveform
- Output Voltage Levels: VOH near VDD, VOL near GND
- RoHS/RoHS II Compliant
- ESD Sensitive, MSL 1
- Storage Temperature Range: -55°C to +105°C
- Operational Temperature Range: -20°C to 70°C or -40°C to 85°C depending on option
- Test and measurement suitability, support for critical timing applications
Buy the Abracon AX7DAF13125000C – Reliable Crystal Oscillator for High-Speed Communications
Order the Abracon AX7DAF13125000C crystal oscillator today for robust performance in networking, RF, and measurement applications. With a compact 5x7mm footprint, low jitter of 0.12ps, and broad frequency support from 50 to 2100MHz, this oscillator ensures precise timing and stability across temperatures. Its RoHS compliance and low power consumption make it ideal for high-speed data transfer, base stations, and RF systems. Benefit from reliable, industry-standard features and fast online purchasing options today.
Buy Abracon AX7DAF13125000C now and experience unmatched reliability, low jitter, and stable performance in your high-speed electronic and RF systems.
Frequently Asked Questions
Where can I buy ABRACON AX7DAF13125000C?
You can click on the BUY or RFQ button to purchase AX7DAF13125000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX7DAF13125000C?
You can download the AX7DAF13125000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX7DAF13125000C?
ABRACON
