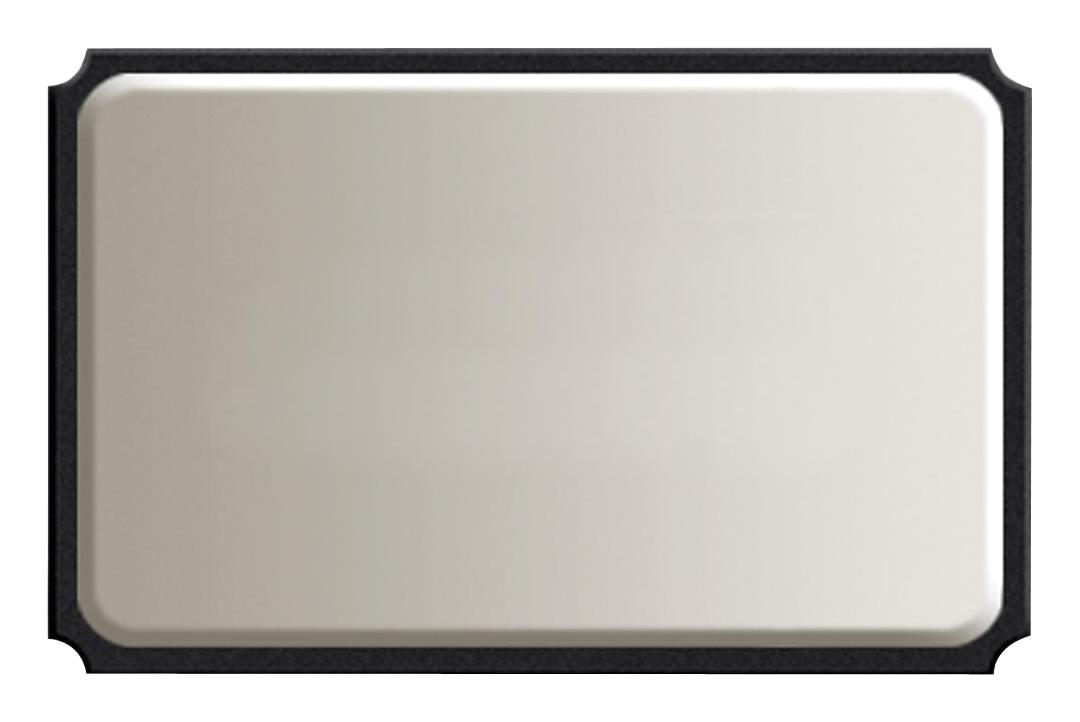

ABRACON ASA16000MHZLT HCMOS Crystal Clock Oscillator
The ABRACON ASA series is a family of HCMOS crystal clock oscillators designed for a wide range of applications, including portable electronics, mobile communication devices, and computer peripherals. These oscillators feature a compact 2.0 x 1.6 x 0.7mm footprint, RoHS compliance, and a seam-sealed package for enhanced reliability. The tri-state function allows for flexible integration into various circuit designs. Suitable for high-density SMT, the ASA series offers a stable and reliable clock source for demanding applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property.
ABRACON ASA16000MHZLT HCMOS Crystal Clock Oscillator Specifications:
- Frequency Range: 1.0 - 80 MHz
- Operating Temperature: -10 to +60 °C
- Storage Temperature: -40 to +85 °C
- Overall Frequency Stability: -50 to +50 ppm
- Supply Voltage (Vdd) - Option 1 (CMOS): 2.25 to 2.75 V
- Supply Voltage (Vdd) - Option 2 (CMOS): 1.62 to 1.98 V
- Supply Current (Idd) @ 1MHz - Vdd = 3.3 V: 2.0 - 5.0 mA
- Supply Current (Idd) @ 20MHz - Vdd = 3.3 V: 3.0 - 10.0 mA
- Supply Current (Idd) @ 50MHz - Vdd = 3.3 V: 4.0 - 10.0 mA
- Supply Current (Idd) @ 80MHz - Vdd = 3.3 V: 7.0 - 15.0 mA
- Supply Current (Idd) @ 1MHz - Vdd = 2.5 V: 2.0 - 5.0 mA
- Supply Current (Idd) @ 20MHz - Vdd = 2.5 V: 3.0 - 10.0 mA
- Supply Current (Idd) @ 50MHz - Vdd = 2.5 V: 5.0 - 10.0 mA
- Supply Current (Idd) @ 80MHz - Vdd = 2.5 V: 7.0 - 15.0 mA
- Supply Current (Idd) @ 1MHz - Vdd = 1.8 V: 1.5 - 5.0 mA
- Supply Current (Idd) @ 20MHz - Vdd = 1.8 V: 2.5 - 5.0 mA
- Supply Current (Idd) @ 50MHz - Vdd = 1.8 V: 4.0 - 10.0 mA
- Output Load: 15 pF
- Output Voltage (CMOS) - VOH: 0.9 * Vdd
- Output Voltage (CMOS) - VOL: 0.1 * Vdd
- Output Voltage (TTL) - VOH: 2.4 V
- Output Voltage (TTL) - VOL: 0.4 V
- Tri-state Function: VIH ≥ 0.7 * Vdd or Open: Oscillation, VIH < 0.3 * Vdd: Hi Z
- Aging: -3.0 to +3.0 ppm @ +25 °C (First year)
- Symmetry @ 1/2 Vdd: 40-60%
- Start-up Time: ≤ 10.0 ms
- Rise/Fall Time: ≤ 10.0 ns
