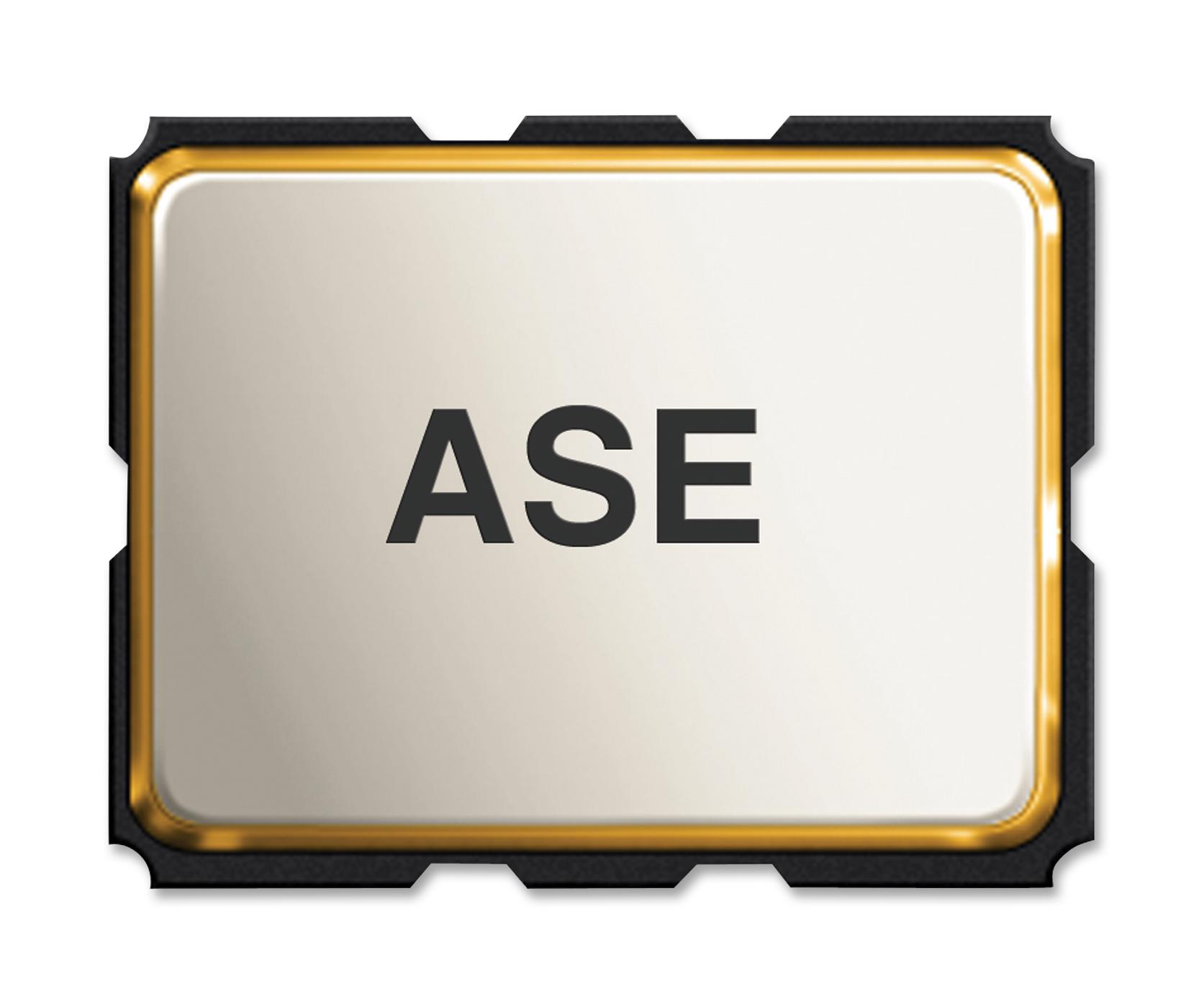

ABRACON ASE18432MHZLCT CMOS Oscillator
The ASE Series CMOS compatible SMD crystal oscillator measures 3.2 x 2.5mm with a height of 1.2mm, offering frequency stability from 0.625MHz to 200MHz. It features low power consumption, with standby currents as low as 10 pA, and operates within a temperature range of -10°C to +70°C. Suitable for applications like CCD clocks, PC connected equipment, wireless communication, laptops, and SSDs, it offers RoHS compliance, MSL Level 1, and optional stability enhancements. Its high-frequency stability ensures reliable performance in compact electronic designs.
ABRACON ASE18432MHZLCT CMOS Oscillator Specifications:
- Dimensions: 3.2 x 2.5 x 1.2mm
- Frequency Range: 0.625MHz to 200MHz
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -55°C to +125°C
- Supply Voltage: +3.3V
- Supply Current: 10 pA to 74 mA depending on frequency
- Jitter: Peak to Peak 28 ps, RMS 3.2 ps
- Startup Time: 1-2 ms
- Frequency Stability: ±100 ppm
- RoHS Compliant, MSL Level 1
- PTC and stability options available
- Suitable for CCD clock, PC peripherals, wireless, laptops, SSDs
- RoHS and RoHS II compliant, suitable for commercial and industrial applications
Buy the Abracon Series ASE 3.3V CMOS Oscillator: ASE18432MHZLCT
Purchase the Abracon Series ASE 3.3V CMOS Oscillator online today and ensure your devices operate with reliable, precise timing. This compact oscillator, measuring 3.2x2.5mm with a height of only 1.2mm, offers wide frequency support up to 200MHz, low power consumption, and excellent stability. It’s ideal for integrating into CCD cameras, communication modules, laptops, and SSDs. RoHS compliance and optional stability features make it suitable for demanding electronic applications. Buy online now for fast delivery and superior performance.
Order your Abracon Series ASE 3.3V CMOS Oscillator today and give your electronic projects the dependable and compact timing solution they need.
