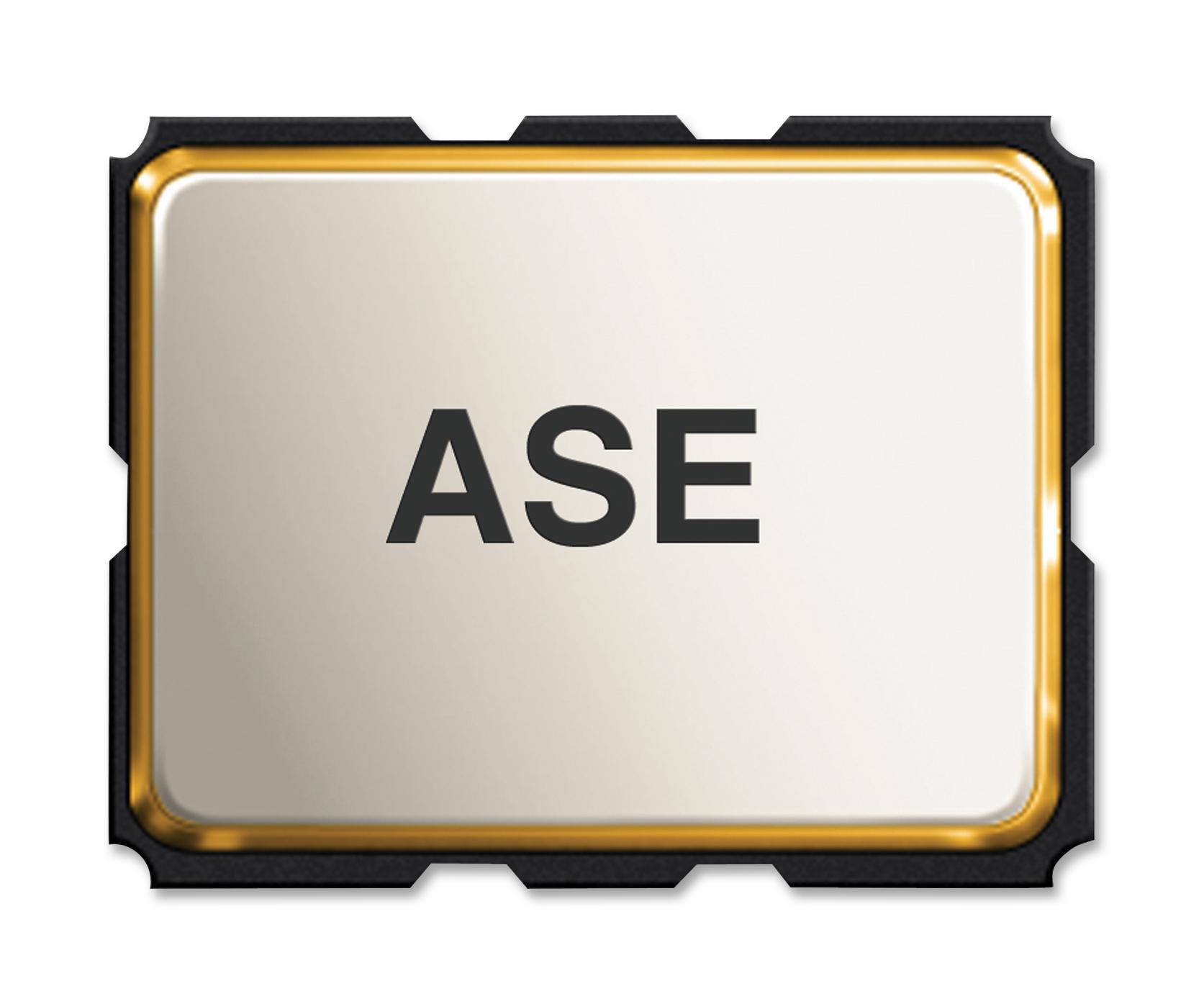

ABRACON ASE40000MHZET SMD Crystal Oscillator
The ASE Series 3.3V CMOS compatible SMD crystal oscillator measures 3.2 x 2.5mm with a height of 1.2mm, offering low power consumption and stable frequency output suitable for diverse electronic applications. It operates between 0.625MHz and 200MHz, with excellent stability, low RMS jitter, and RoHS compliance. Designed for applications like CCD clock for VTR cameras, PCs, PDAs, wireless communication, laptops, and SSDs, it supports RoHS reflow processes, with optional stable frequency variants for critical systems.
ABRACON ASE40000MHZET SMD Crystal Oscillator Specifications:
- Frequency Range: 0.625 MHz to 200 MHz
- Supply Voltage: +3.135 to +3.465 V
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -55°C to +125°C
- Overall Frequency Stability: ±100 ppm
- Supply Current: 12.7 to 30 mA depending on frequency
- Jitter: RMS jitter 3.2 ps, Peak-to-peak jitter 28 ps
- Output Load: 15 pF CMOS
- Output Voltage: VOH 0.9*Vdd, VOL 0.1*Vdd
- Rise and Fall Time: 15 to 23 ns depending on frequency
- Startup Time: 1 to 2 ms
- RoHS and RoHS II Compliant, MSL Level 1
- Package Dimensions: 3.2 x 2.5 x 1.2 mm
- Suitable for RoHS reflow and critical stability options
Buy the Buy Abracon ASE Series 3.3V CMOS Compatible SMD Crystal Oscillator Part Number ASE40000MHZET Online
Purchase the Abracon ASE Series 3.2x2.5mm SMD crystal oscillator online today and enjoy fast delivery, competitive pricing, and dependable performance for your electronic applications. Designed for stability, low jitter, and RoHS compliance, this oscillator supports a broad frequency range from 0.625MHz to 200MHz, making it ideal for communication devices, PC peripherals, and industrial equipment. Its compact size and low power consumption ensure seamless integration into demanding systems, delivering precision timing and reliable operation every time.
Order your Abracon ASE40000MHZET series crystal oscillator today and ensure your projects benefit from reliable, low jitter, high-stability performance.
