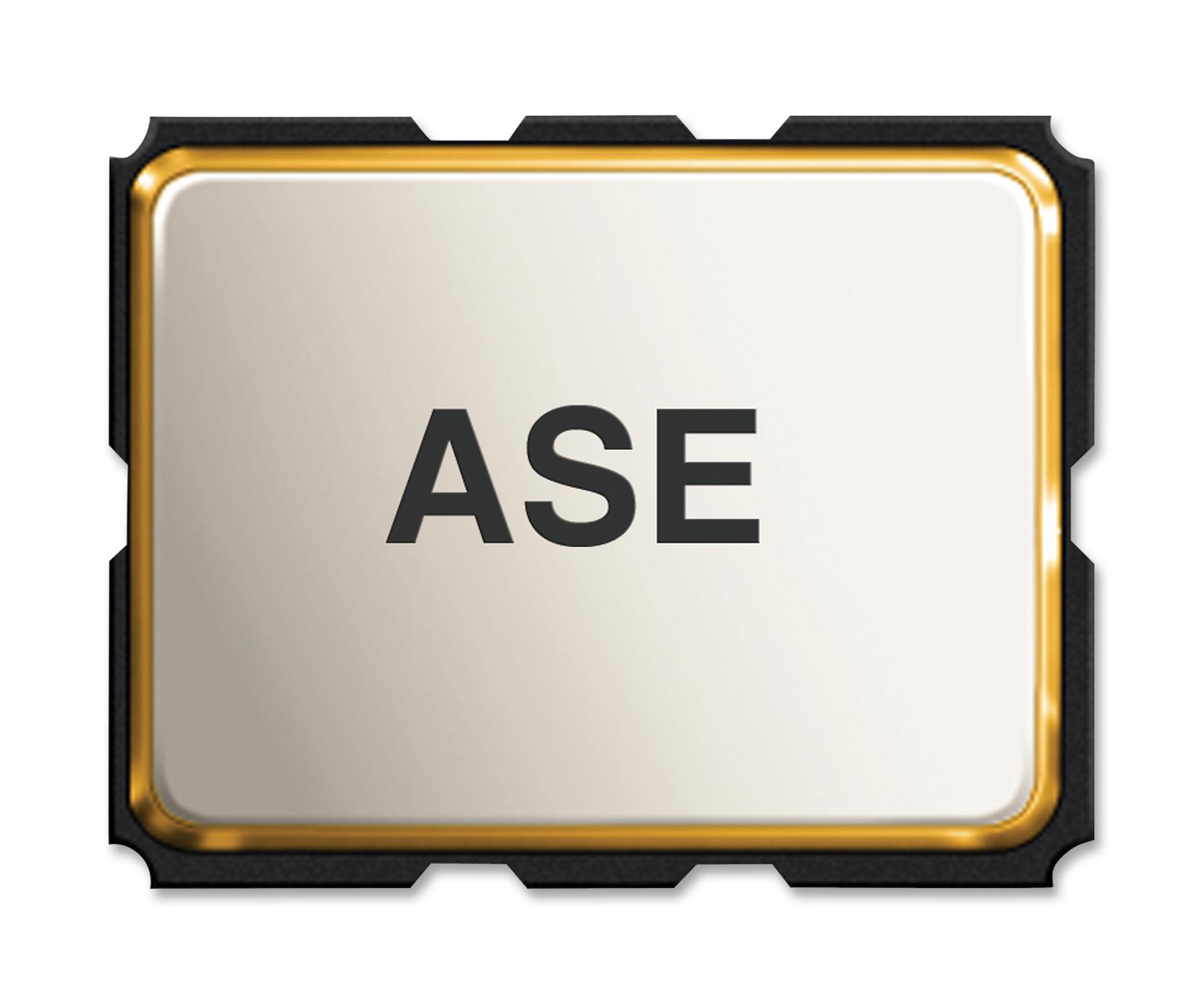

ABRACON ASE50000MHZET Crystal Oscillator
This high-precision 3.3V CMOS compatible SMD crystal oscillator operates within a frequency range of 0.625 MHz to 200 MHz, featuring low height (1.2mm), ultra-low power consumption (30mA at 200MHz), and RoHS compliance. Designed for compact applications, it offers excellent stability, low jitter, and stable performance for use in CCD clock modules, PC-connected equipment, wireless devices, and SSDs. The device features tri-state function, fast startup time, and is suitable for demanding industrial environments with a maximum operating temperature of 70°C.
ABRACON ASE50000MHZET Crystal Oscillator Specifications:
- Frequency Range: 0.625 MHz to 200 MHz
- Supply Voltage: +3.3 V
- Supply Current: 12.7 to 74 mA depending on frequency
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -55°C to +125°C
- Overall Frequency Stability: ±100 ppm
- Output Load: 15 pF CMOS
- Output Voltage: VOH 0.9*Vdd, VOL 0.1*Vdd
- Rise and Fall Time: 15-23 ns depending on frequency
- Startup Time: 1-2 ms
- Tri-state function available for standby mode
- Dimensions: 3.2 x 2.5 x 1.2 mm
- RoHS/RoHS II compliant, MSL Level 1
- Recommended land pattern with ~0.01uF bypass capacitor
Buy the Abracon ASE50000MHZET – Reliable Crystal Oscillator for Industrial Applications
Purchase the Abracon ASE50000MHZET crystal oscillator online today and benefit from a compact, low-power, high-stability device perfect for industrial, communication, and computing applications. With RoHS compliance, fast startup time, and tri-state functionality, this oscillator ensures precise frequency control in your designs. Ideal for CCD clocks, PC-connected equipment, wireless devices, and SSDs, it offers excellent stability, low jitter, and reliable operation across a wide temperature range. Ensure your project’s success with this top-quality component available for immediate purchase online.
Buy Abracon ASE50000MHZET now and experience unmatched reliability and performance in your electronic projects and industrial applications.
Frequently Asked Questions
Where can I buy ABRACON ASE50000MHZET?
You can click on the BUY or RFQ button to purchase ASE50000MHZET from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASE50000MHZET?
You can download the ASE50000MHZET datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASE50000MHZET?
ABRACON
