A Premier B2B Part Search

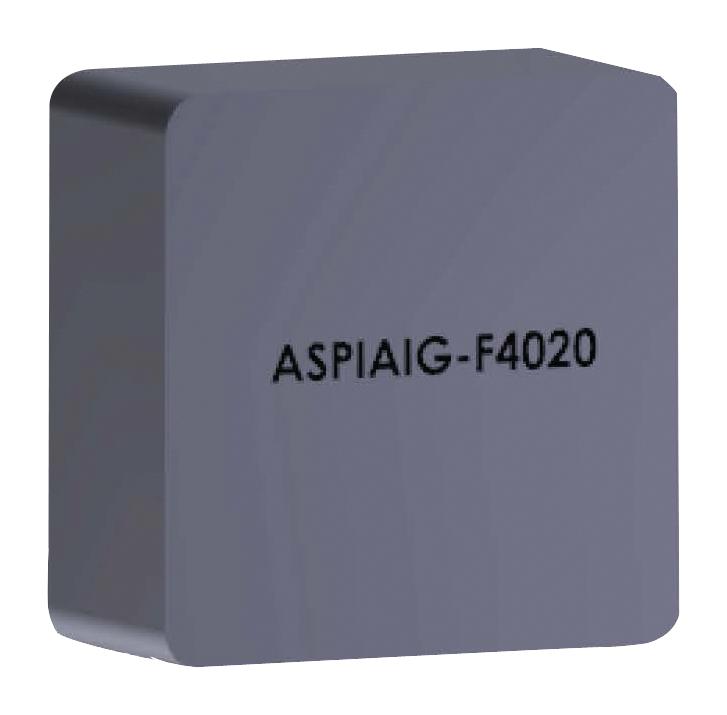

ABRACON ASPIAIGFLR40201R5MT High Current Shielded Power Inductor
The ASPIAIG-F series of high-current shielded SMD power inductors are designed for demanding applications such as DC/DC converters, FPGAs, servers, and solar inverters. These inductors support up to 36A current handling with very low DCR of only 1.75 milliohms, providing excellent efficiency and thermal performance. They feature RoHS compliance, are suitable for automotive and EV use, and have soft saturation characteristics. Various package sizes enable low-profile, high-current power supply designs for modular and space-constrained electronics.
ABRACON ASPIAIGFLR40201R5MT High Current Shielded Power Inductor Specifications:
- Dimensions vary depending on model, typically approximately 16.0 x 12.0 mm for larger sizes
- Operating temperature: -40°C to 125°C
- Storage temperature: -10°C to +40°C (including self-temperature rise), R.H. max 60%
- Inductance values: Ranging from 0.15 μH to 8.2 μH based on model
- Current handling capability: Up to 36A with low DCR of 1.75 mΩ
- RoHS and RoHS II compliant, RoHS certification supported
- Shielded construction to reduce EMI
- Soft saturation feature for high load conditions
- Package options support low profile designs for compact applications
- Support for automated pick-and-place manufacturing, MSL=1
- Supported in various package sizes supporting surface mounting
- Reflow soldering: Preheat 150°C - 180°C, peak 245°C for 5 seconds MAX
- Certification: AEC-Q200 qualified, TS16949 and PPAP supported
- Application: DC/DC power modules, FPGA voltage regulation, server VRMs, solar power systems, automotive electronics, high current POL converters
Buy the Buy Abracon High Current Shielded Power Inductor Part Number ASPIAIGFLR40201R5 Online
Purchase the Abracon high current shielded power inductor model ASPIAIG-F4020-1R5 online today and experience high efficiency for demanding power applications. These inductors support currents up to 36A with very low DCR, making them perfect for DC/DC converters, FPGA power modules, and server VRMs. Their shielded construction reduces EMI, and they meet RoHS, TS16949, and AEC-Q200 standards. Designed for space-constrained applications, they provide excellent thermal and electrical performance, ensuring reliable operation in automotive, industrial, and solar systems. Buy now for quality and performance.
Order your Abracon SeriesASPIAIG-F4020-1R5 high current shielded power inductor today and enhance your power supply designs with reliable, low-loss inductors.
Frequently Asked Questions
Where can I buy ABRACON ASPIAIGFLR40201R5MT?
You can click on the BUY or RFQ button to purchase ASPIAIGFLR40201R5MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASPIAIGFLR40201R5MT?
You can download the ASPIAIGFLR40201R5MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASPIAIGFLR40201R5MT?
ABRACON
